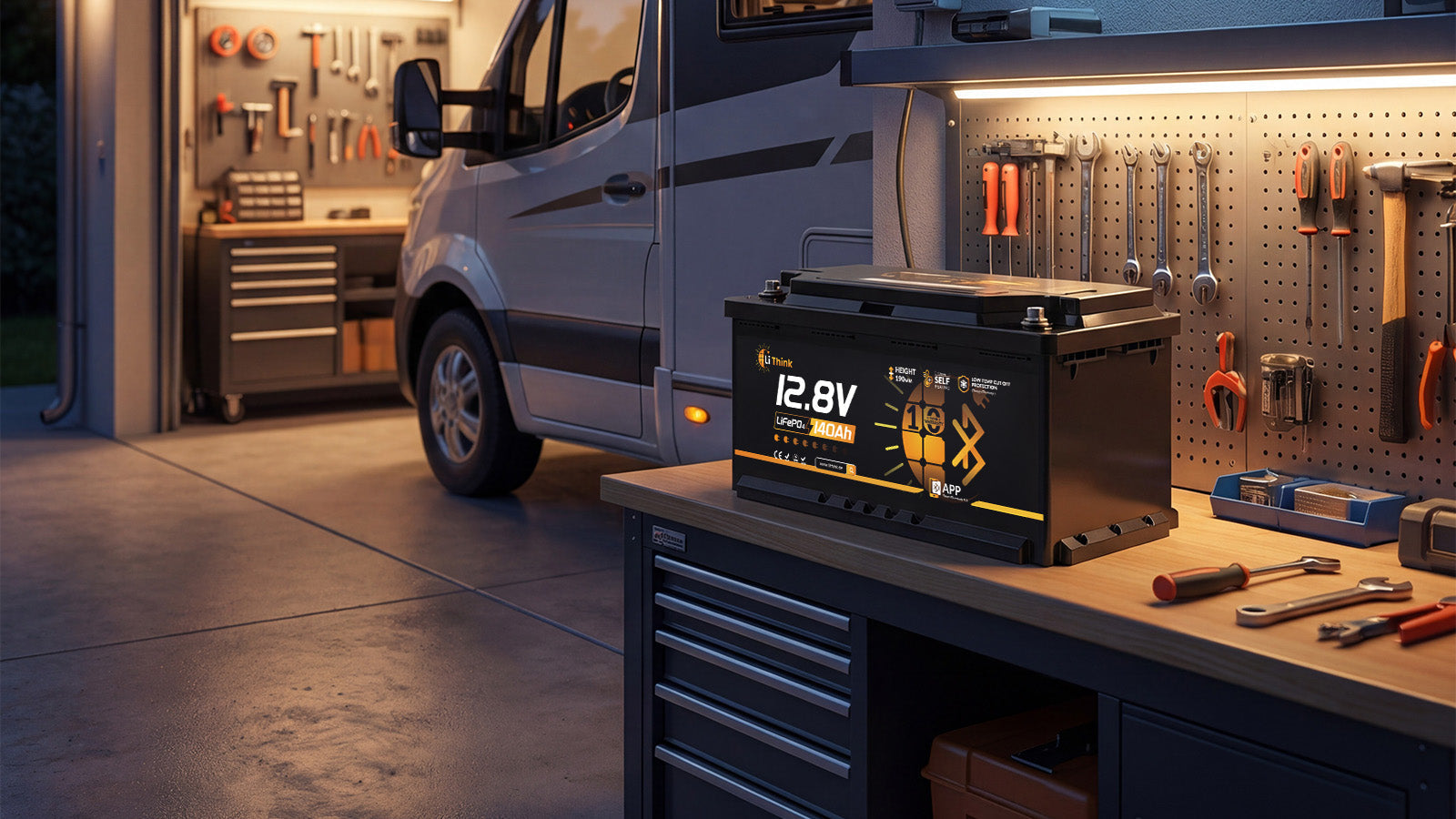

Common RV Battery System Configuration Mistakes

In practice, many RV users encounter different problems with the stability of their power system. Typical examples include: the inverter repeatedly triggers an alarm when starting high-power devices, the battery still shows remaining capacity but can no longer support the load, the system suddenly shuts down under high power demand, or charging efficiency is significantly below expectations.

From a system engineering perspective, an RV power system consists of several key factors, including the battery, inverter, charger, solar controller, cables, protection components, and loads. If these components are not properly designed and matched, the overall system may operate unstably — even if the battery itself offers good performance.

Basic Principle of Stability in the RV Electrical System

When choosing an RV battery, capacity is often the most intuitive parameter. Values such as 100 Ah, 200 Ah, or 300 Ah are usually understood as indicating how much energy can be stored and how long the system can operate.

In real power systems, however, capacity is only one of many parameters. System stability is also closely related to the following factors:

In a low-voltage system, for example, the input current increases significantly when inverter power is high. If the battery does not have sufficient continuous discharge capability or the cables are not designed for this current, voltage drops, alarms, or protection shutdowns may occur.

That is why an RV power system should always be planned holistically instead of focusing only on battery capacity.

Mistake 1: Underestimating Continuous Discharge Capability

Many RV users first focus on capacity when choosing a battery, such as 100 Ah or 280 Ah. In reality, however, many RV loads do not run continuously at low power, but instead create short-term high power demands.

Typical high-power loads include:

Very high current peaks can occur especially when such devices are switched on. If the battery cannot deliver enough continuous discharge current or the BMS limits discharge, the load may not be supplied stably despite large capacity.

For example, in a 12 V system with an inverter output of 2000 W, the current on the battery side can be close to 170 A. If the battery’s continuous discharge capability is insufficient, the system may trigger overcurrent protection or experience a significant voltage drop.

Therefore, when selecting a LiFePO4 battery for RVs, users should always consider not only Ah values, but also discharge capability and maximum system load.

Mistake 2: Inverter Power and Battery System Are Not Properly Matched

In an RV energy system, the choice of inverter directly affects the current demand of the entire system. Many users install very powerful inverters, such as 3000 W or more, in order to run more household appliances in parallel.

However, if the battery, cables, and protection components are not upgraded at the same time, system stability suffers.

If the battery cannot provide enough continuous current or the cables are undersized, the following problems may occur:

In a proper system design for RVs, the inverter’s power demand must be matched to battery discharge, cable cross-section, and protection components so that all parts can safely carry the maximum current together.

Mistake 3: Ignoring Cable Cross-Section and Voltage Drop

Cable cross-section is one of the most important but often most neglected factors in a power system. At high currents, cable resistance causes voltage drop. If the cable cross-section is too small or the cable run is too long, this problem becomes much more serious.

Excessive voltage drop can have the following effects:

Terminals, busbars, and connection quality also affect system performance. Loose terminals or poor contact surfaces increase local resistance and further amplify voltage drop.

Therefore, in an RV power system, cable cross-section, cable length, and connection quality should always be designed according to the maximum current.

Mistake 4: Multiple Batteries Are Connected in Parallel Improperly

When the capacity of a single battery is not sufficient, multiple batteries are often connected in parallel to increase total capacity. Technically, this is possible — if the parallel connection is implemented properly. If not, current distribution can become unbalanced.

Typical differences between individual batteries include:

As a result, a larger share of the current flows preferentially through one battery during operation. This can lead to the following problems:

To ensure a stable parallel connection of LiFePO4 batteries, cable lengths should be as identical as possible and the initial voltages of the batteries should be very close before connection.

Mistake 5: Continuing to Use Lead-Acid Charging Profiles

Many users switch from lead-acid to LiFePO4 batteries but do not adjust solar controllers, DC-DC chargers, or mains chargers. This is exactly where a common configuration mistake occurs.

Lead-acid and lithium batteries differ significantly in their charging curves:

If old lead-acid settings continue to be used after the upgrade, this can lead to the following problems:

After upgrading to lithium, all chargers should therefore be checked and — where possible — set to a LiFePO4 mode or suitable parameters.

Mistake 6: Ignoring Charging Limits at Low Temperatures

Behavior at low temperatures is a key challenge for RV power systems. Especially with LiFePO4 batteries, charging in cold conditions is a critical point.

If charging continues at low temperature, the internal structure of the battery may be affected. That is why most LiFePO4 systems use the BMS to implement charging limits at low temperatures.

Users who do not take winter operating conditions into account may encounter the following problems:

For users who regularly use their RV in cold regions, a battery system with low-temperature protection or a self-heating function is much better suited for winter operation.

Mistake 7: Protection Coordination and Distribution Architecture Are Not Rechecked After the Upgrade

If the power system is upgraded but the existing distribution structure is carried over unchanged, protection coordination can fall out of balance. Protection coordination means that fuses and switches trip in the intended sequence during overload, short circuit, or local faults, so that disturbances remain locally limited and the entire system does not fail.

In smaller original systems, busbars, main switches, or circuit protection components were often designed only for lower continuous currents. When larger battery capacities or additional parallel batteries are then installed, significantly more current is available in a fault condition and for a longer period. As a result, old components can be exposed to much higher thermal and electrodynamic stresses.

If the current-carrying capacity, breaking capacity, or temperature behavior of these components is not rechecked, the system’s safety margin decreases significantly.

After upgrading an RV battery system, the following points should therefore be reassessed:

Only when increased storage capacity and optimized protection architecture are considered together will the RV power system remain truly stable and safe under higher loads, longer runtime, and abnormal operating conditions.
