Product Comparison | Compare LiFePO₄ Batteries & Chargers

Battery comparison

Find the deep cycle LiFePO4 battery that best suits your needs.

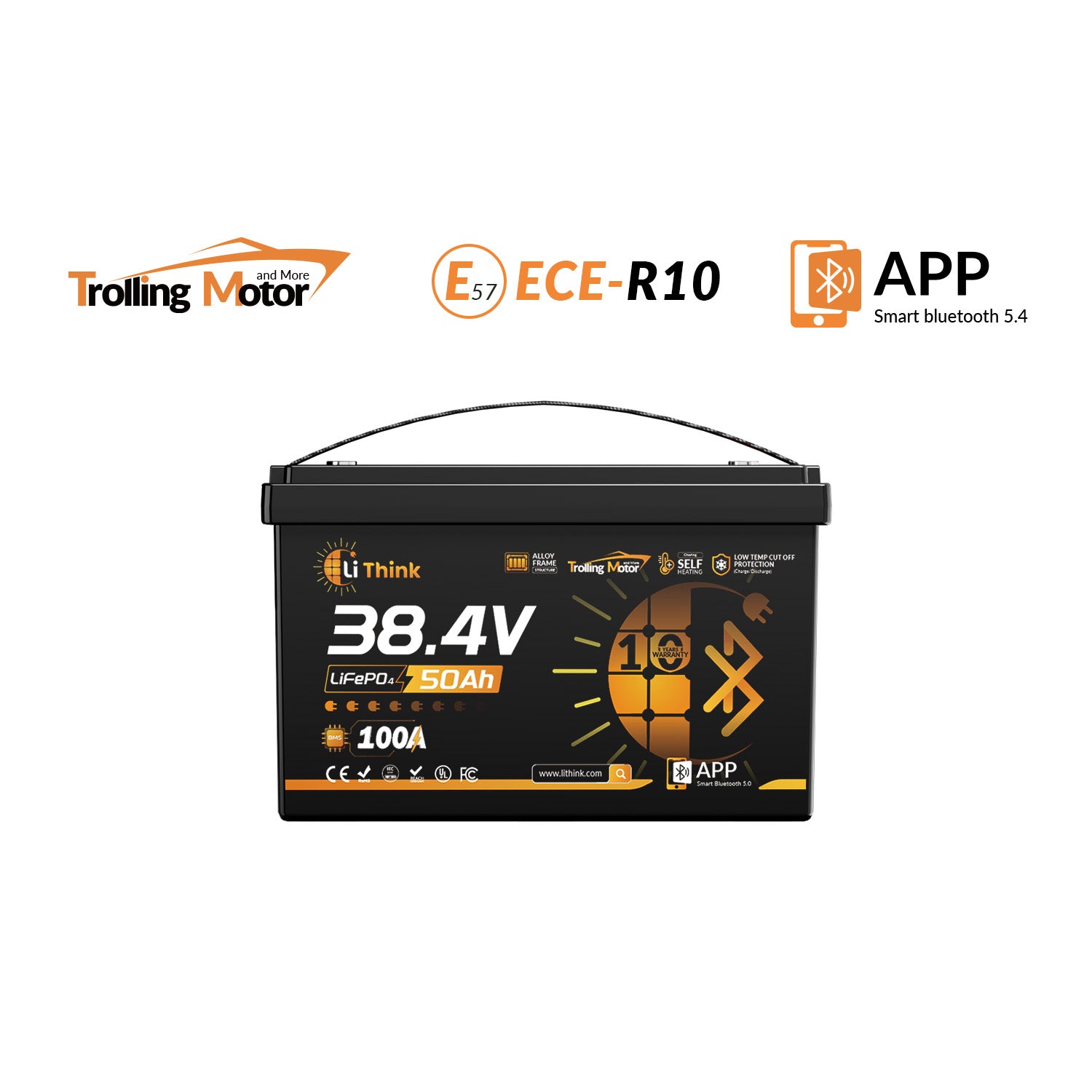

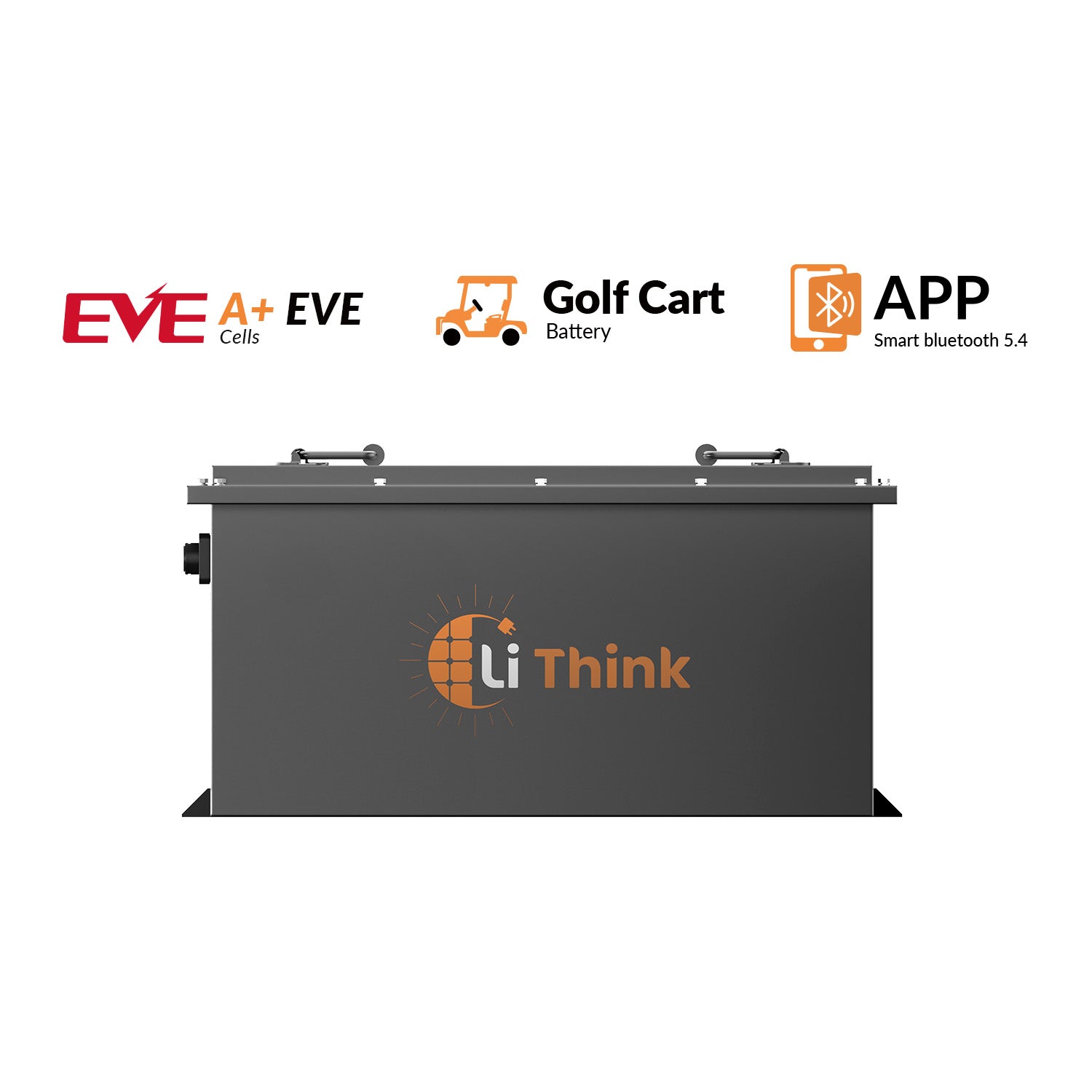

Specification comparison between products LiThink 12V 100Ah Group 24 LiFePO4 Battery with 150A BMS, Bluetooth & Self-Heating — for RVs, Marine & Solar, LiThink 12V 100Ah OBM LiFePO4 Battery with 200A BMS, Bluetooth & Self-Heating — for Outboard Motors, LiThink 12V 100Ah Trolling Motor LiFePO4 Battery with 150A BMS, Bluetooth & Self-Heating, LiThink 12V 165Ah LiFePO4 Battery with 250A BMS, Bluetooth & Self-Heating — for RVs, Marine & Off-Grid Power, LiThink 12V 334Ah Mini Pro LiFePO4 Battery with EVE LF334 Cells, 300A BMS, Bluetooth & Self-Heating — for RVs, Trolling Motors & Solar, LiThink 36V 50Ah Trolling Motor LiFePO4 Battery with 100A BMS, Bluetooth & Self-Heating, LiThink 48V 105Ah Pro Golf Cart LiFePO4 Battery with EVE LF105 Cells, 400A BMS & Bluetooth
	LiThink 12V 100Ah Group 24 LiFePO4 Battery with 150A BMS, Bluetooth & Self-Heating — for RVs, Marine & SolarFrom $249.99	LiThink 12V 100Ah OBM LiFePO4 Battery with 200A BMS, Bluetooth & Self-Heating — for Outboard MotorsFrom $299.99	LiThink 12V 100Ah Trolling Motor LiFePO4 Battery with 150A BMS, Bluetooth & Self-HeatingFrom $249.99	LiThink 12V 165Ah LiFePO4 Battery with 250A BMS, Bluetooth & Self-Heating — for RVs, Marine & Off-Grid PowerFrom $399.99	LiThink 12V 334Ah Mini Pro LiFePO4 Battery with EVE LF334 Cells, 300A BMS, Bluetooth & Self-Heating — for RVs, Trolling Motors & SolarFrom $649.99	LiThink 36V 50Ah Trolling Motor LiFePO4 Battery with 100A BMS, Bluetooth & Self-HeatingFrom $399.99	LiThink 48V 105Ah Pro Golf Cart LiFePO4 Battery with EVE LF105 Cells, 400A BMS & BluetoothFrom $1,199.99
Basic Battery Specifications
Cell Type	LiFePO4	LiFePO4	LiFePO4	LiFePO4	LiFePO4	LiFePO4	LiFePO4
Nominal Voltage	12.8V	12.8V	12.8V	12.8V	12.8V	38.4V	51.2V
Rated Capacity	100Ah	100Ah	100Ah	165Ah	334Ah	50Ah	105Ah
Energy	1280Wh	1280Wh	1280Wh	2112Wh	4275.2Wh	1920Wh	5376Wh
Cycle Life	≥4000 cycles	≥4000 cycles	≥4000 cycles	≥4000 cycles	≥8000 cycles	≥4000 cycles	≥8000 cycles
Internal Resistance	≤40mΩ	≤40mΩ	≤40mΩ	≤40mΩ	≤100mΩ	≤40mΩ	≤40mΩ
Battery Management System (BMS)	150A	200A	150A	250A	300A	100A	400A
Number of Cells	4	4	4	4	4	12	16
Charging Specifications
Charge Method	CC/CV	CC/CV	CC/CV	CC/CV	CC/CV	CC/CV	CC/CV
Charge Voltage	14.6V	14.6V	14.6V	14.6V	14.6V	43.8V	58.4V
Recommended Charge Current	20A	20A	20A	33A	66.8A	10A	21A
Max. Continuous Charge Current	150A	200A	150A	250A	300A	100A	105A
Charging Time at Recommended Current	20A @ 5h	20A @ 5h	20A @ 5h	33A @ 5h	66.8A @ 5h	10A @ 5h	21A @ 5h
Minimum Charge Current for Heating Function	10A	10A	10A	10A	10A	10A	10A
Discharging Specifications
Max. Continuous Discharge Current	150A	200A	150A	250A	300A	100A	250A
Max. Continuous Output Power	1920W	2560W	1920W	3200W	3840W	3840W	12800W
Discharge Cut-off Voltage	10.8V	10.8V	10.8V	10.8V	10.8V	32.4V	43.2V
Surge Discharge Current	550A @ 1s\| 450A @ 3s\| 350A @ 5s\| 200A @ 10s	1000A @ 1s\| 700A @ 3s\| 500A @ 5s\| 300A @ 10s	550A @ 1s\| 450A @ 3s\| 350A @ 5s\| 200A @ 10s	800A @ 1s\| 650A @ 3s\| 500A @ 5s\| 350A @ 10s	1000A @ 1s\| 900A @ 3s\| 600A @ 5s\| 450A @ 10s	3500A @ 1s\| 250A @ 3s\| 200A @ 5s\| 150A @ 10s	600A @ 30s
Self-discharge Rate	≤2%	≤2%	≤2%	≤2%	≤2%	≤2%	≤2%
Temperature Specifications
Charge Temperature Range	0°C to 50°C / 32°F to 122°F	0°C to 50°C / 32°F to 122°F	0°C to 50°C / 32°F to 122°F	0°C to 50°C / 32°F to 122°F	0°C to 50°C / 32°F to 122°F	0°C to 50°C / 32°F to 122°F	0°C to 50°C / 32°F to 122°F
Discharge Temperature Range	-20°C to 60°C / -4°F to 140°F	-20°C to 60°C / -4°F to 140°F	-20°C to 60°C / -4°F to 140°F	-20°C to 60°C / -4°F to 140°F	-20°C to 60°C / -4°F to 140°F	-20°C to 60°C / -4°F to 140°F	-20°C to 60°C / -4°F to 140°F
Storage Temperature Range, less than 1 year	-20°C to 25°C / -4°F to 77°F	-20°C to 25°C / -4°F to 77°F	-20°C to 25°C / -4°F to 77°F	-20°C to 25°C / -4°F to 77°F	-20°C to 25°C / -4°F to 77°F	-20°C to 25°C / -4°F to 77°F	-20°C to 25°C / -4°F to 77°F
Storage Temperature Range, less than 3 months	-20°C to 40°C / -4°F to 104°F	-20°C to 40°C / -4°F to 104°F	-20°C to 40°C / -4°F to 104°F	-20°C to 40°C / -4°F to 104°F	-20°C to 40°C / -4°F to 104°F	-20°C to 40°C / -4°F to 104°F	-20°C to 40°C / -4°F to 104°F
Storage Temperature Range, less than 7 days	-20°C to 65°C / -4°F to 149°F	-20°C to 65°C / -4°F to 149°F	-20°C to 65°C / -4°F to 149°F	-20°C to 65°C / -4°F to 149°F	-20°C to 65°C / -4°F to 149°F	-20°C to 65°C / -4°F to 149°F	-20°C to 65°C / -4°F to 149°F
Low Temperature Protection & Heating Function
Low Temperature Charging Protection	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Stop Charging Temperature	0°C / 32°F	0°C / 32°F	0°C / 32°F	0°C / 32°F	0°C / 32°F	0°C / 32°F	0°C / 32°F
Resume Charging Temperature	5°C / 41°F	5°C / 41°F	5°C / 41°F	5°C / 41°F	5°C / 41°F	5°C / 41°F	5°C / 41°F
Heating Temperature	>10°C / >50°F	>10°C / >50°F	>10°C / >50°F	>10°C / >50°F	0°C to 10°C / 32°F to 50°F	>10°C / >50°F	>10°C / >50°F
Approx. Heating Time @ 8A, from -10°C / 14°F	70–90 minutes	70–90 minutes	70–90 minutes	70–90 minutes	70–90 minutes	70–90 minutes	70–90 minutes
Approx. Heating Time @ 8A, from -20°C / -4°F	100–150 minutes	100–150 minutes	100–150 minutes	100–150 minutes	100–150 minutes	100–150 minutes	100–150 minutes
Physical Specifications
Dimension	259 × 168 × 209 mm\| 10.20 × 6.61 × 8.23 inch	339 × 185 × 215 mm\| 13.34 × 7.28 × 8.46 inch	339 × 185 × 215 mm\| 13.34 × 7.28 × 8.46 inch	339 × 185 × 215 mm\| 13.34 × 7.28 × 8.46 inch	383 × 204 × 268 mm\| 15.08 × 8.03 × 10.55 inch	339 × 185 × 215 mm\| 13.34 × 7.28 × 8.46 inch	500 × 318 × 244 mm\| 19.68 × 12.51 × 9.60 inch
Battery Weight	10.3 kg / 22.7 lbs	10.56 kg / 23.28 lbs	10.6 kg / 23.4 lbs	15.6 kg / 34.4 lbs	27.1 kg / 59.7 lbs	15.9 kg / 35.05 lbs	42.9 kg / 94.5 lbs
Cell Weight	7.7 kg / 17 lbs	7.7 kg / 17 lbs	7.7 kg / 17 lbs	11.9 kg / 26.2 lbs	22 kg / 48.5 lbs	11.5 kg / 25.3 lbs	31.7 kg / 69.9 lbs
Housing Material	ABS	ABS	ABS	ABS	ABS	ABS	SPCC
Color	Black	Black	Black	Black	Black	Black	Black
Protection Class	IP65	IP65	IP67	IP65	IP65	IP67	IP67
Connection & Installation
Terminals	M8 × 14mm	M8 × 14mm	M8 × 14mm	M8 × 14mm	M8 × 14mm	M8 × 14mm	M8 × 14mm
Recommended Terminal Torque	12N·m	12N·m	12N·m	12N·m	12N·m	12N·m	12N·m
Expansion Capability
Series and Parallel Connection	Up to 4P4S	Up to 4P4S	Up to 4P4S	Up to 4P4S	Up to 4P4S	1P2S	/

Charger comparison

Find the lithium battery charger that best suits your needs.

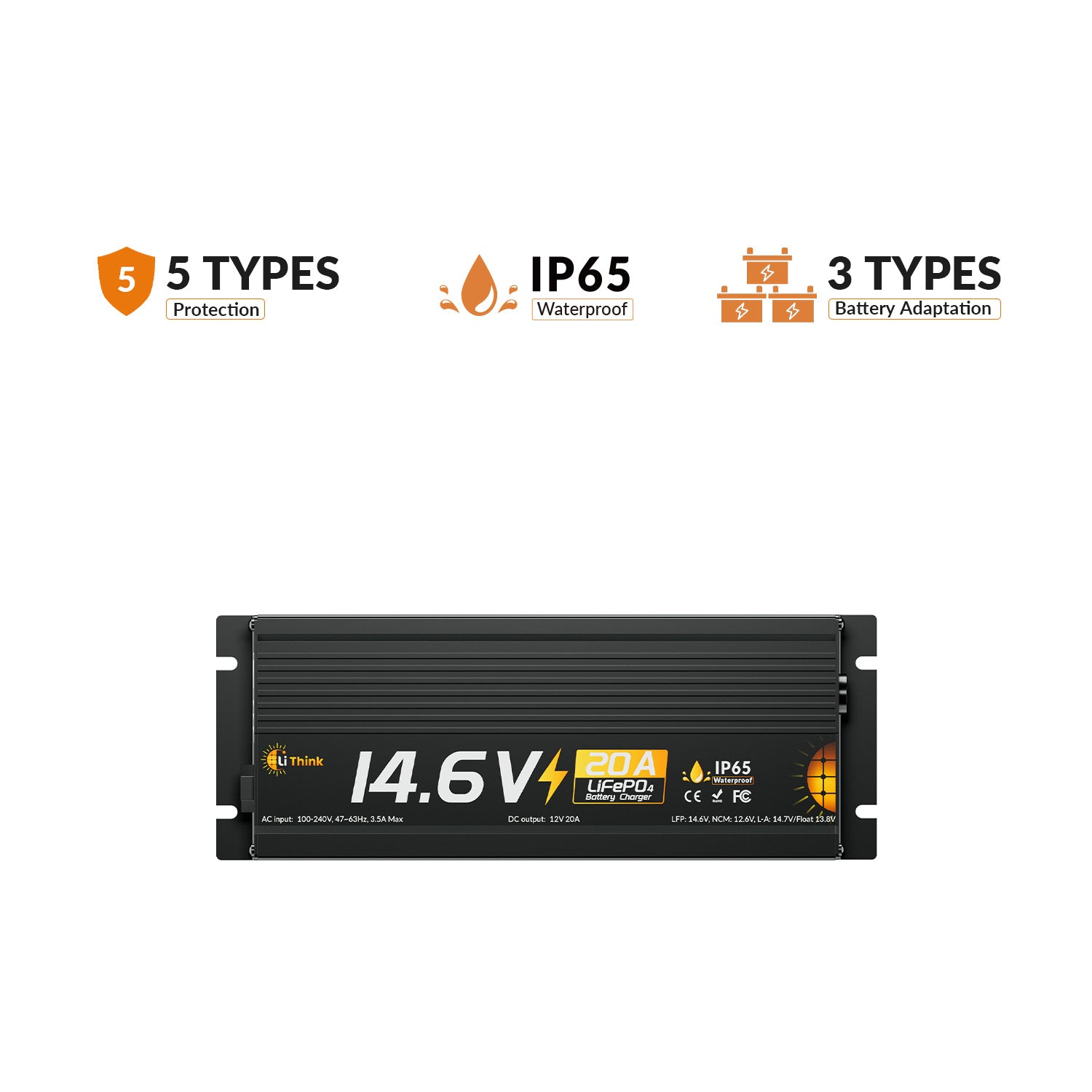

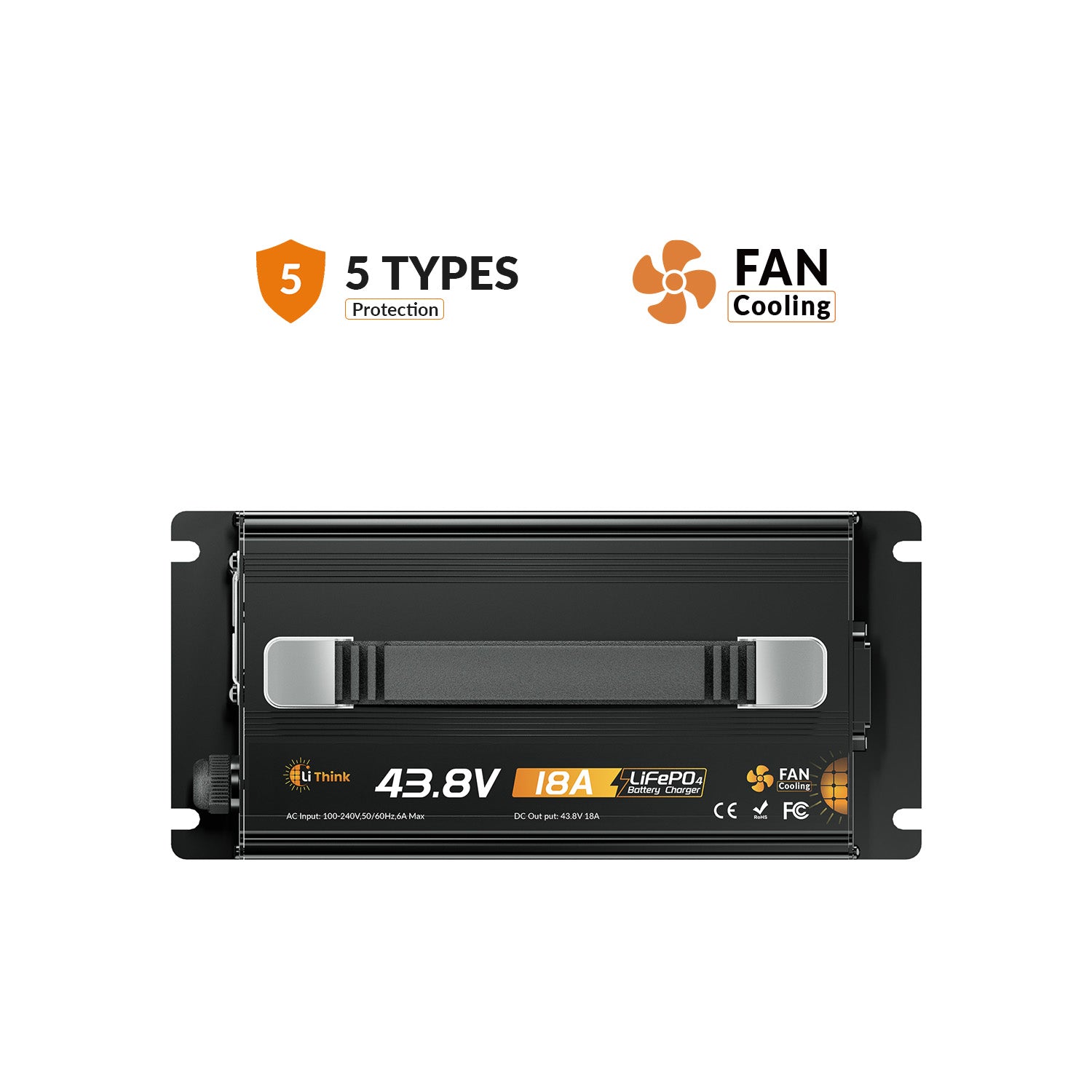

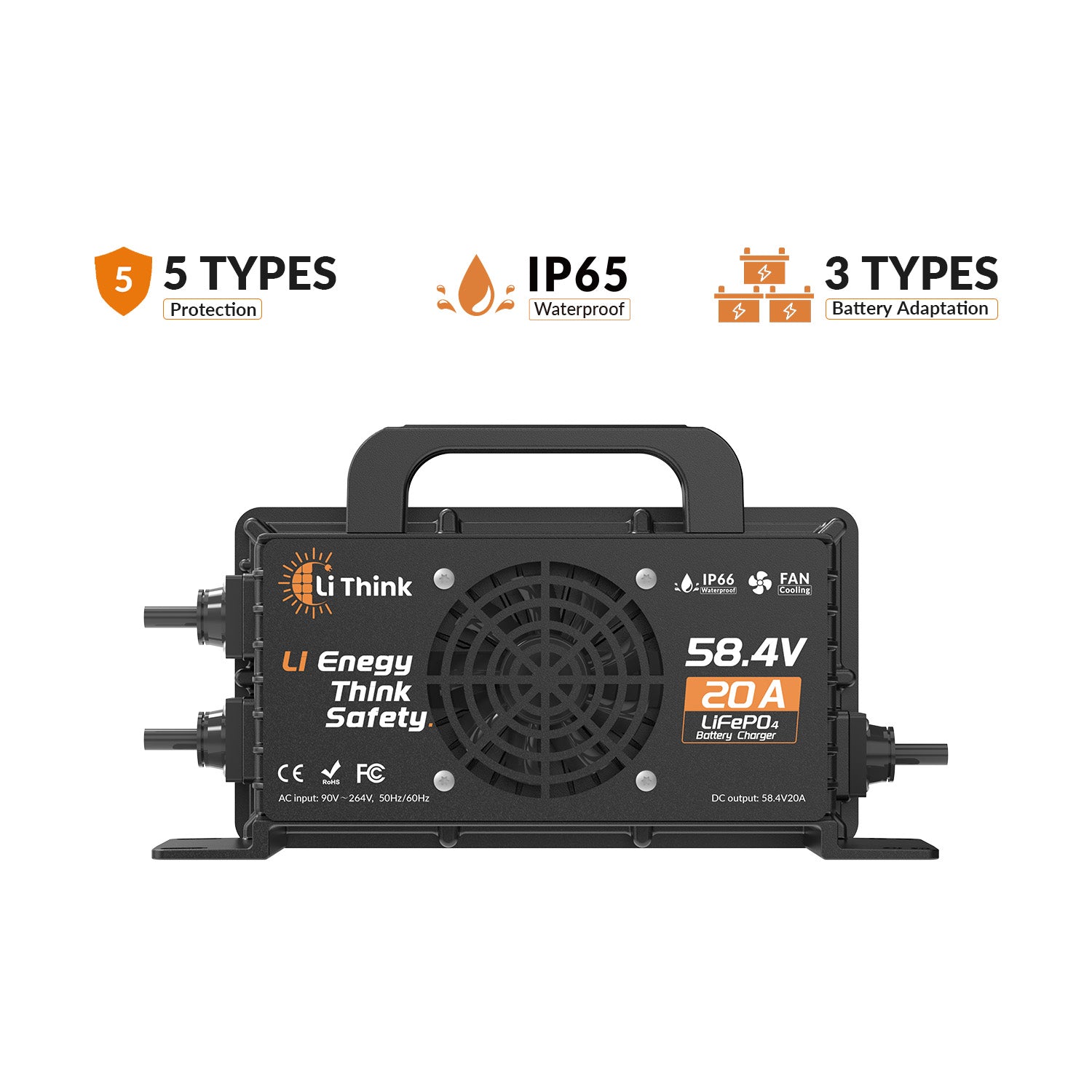

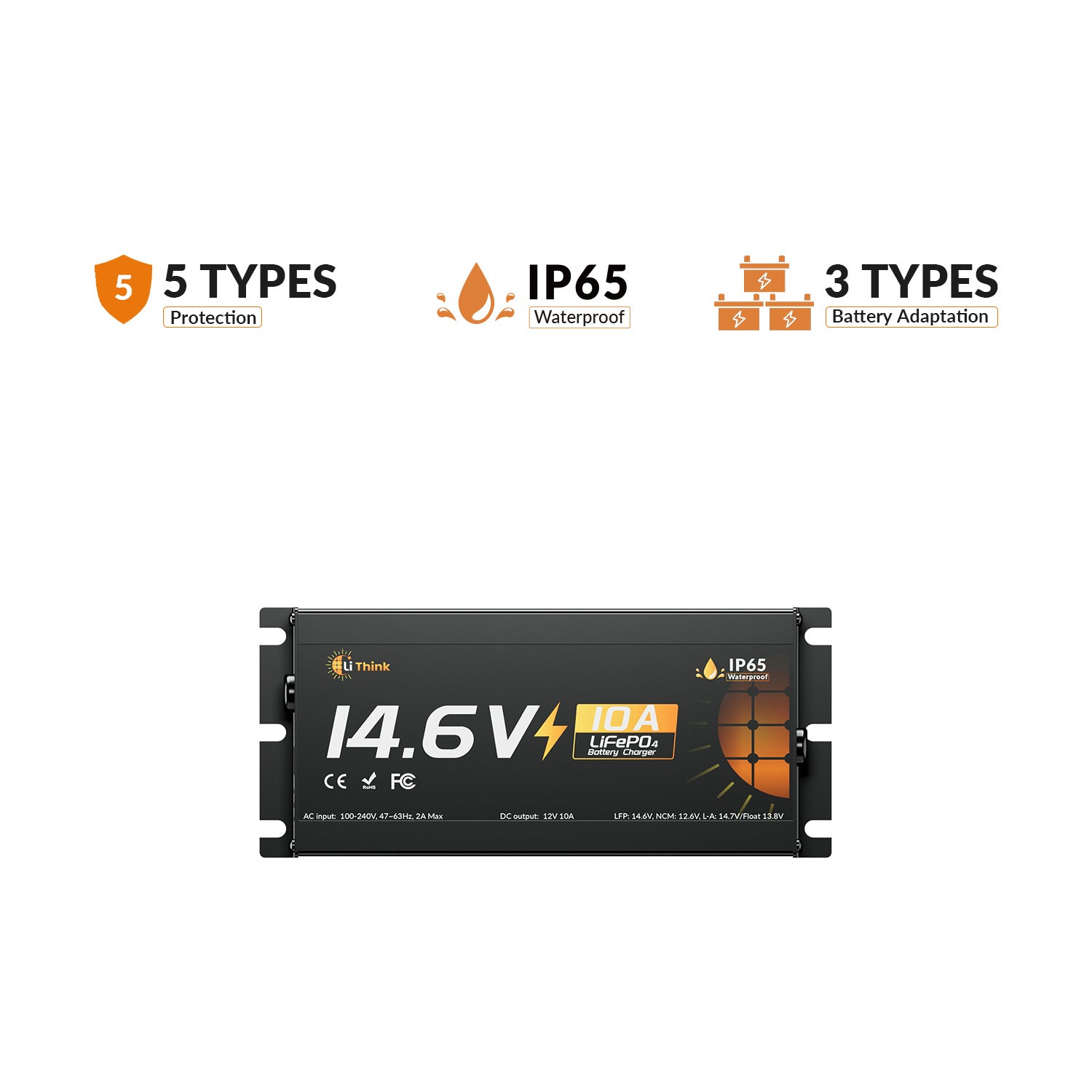

Specification comparison between products LiThink 14.6V 10A Waterproof Battery Charger — for LiFePO4, NCM & Lead-Acid Batteries, LiThink 14.6V 20A Waterproof Fast Battery Charger — for LiFePO4, NCM & Lead-Acid Batteries, LiThink 43.8V 18A Fan-Cooled LiFePO4 Battery Charger for 36V Lithium Batteries, LiThink 58.4V 20A Waterproof Fan-Cooled LiFePO4 Battery Charger for 48V Lithium Batteries
	LiThink 14.6V 10A Waterproof Battery Charger — for LiFePO4, NCM & Lead-Acid Batteries$59.99	LiThink 14.6V 20A Waterproof Fast Battery Charger — for LiFePO4, NCM & Lead-Acid Batteries$79.99	LiThink 43.8V 18A Fan-Cooled LiFePO4 Battery Charger for 36V Lithium Batteries$109.99	LiThink 58.4V 20A Waterproof Fan-Cooled LiFePO4 Battery Charger for 48V Lithium Batteries$139.99
Basic Electrical Specifications
Input Voltage Range	100–240V 47-63Hz	100–240V 47-63Hz	100–240V 50-60Hz	90–264V 50-60 Hz
Output Voltage	14.6V / 12.6V / 14.7V	14.6V / 12.6V / 14.7V	43.8 V	58.4V
Output Current	10A	20A	18 A	20A
Output Power	146W	292W	788 W	1168W
Charging Profile	CC-CV	CC-CV	CC-CV	CC-CV
Compatible Battery Types	LiFePO4 / NCM / SLA (VRLA, AGM, GEL)	LiFePO4 / NCM / SLA (VRLA, AGM, GEL)	LiFePO4	LiFePO4
Safety & Protection Features
Overvoltage Protection	✓	✓	✓	✓
Overcurrent Protection	✓	✓	✓	✓
Reverse Polarity Protection	✓	✓	✓	✓
Short-circuit Protection	✓	✓	✓	✓
Overtemperature Protection	✓	✓	✓	✓
Certifications	FCC, RoHS, CE	FCC, RoHS, CE	FCC, RoHS, CE	FCC, RoHS, CE
Mechanical & Structural Specifications
Cooling Method	Passive Convection	Passive Convection	Fan-cooled	Fan-cooled
Protection Class	IP65	IP65	IP30	IP66
Operating Temperature Range	-4°F to 122°F / -20°C to 50°C	-4°F to 122°F / -20°C to 50°C	-4°F to 122°F / -20°C to 50°C	-4°F to 122°F / -20°C to 50°C
Housing Material	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy
Dimensions (L × W × H)	8.19 × 3.58 × 2.07 in / 208 × 91 × 52.5 mm	9.84 × 3.63 × 1.97 in / 250 × 92.3 × 50 mm	8.66 × 4.72 × 2.75 in / 220 × 120 × 70 mm	11.1 × 5.7 × 3.2 in / 282 × 146 × 82 mm
Weight	4.0 lb / 1.8 kg	5.5 lb / 2.5 kg	5.51 lb / 2.5 kg	7.3 lb / 3.3 kg
Output Connector	Waterproof connector	Waterproof connector	Anderson 50 A	Waterproof connector
Cable Length	Input cable: 78.7 in / 2.00 m; Output cable: 57.1 in / 1.45 m; Extension cable: 9.8 in / 0.25 m	Input cable: 47.2 in / 1.20 m; Output cable: 57.1 in / 1.45 m; Extension cable: 9.8 in / 0.25 m	Input cable: 59.0 in / 1.5 m · Output cable: 43.3 in / 1.1 m · Extension cable: 9.8 in / 0.25 m	Input cable: 59.0 in / 1.5 m · Output cable: 47.2 in / 1.2 m · Extension cable: 19.7 in / 0.5 m
