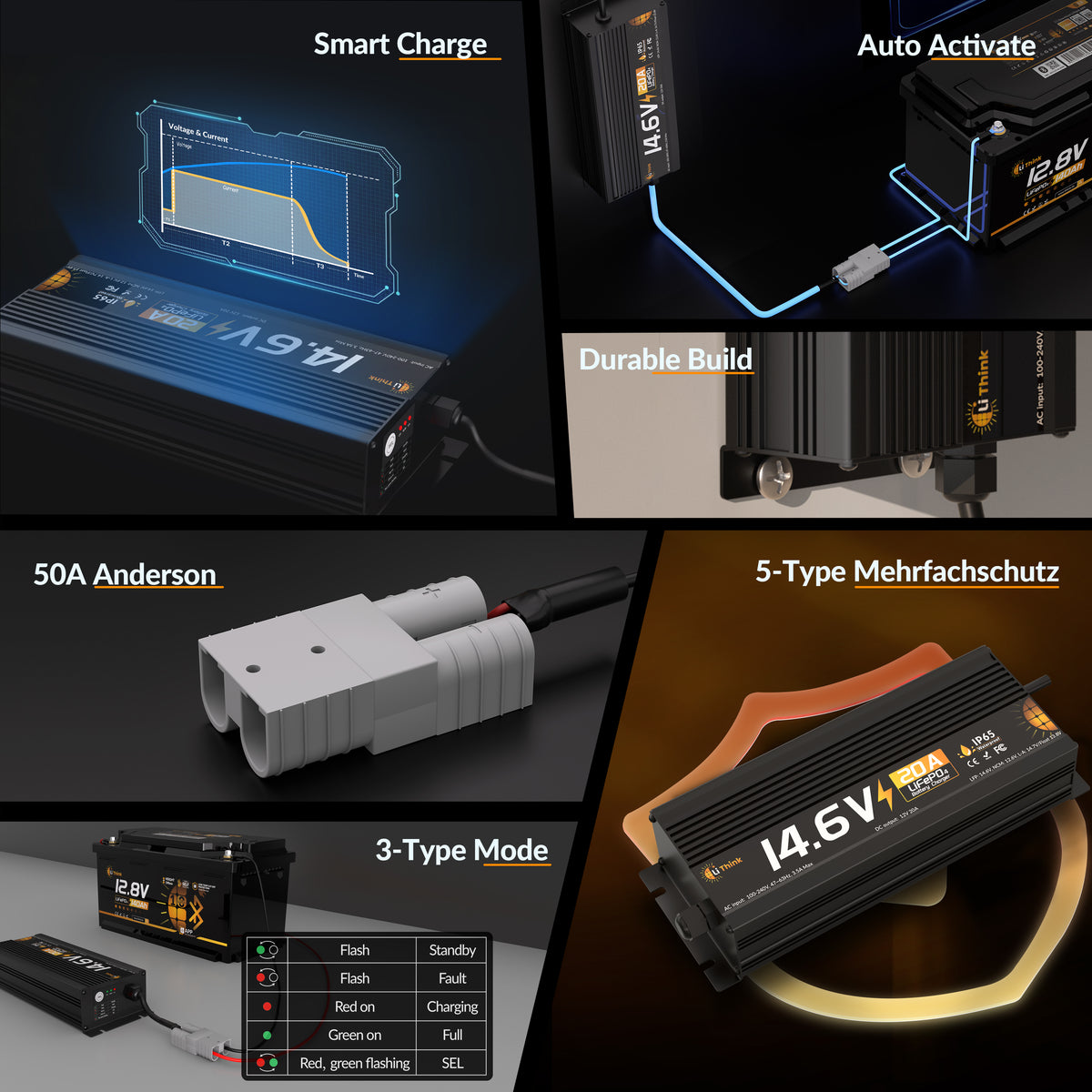

LiThink 12V 20A 充电器 — product feature 7
LiThink 14.6V 20A waterproof fast battery charger
LiThink 14.6V 20A waterproof fast battery charger
LiThink 14.6V 20A waterproof fast battery charger
LiThink 14.6V 20A waterproof fast battery charger
LiThink 14.6V 20A waterproof fast battery charger
LiThink 14.6V 20A waterproof fast battery charger
LiThink 12V 20A 充电器 — product feature 8
LiThink 14.6V 20A waterproof fast battery charger

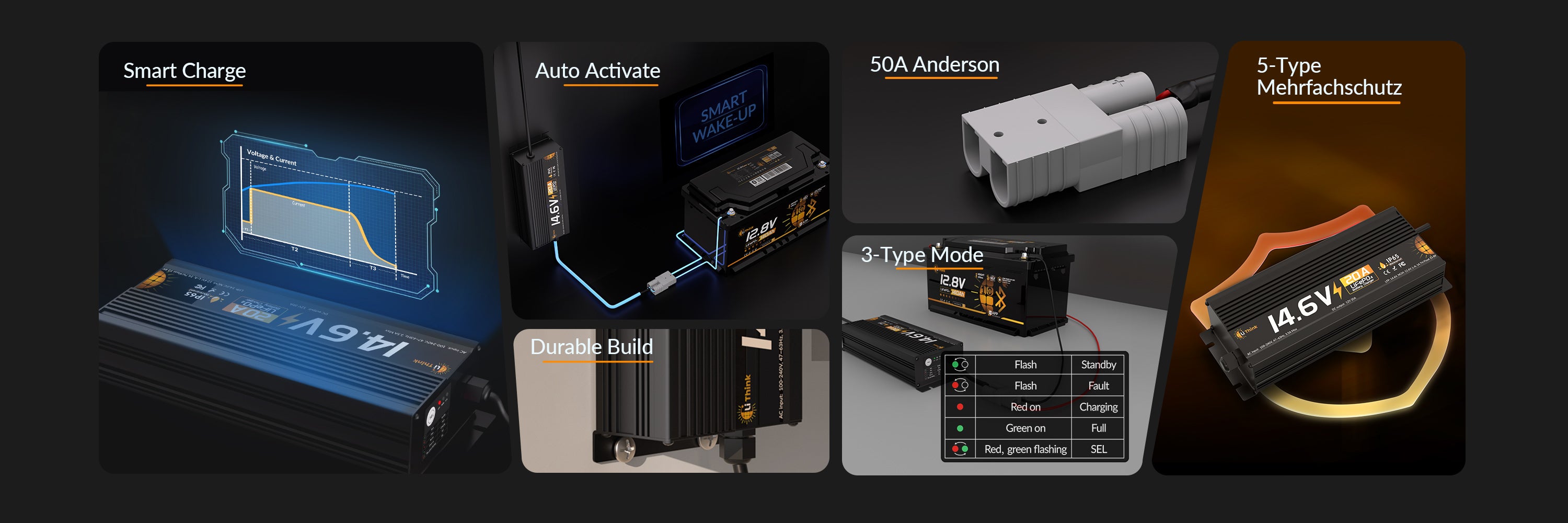

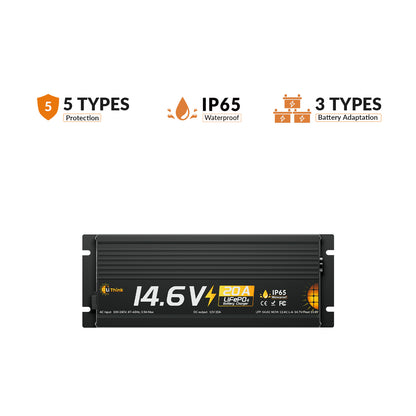

Why it stands out

3 types

Battery Adaptation

IP65

Rated

Activate

Function

3 stages

Charging

5 Types

Protection

Why it stands out

3 types

Battery Adaptation

IP65

Rated

Activate

Function

3 stages

Charging

5 Types

Protection

LiThink 14.6V 20A Waterproof Fast Battery Charger — for LiFePO4, NCM & Lead-Acid Batteries

Sale price $119.99Regular price $179.99 11999:17999 Save $60.00
LITHINK SERVICE PROMISE Lithink Care+ Long-term protection. Personal support. Clearly defined. Up to a 10-year warranty 30-day returns Technical support
20A Faster Charging
Higher 20A output for quicker 12V battery charging.
Multi-Chemistry Charging
Supports LiFePO4, NCM, and SLA lead-acid batteries.

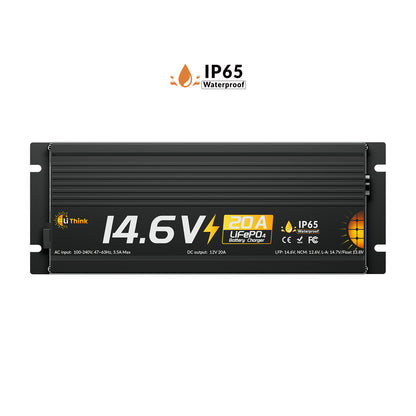

IP65 Waterproof Design
Sealed aluminum housing for RV, marine, garage, and outdoor use.

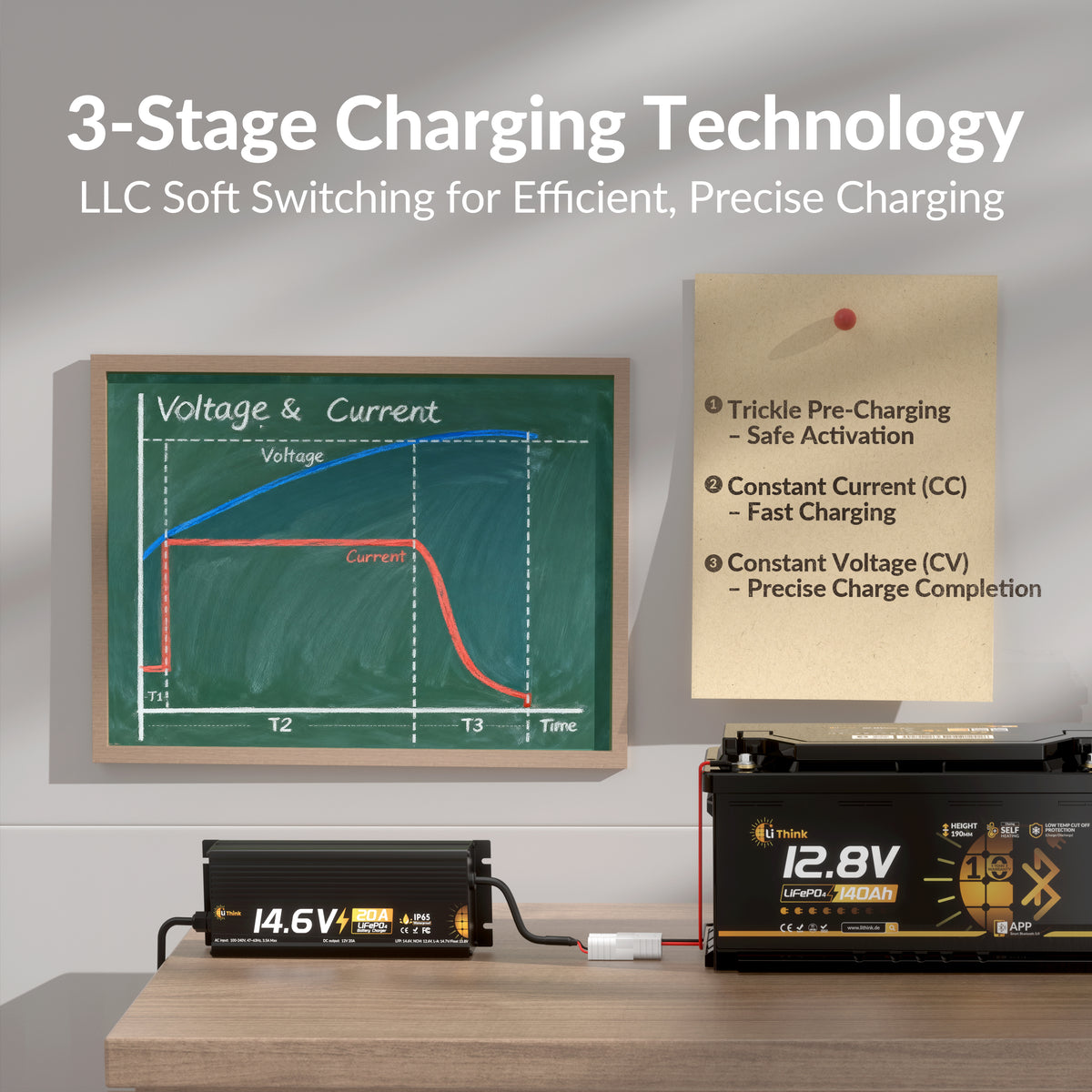

3-Stage Smart Charging
Bulk, absorption, and maintenance charging automatically controlled.

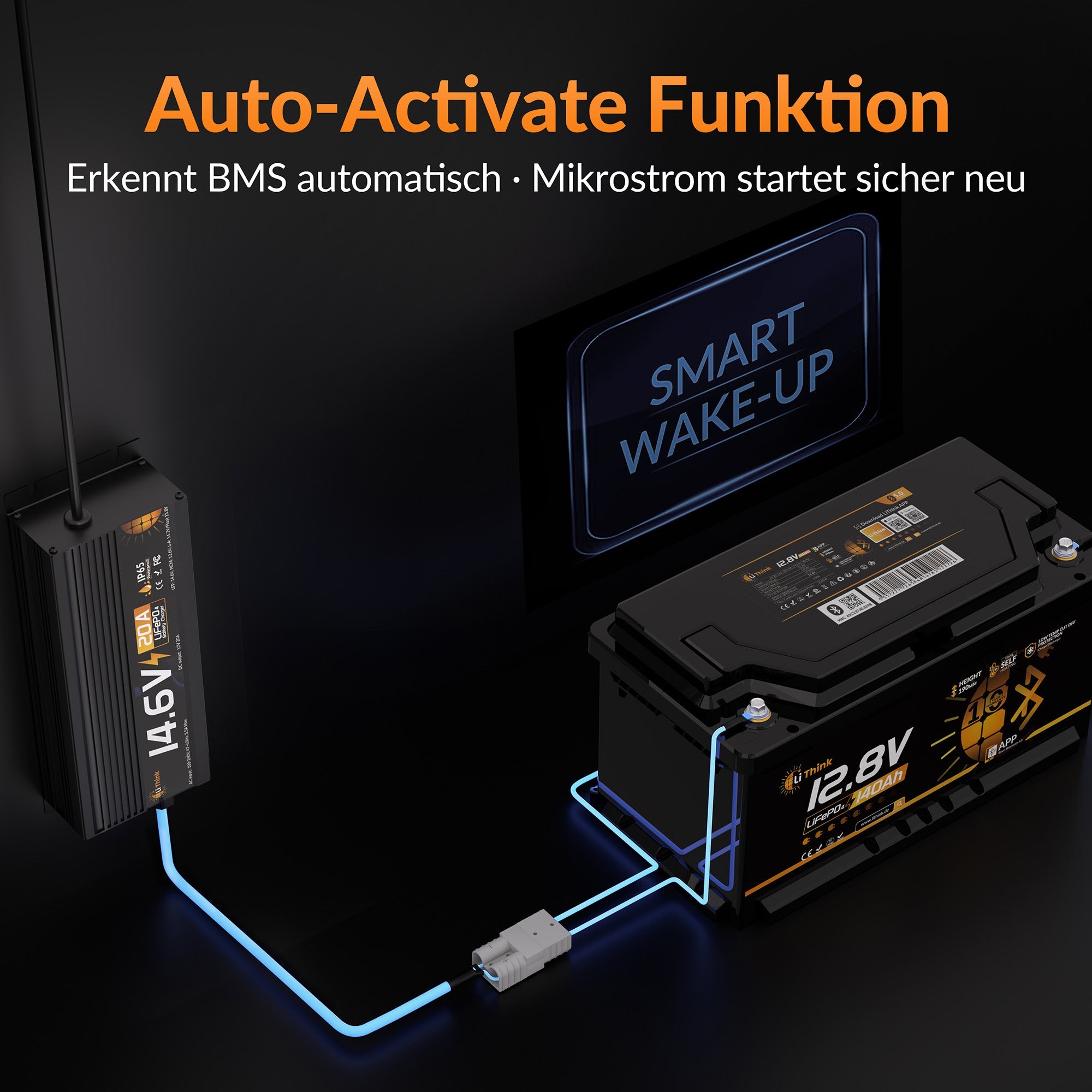

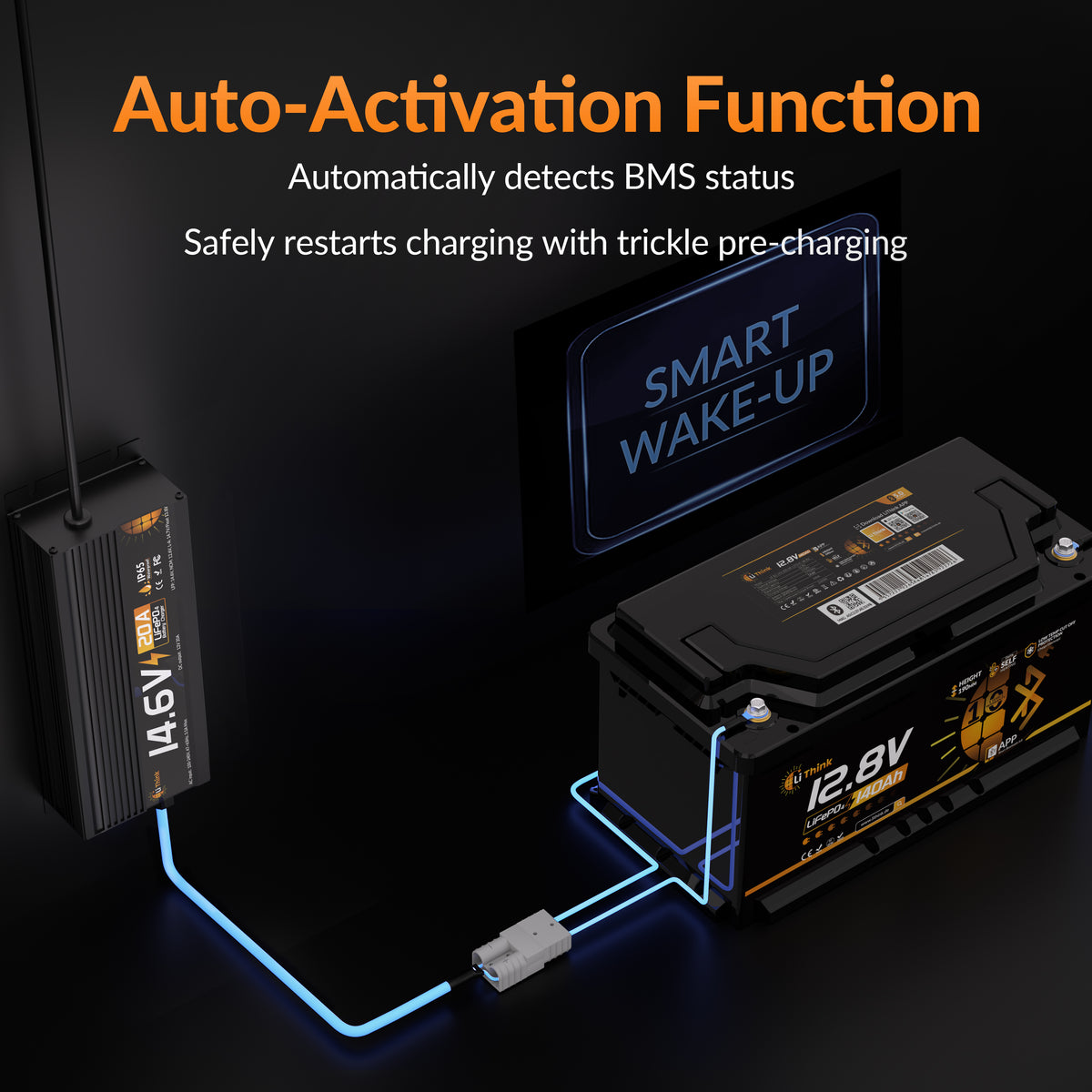

0V Battery Activation
Helps wake up deeply discharged batteries when protection is triggered.
Full Safety Protection
Overvoltage, overcurrent, reverse polarity, short-circuit, and overtemperature protection.

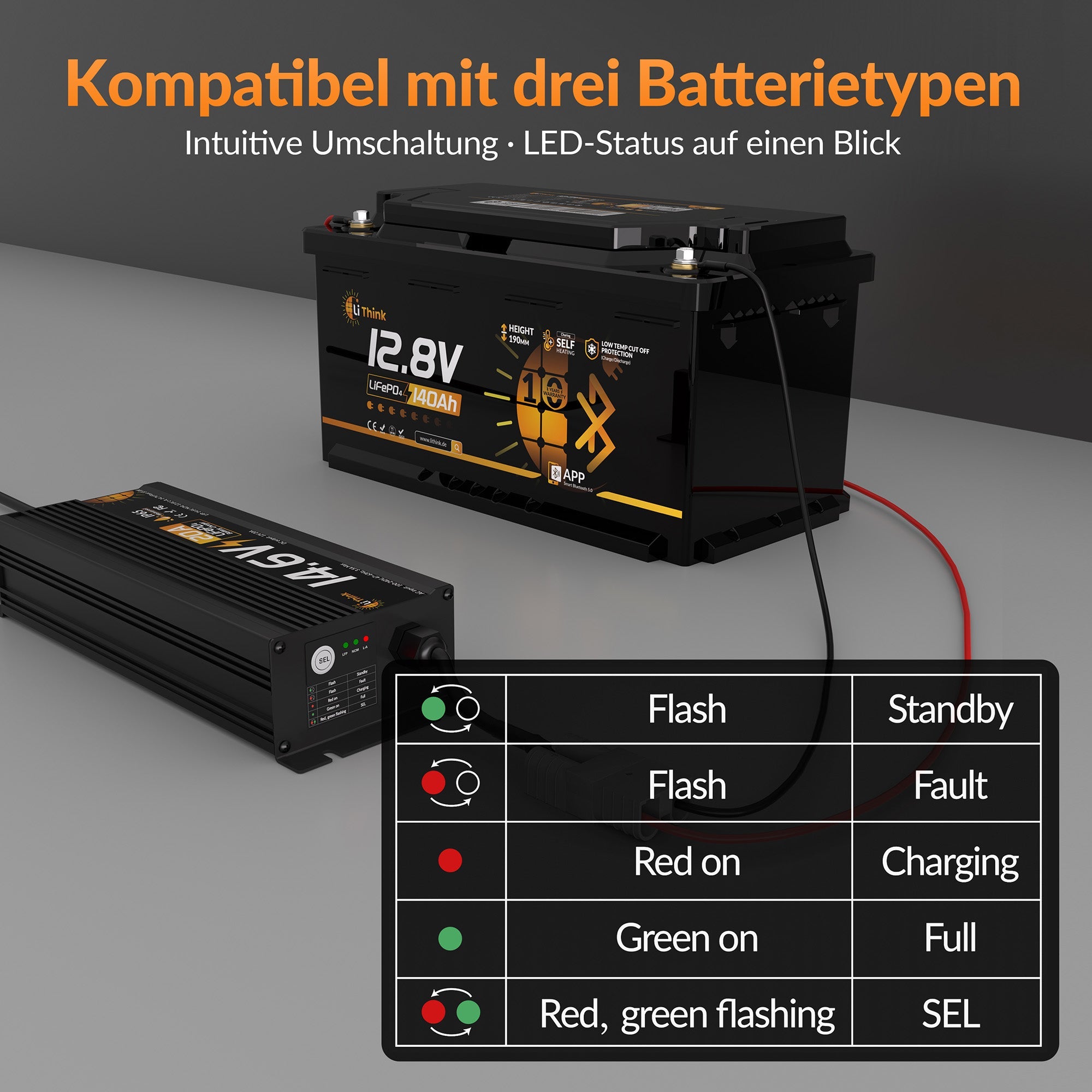

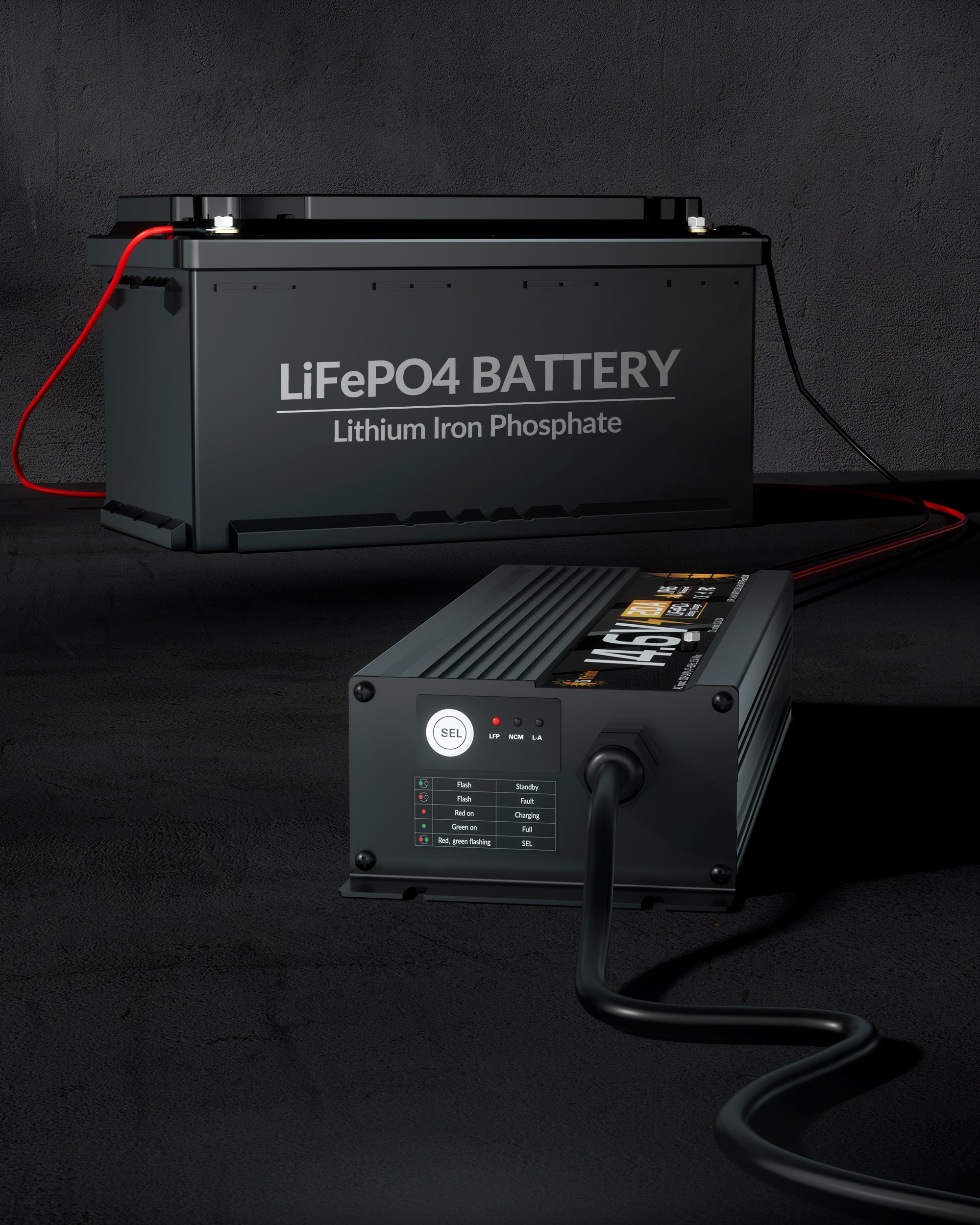

LED Status Display
Three-color LED indicators show charging status and fault alerts.

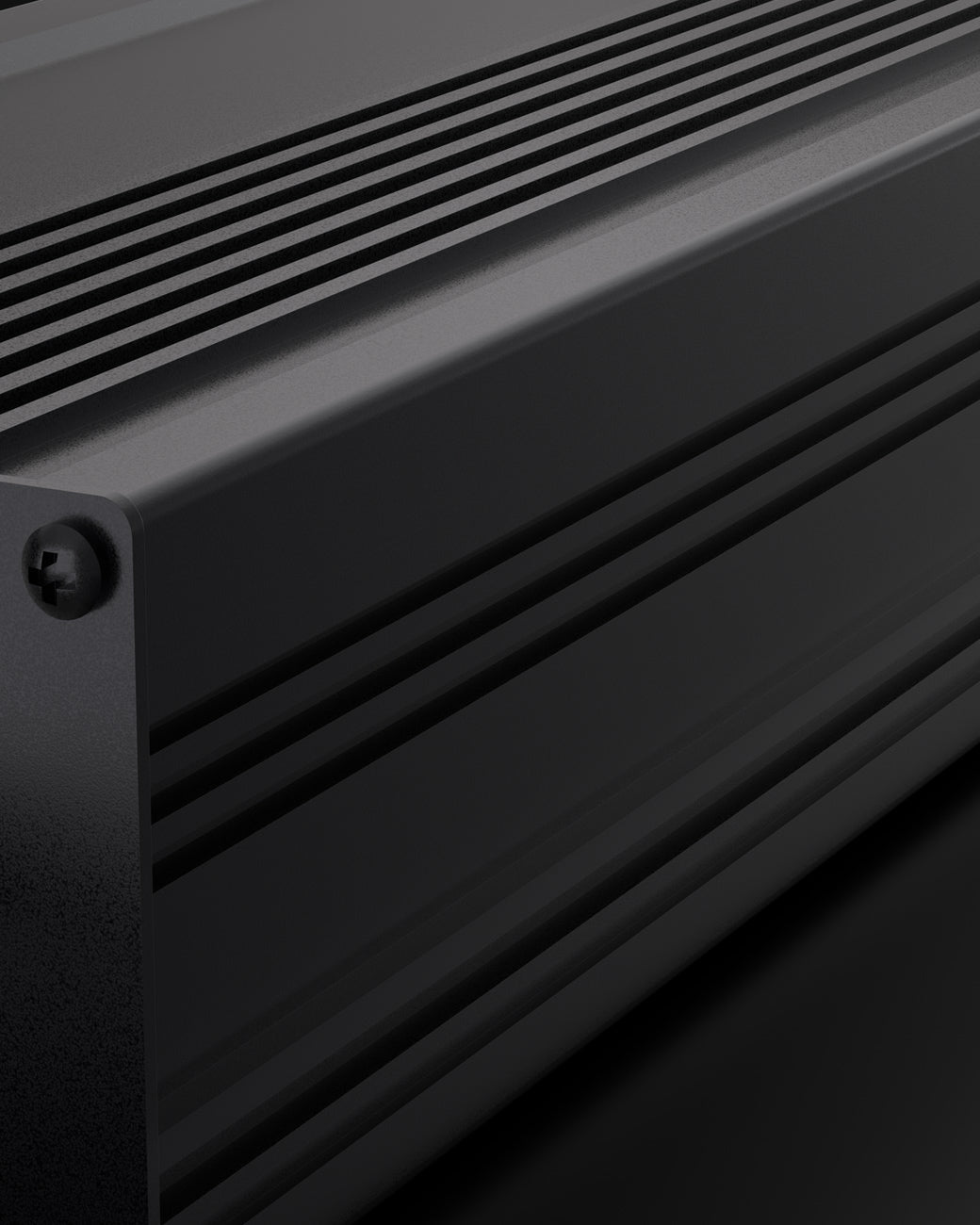

Passive Cooling
Ribbed aluminum housing helps dissipate heat without fan noise.
Core Charger Advantages
  • 20A faster charging: Delivers 20A / 292W output, making it a stronger choice for faster charging of 12V battery systems.
  • Multi-chemistry compatibility: Switchable charging support for 4S LiFePO4, NCM, and SLA lead-acid batteries, including VRLA, AGM, and GEL batteries.
  • 0V activation: Helps recover deeply discharged batteries when the battery protection system has cut off output.
  • LED status indicators: Three-color LED lights make charging progress and fault status easier to read.
Charging Output & Compatibility
  • Smart CC-CV charging: Provides constant-current and constant-voltage charging for safer, more controlled charging.
  • Output voltage options: 14.6V / 12.6V / 14.7V, supporting LiFePO4, NCM, and lead-acid charging profiles.
  • Input voltage: Wide-range 100–240V AC, 47–63Hz input for flexible use in different power environments.
  • 3-stage charging: Bulk, absorption, and maintenance charging are automatically controlled for easier daily use.
Safety, Housing & Installation
  • Multi-layer protection: Built-in overvoltage, overcurrent, reverse polarity, short-circuit, and overtemperature protection for safer charging.
  • IP65 aluminum housing: Aluminum alloy housing with IP65 protection helps resist dust and water jets in demanding outdoor, garage, RV, and marine environments.
  • Passive convection cooling: Fanless ribbed housing dissipates heat quietly without fan noise or moving parts.

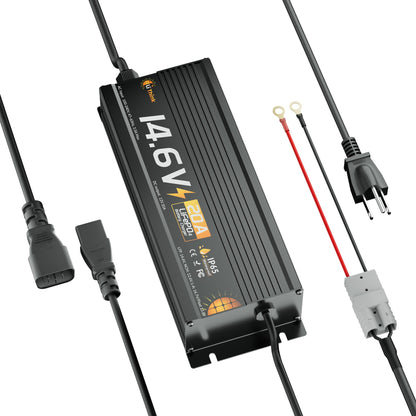

  • Cables included: Input cable 47.2 in / 1.20 m, output cable 57.1 in / 1.45 m, and extension cable 9.8 in / 0.25 m.
  • Compact size: 9.84 × 3.63 × 1.97 in / 250 × 92.3 × 50 mm, approx. 5.5 lb / 2.5 kg.
  • Certifications: FCC, CE, and RoHS compliant.

Your Selection

In Stock
14.6V 20A Charger

14.6V 20A Charger

Default Title

Quantity
US: delivery in 3–7 business days
$119.99 $179.99
You Save $60.00
Pay conveniently
Mastercard American Express Cash App Pay
Reliable delivery

Free U.S. Shipping — Fast delivery from our U.S. warehouse

Engineer-Level Support — Real help when you need it

2-Year Charger Warranty — Reliable coverage for daily use

30-Day Easy Returns — Simple, stress-free returns

14.6V 20A Charger

  • 0 V Activation

    Wakes protected batteries.

  • CC Fast Charge

    High-current charging to 90%.

  • CV Full Charge

    Stable voltage to finish charging.

  • Auto Shutoff

    Stops when the battery is full.

0 V for LiThink 14.6V 20A Waterproof Fast Battery Charger

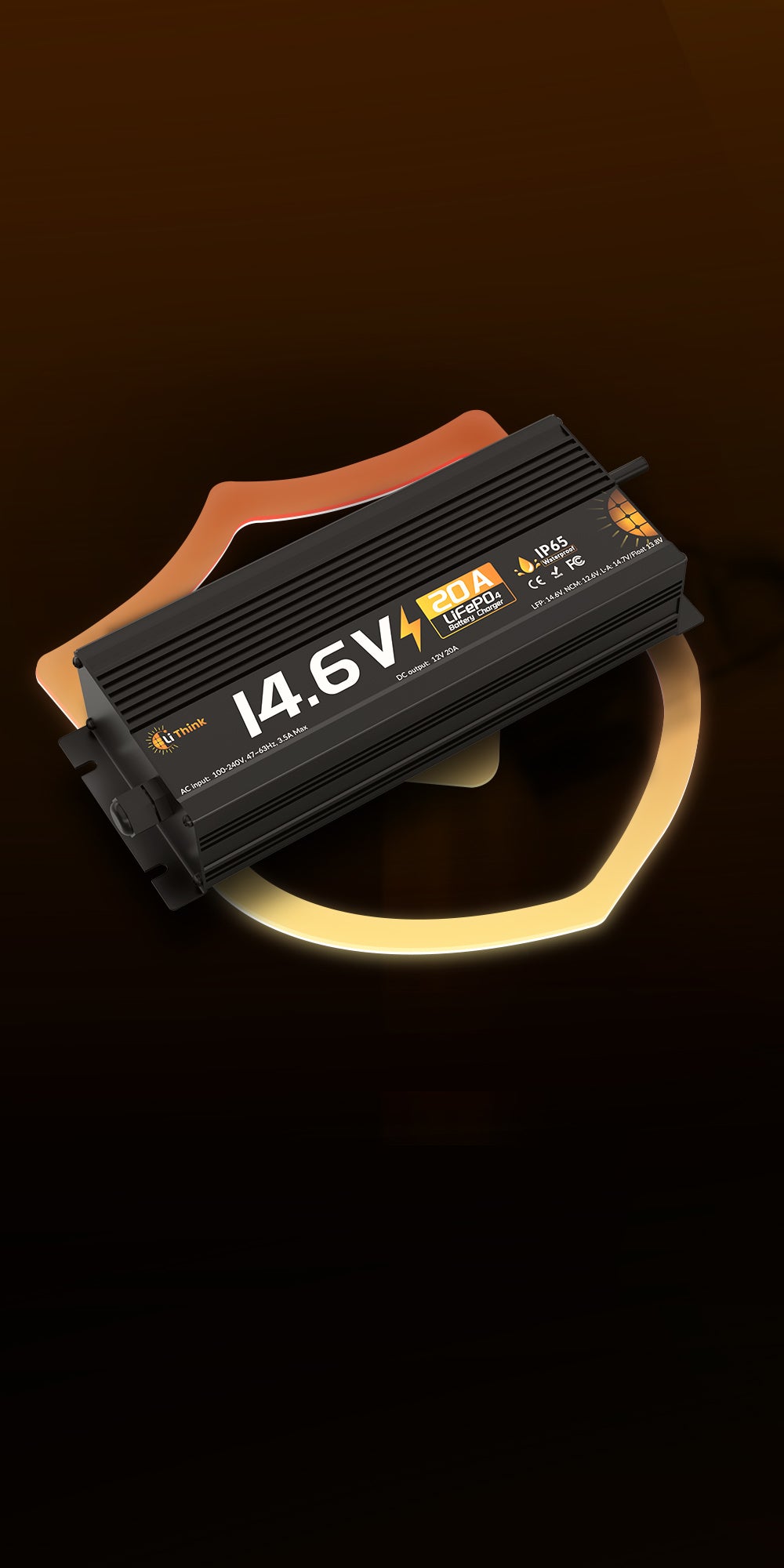

CONTROLLED. STABLE. SAFE.

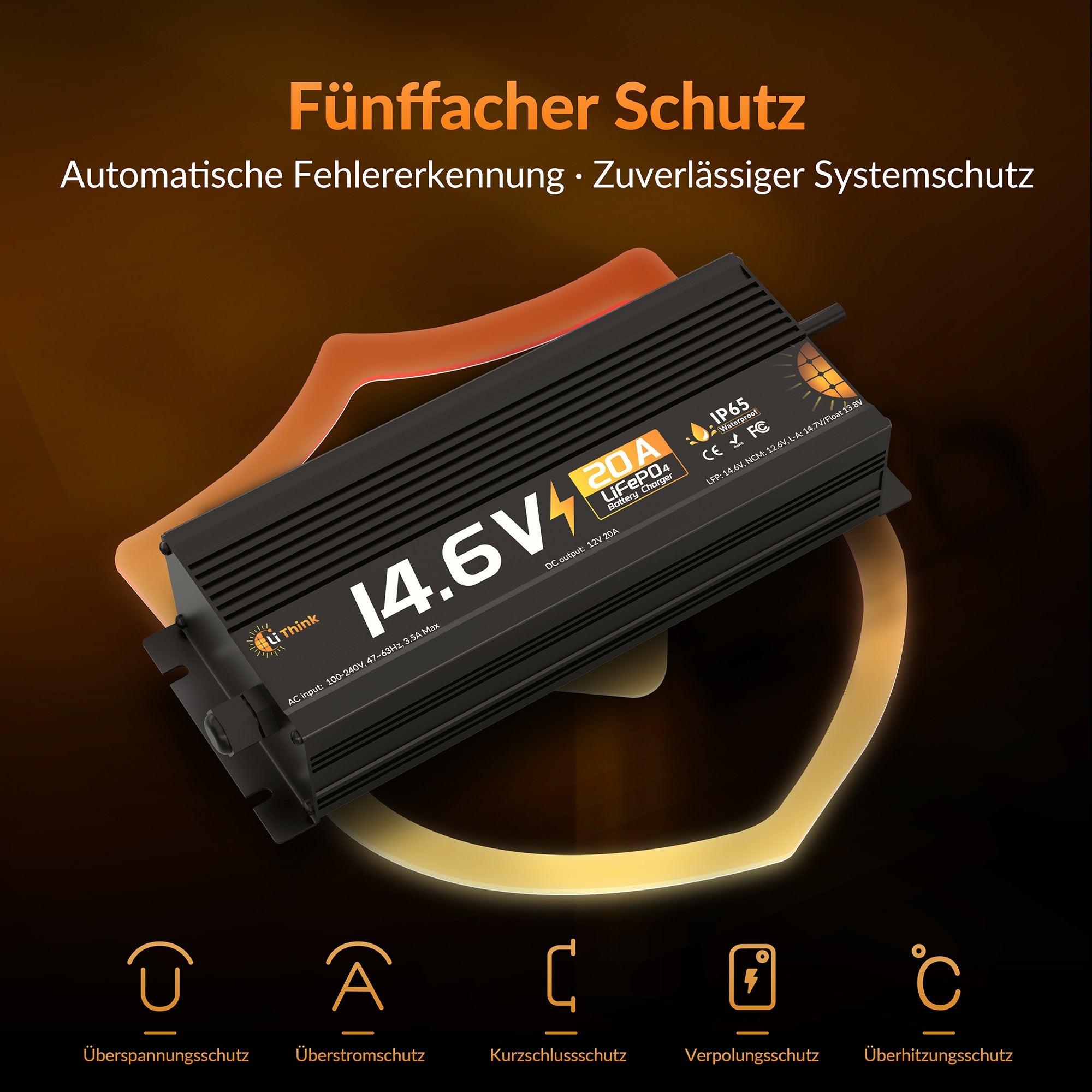

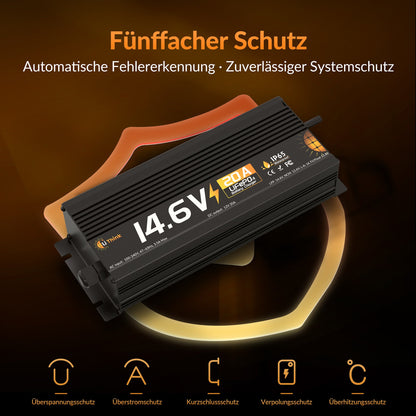

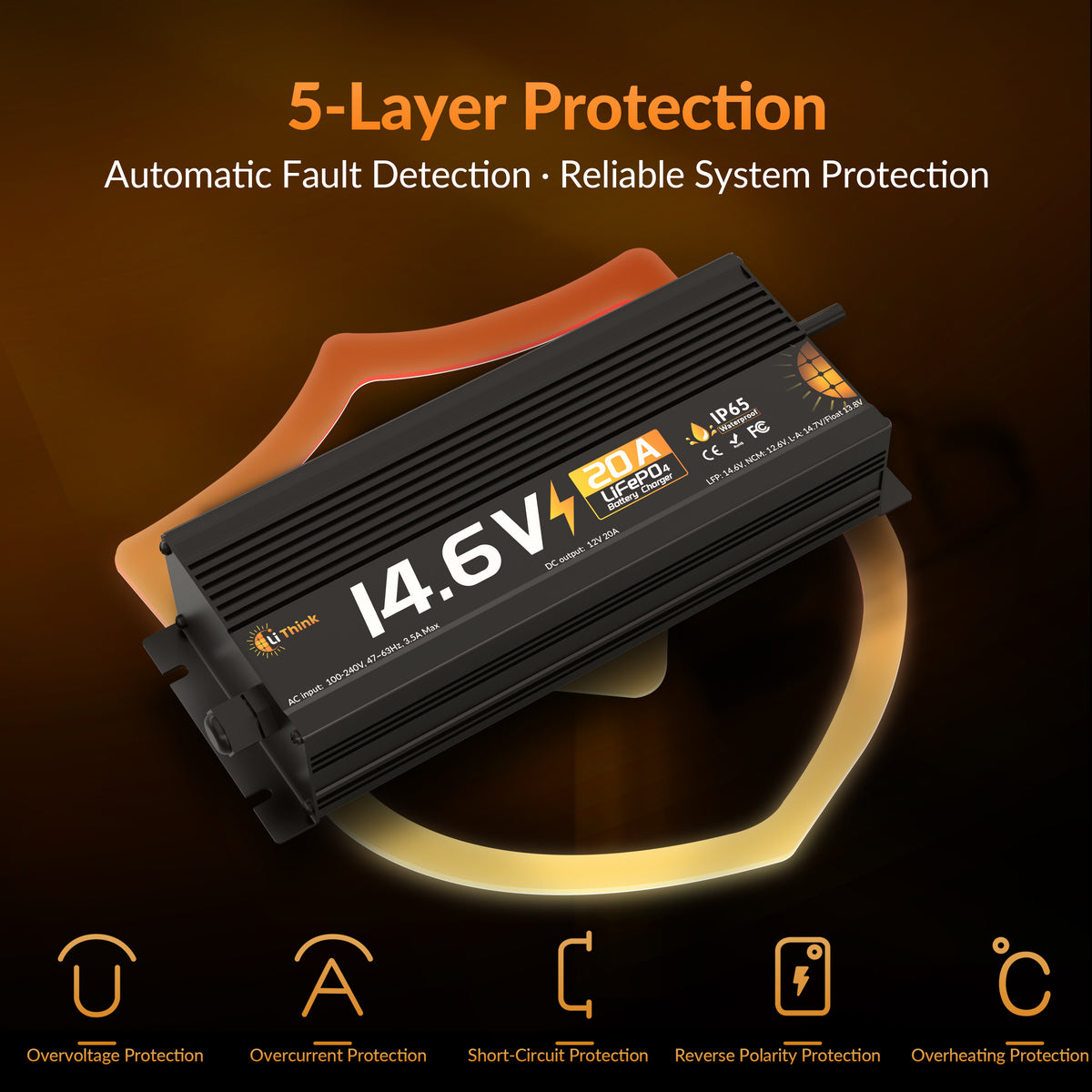

5-Layer Smart Protection

The charger monitors voltage, current, polarity, short circuits, and temperature in real time — helping protect your battery and charger during every charge.

  • > 14,6 V

    Overvoltage Protection

  • 10 A

    Overcurrent Protection

  • Auto-Stop

    Short-Circuit Protection

  • + / -

    Reverse Polarity Protection

  • ≥ 75 °C

    Overtemperature Protection
> 14,6 V for LiThink 14.6V 20A Waterproof Fast Battery Charger

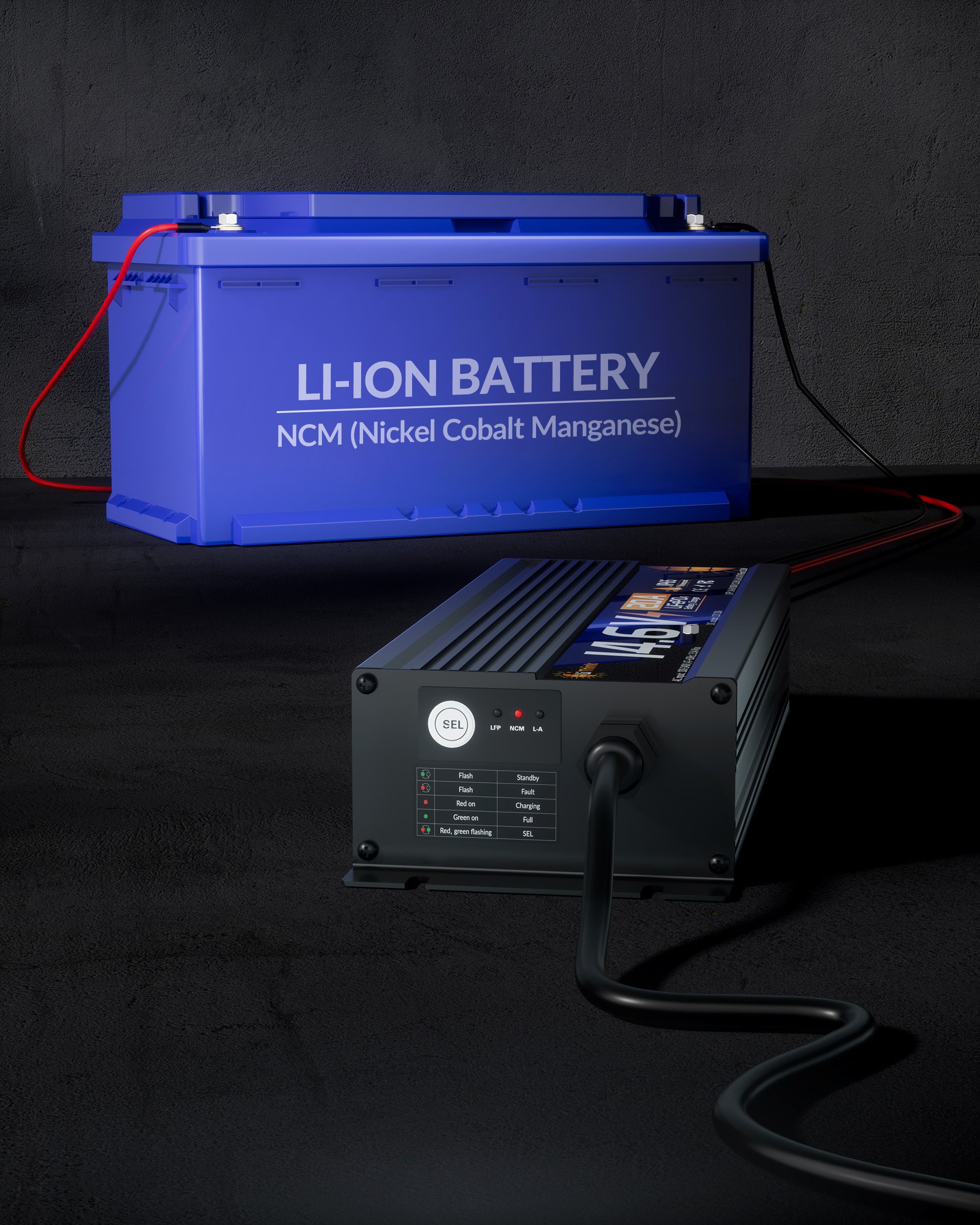

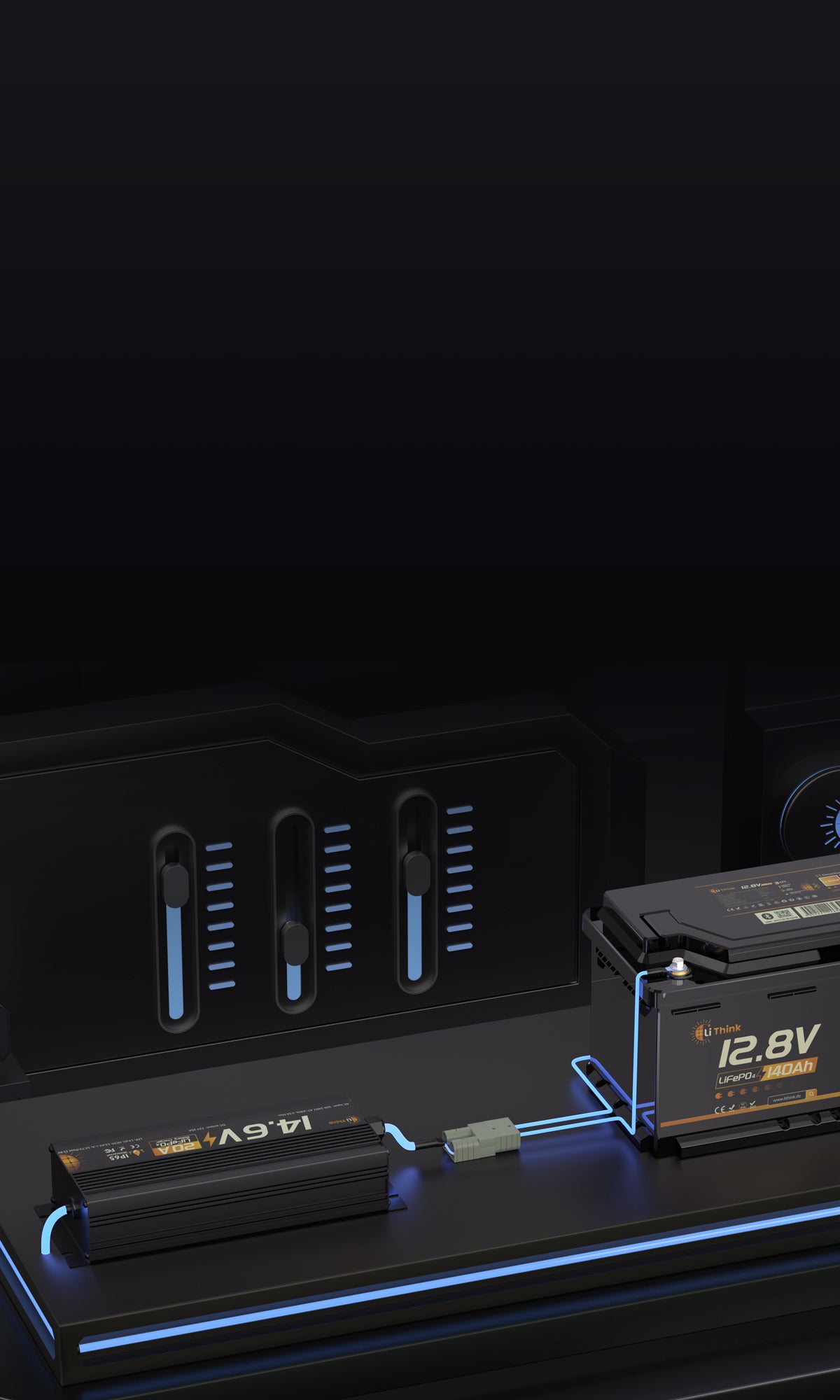

UNIVERSAL BATTERY COMPATIBILITY

3 Charging Modes. One Smarter Charger.

Switch between LiFePO4, SLA/AGM, and NCM charging profiles to match your battery type and keep voltage within the right range.

LiFePO₄ • 14,6 V for LiThink 14.6V 20A Waterproof Fast Battery Charger

LiFePO₄ • 14,6 V

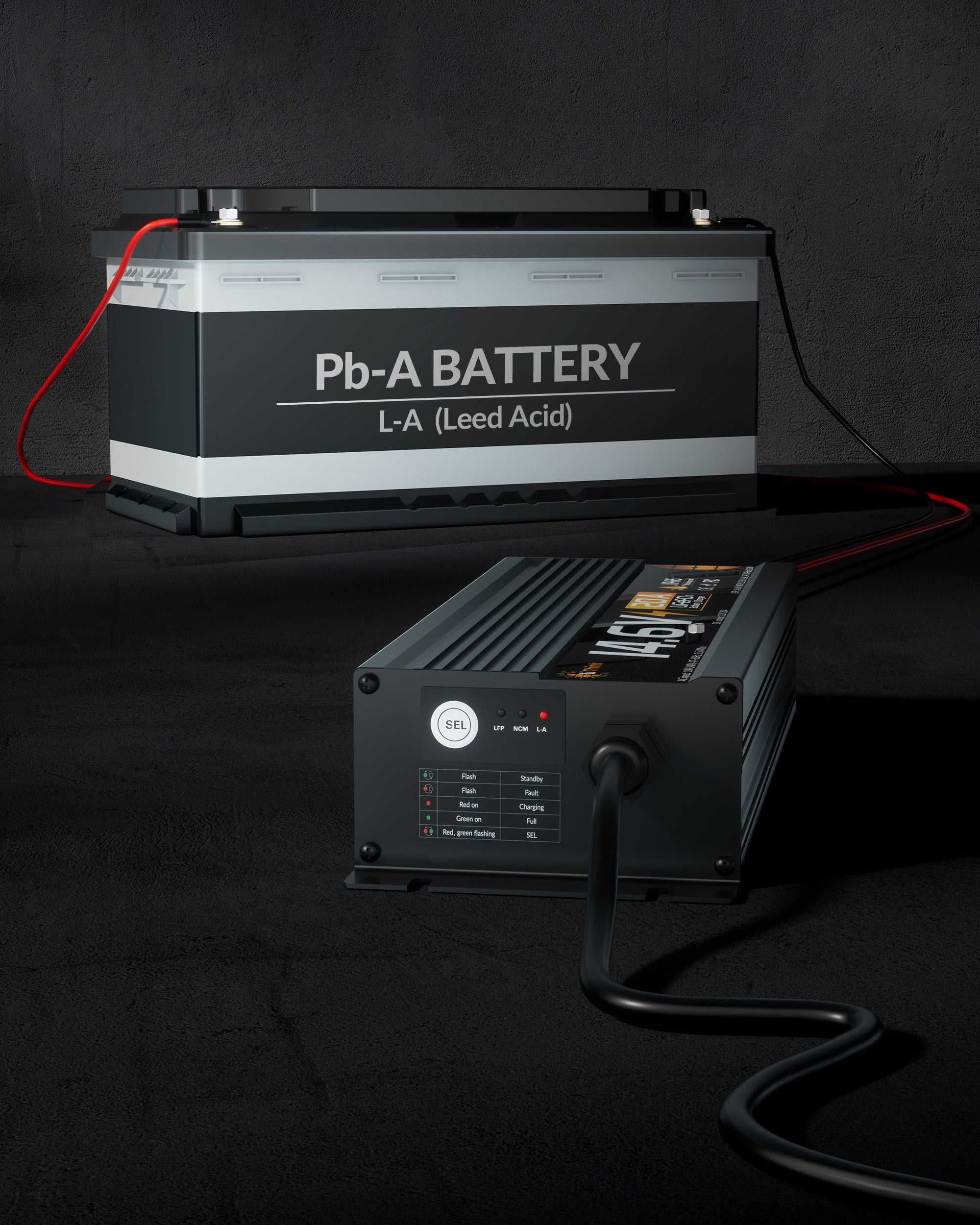

SLA / AGM • 14,7 V for LiThink 14.6V 20A Waterproof Fast Battery Charger

SLA / AGM • 14,7 V

NCM Li-Ion • 12,6 V for LiThink 14.6V 20A Waterproof Fast Battery Charger

NCM Li-Ion • 12,6 V

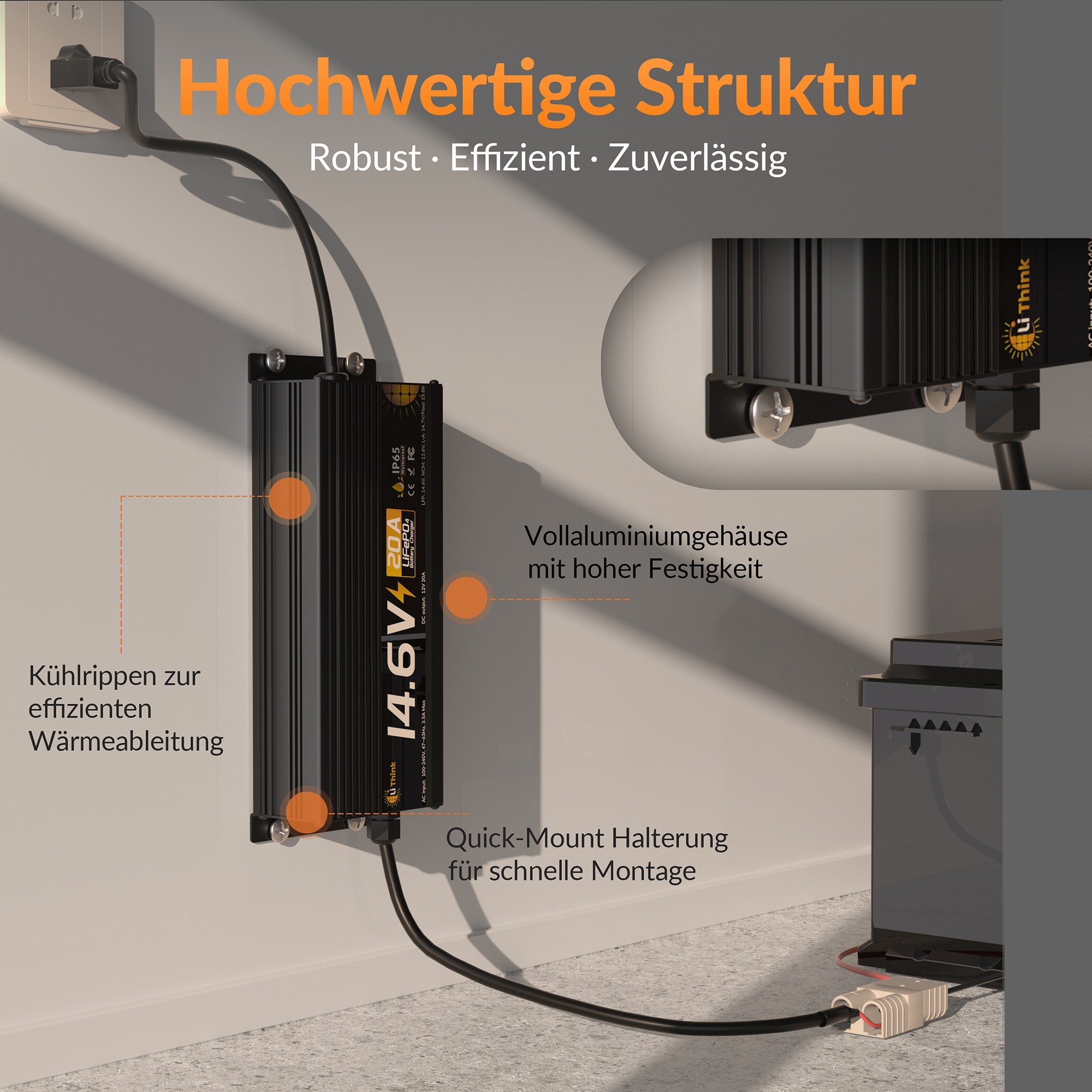

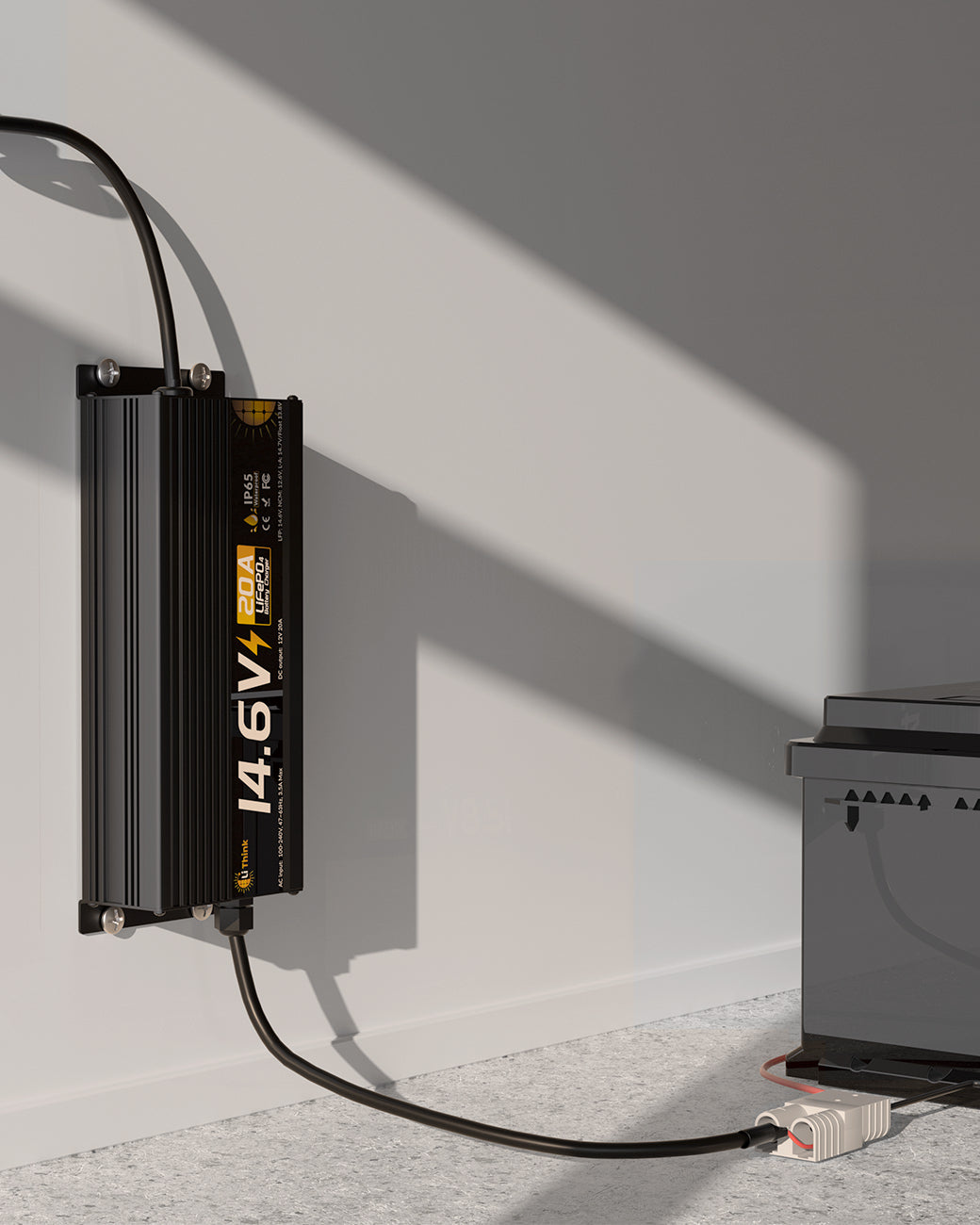

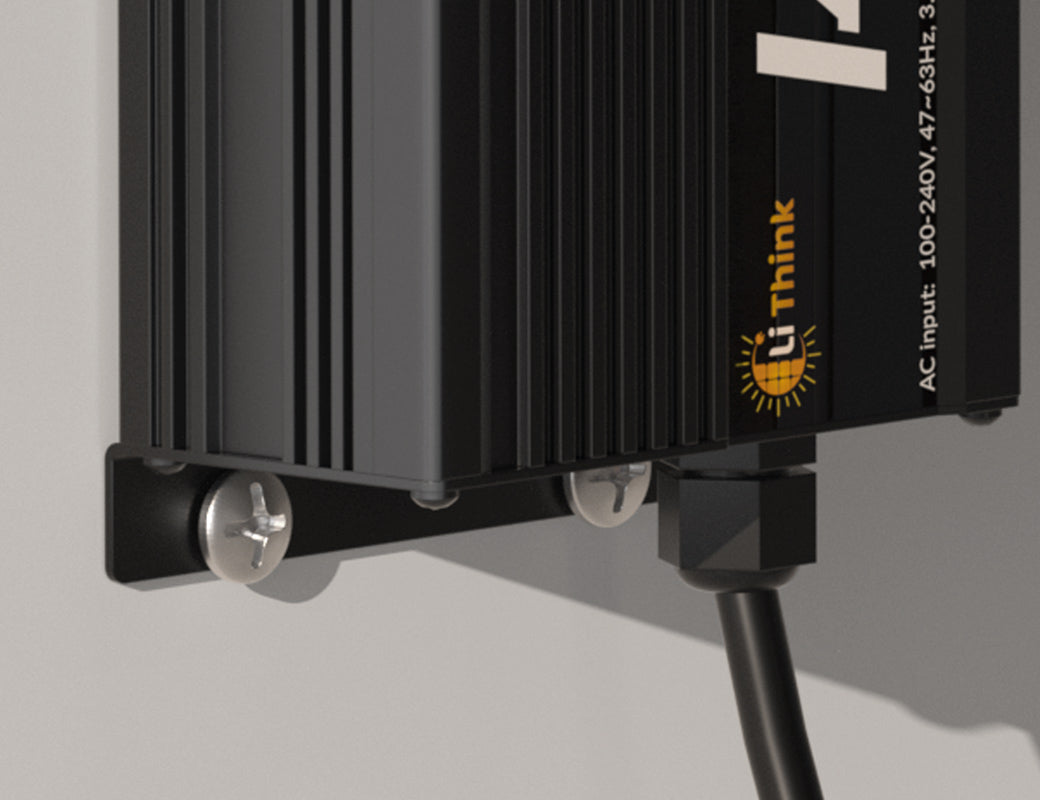

Built Tough. Easy to Mount.

Designed for everyday charging in garages, RV setups, workshops, and marine spaces — with a durable aluminum housing, efficient cooling fins, secure connector options, and a clean wall-mount installation.

Standby for LiThink 14.6V 20A Waterproof Fast Battery Charger

Specifications & What's Included

Basic Electrical Specifications
Input voltage range

100–240V 47-63Hz

Output voltage

14.6V / 12.6V / 14.7V

Output current

20A

Output power

292W

Charging profile

CC-CV

Compatible battery types

LiFePO4 / NCM / SLA (VRLA, AGM, GEL)

Safety & Protection Features
Overvoltage protection

✓

Overcurrent protection

✓

Reverse polarity protection

✓

Short circuit protection

✓

Overtemperature protection

✓

Certifications

FCC, RoHS, CE

Mechanical & Structural Specifications
Cooling method

Passive Convection

Protection class

IP65

Operating temperature range

-4°F to 122°F / -20°C to 50°C

Housing material

Aluminum Alloy

Dimensions l w h

9.84 × 3.63 × 1.97 in / 250 × 92.3 × 50 mm

Weight

5.5 lb / 2.5 kg

Output connector

Waterproof connector

Cable length

Input cable: 47.2 in / 1.20 m; Output cable: 57.1 in / 1.45 m; Extension cable: 9.8 in / 0.25 m

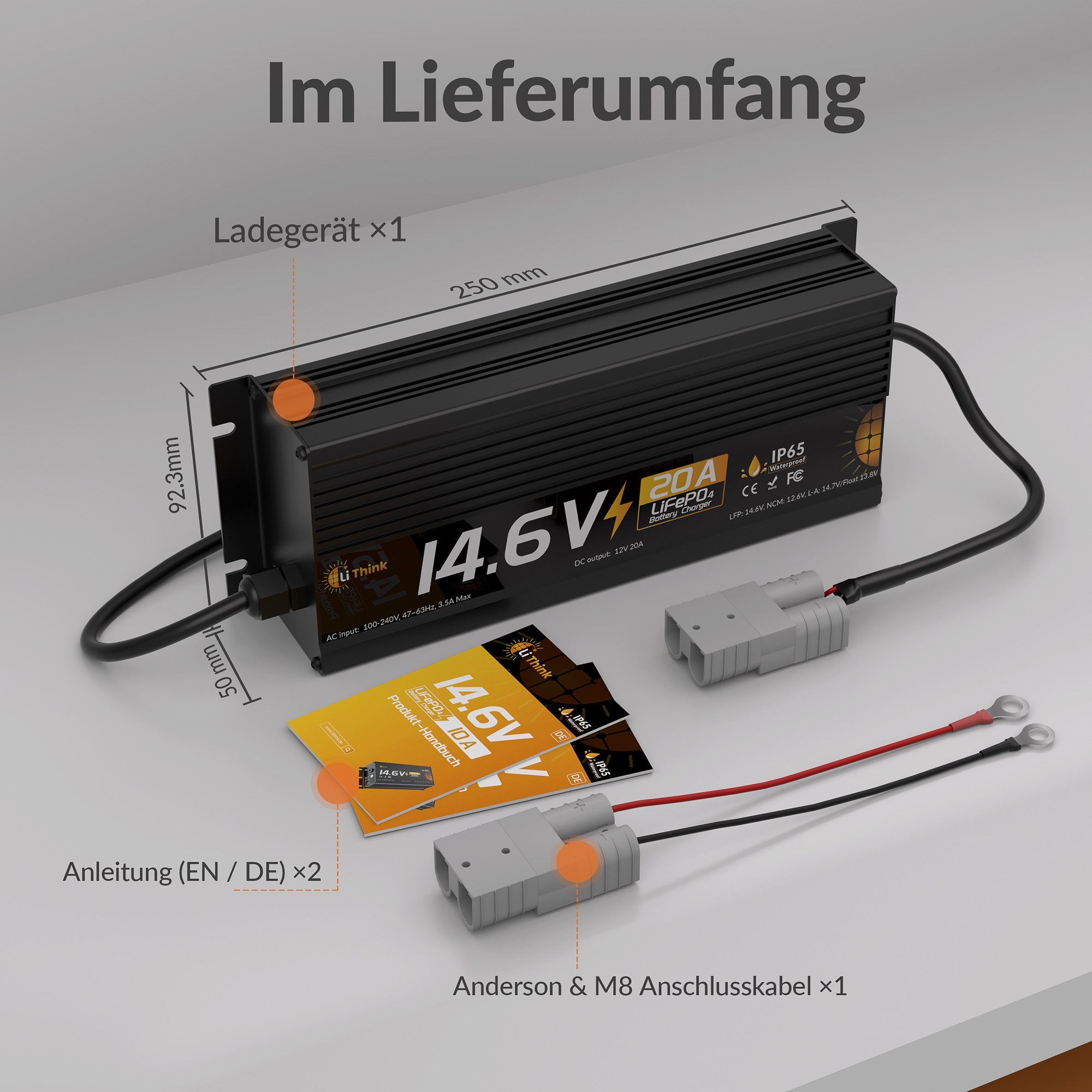

Included in the package

  • Wasserdicht

  • Handbuch

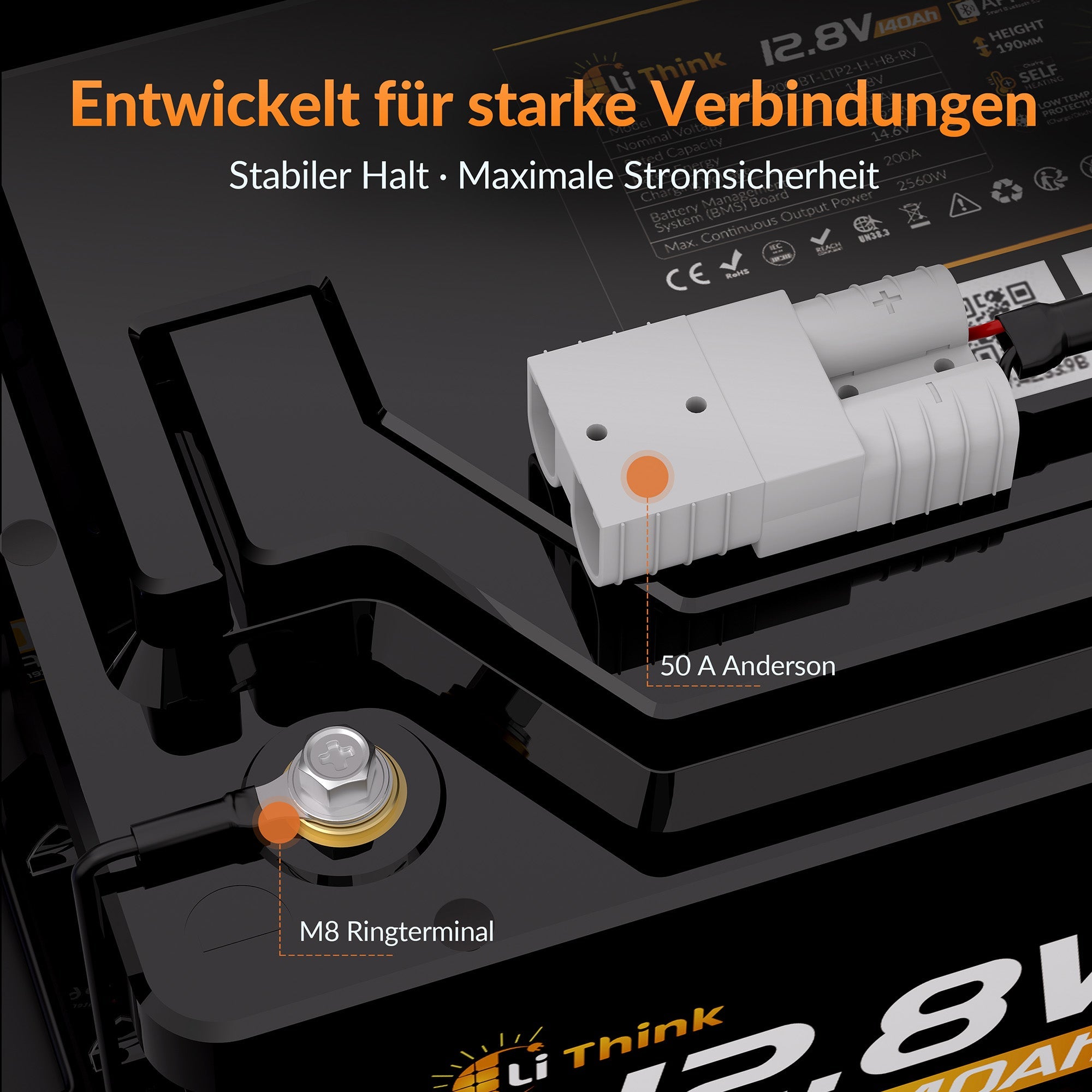

  • Anderson-Steckerkabel

FAQs

1. Which batteries is this 14.6V 20A charger compatible with?

This charger is designed for 12V battery systems and supports multiple charging modes, including LiFePO4, NCM lithium-ion, and SLA/AGM lead-acid batteries. Please select the correct charging mode before use.

2. How long does it take to fully charge a LiFePO4 battery?

Charging time depends on the battery capacity and remaining charge. As a simple estimate, divide the battery capacity by 20A. For example, a 100Ah LiFePO4 battery usually takes about 5 hours from low charge to full, depending on battery status and charging conditions.

3. Does the charger stop automatically when the battery is full?

Yes. The charger uses smart CC/CV charging and automatically switches through the charging stages. Once the battery is fully charged, it stops active charging to help prevent overcharging.

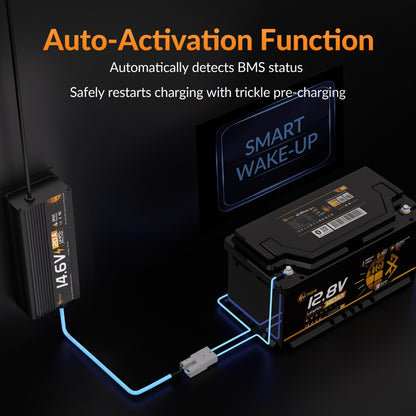

4. What does 0V activation mean?

0V activation helps wake up a deeply discharged battery when its BMS has entered protection mode. This can help restore charging when the battery appears “dead” due to low-voltage protection.

5. Is the charger safe to use?

Yes. The charger includes multiple protection features, including overvoltage protection, overcurrent protection, reverse polarity protection, short-circuit protection, and overtemperature protection for safer everyday charging.

Customers praised this 20A fast charger for significantly reducing charging times, with many reporting 100Ah batteries charging in 3-4 hours from low levels. The IP65 waterproof housing, quiet operation, and multi-chemistry compatibility (LiFePO4, NCM, lead-acid) were highlights. Build quality is solid with "heavy duty" cables and secure connectors. Some noted the fan noise, though most found it acceptable.

  • Old 10A: 8 hours. New 20A: 3 hours 15 minutes. That's 2.5 times faster.
  • Cuts my charge time to under 3 hours from 20% to full. Battery doesn't get hot during charging.
  • Reached full charge in about four hours. No fan noise. Reliable upgrade over previous charger.
Speed (positive)Modes (positive)Charger (positive)Battery (positive)Quality (positive)
  • 5 stars: 22 (73%)
  • 4 stars: 8 (27%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
R
R.G.

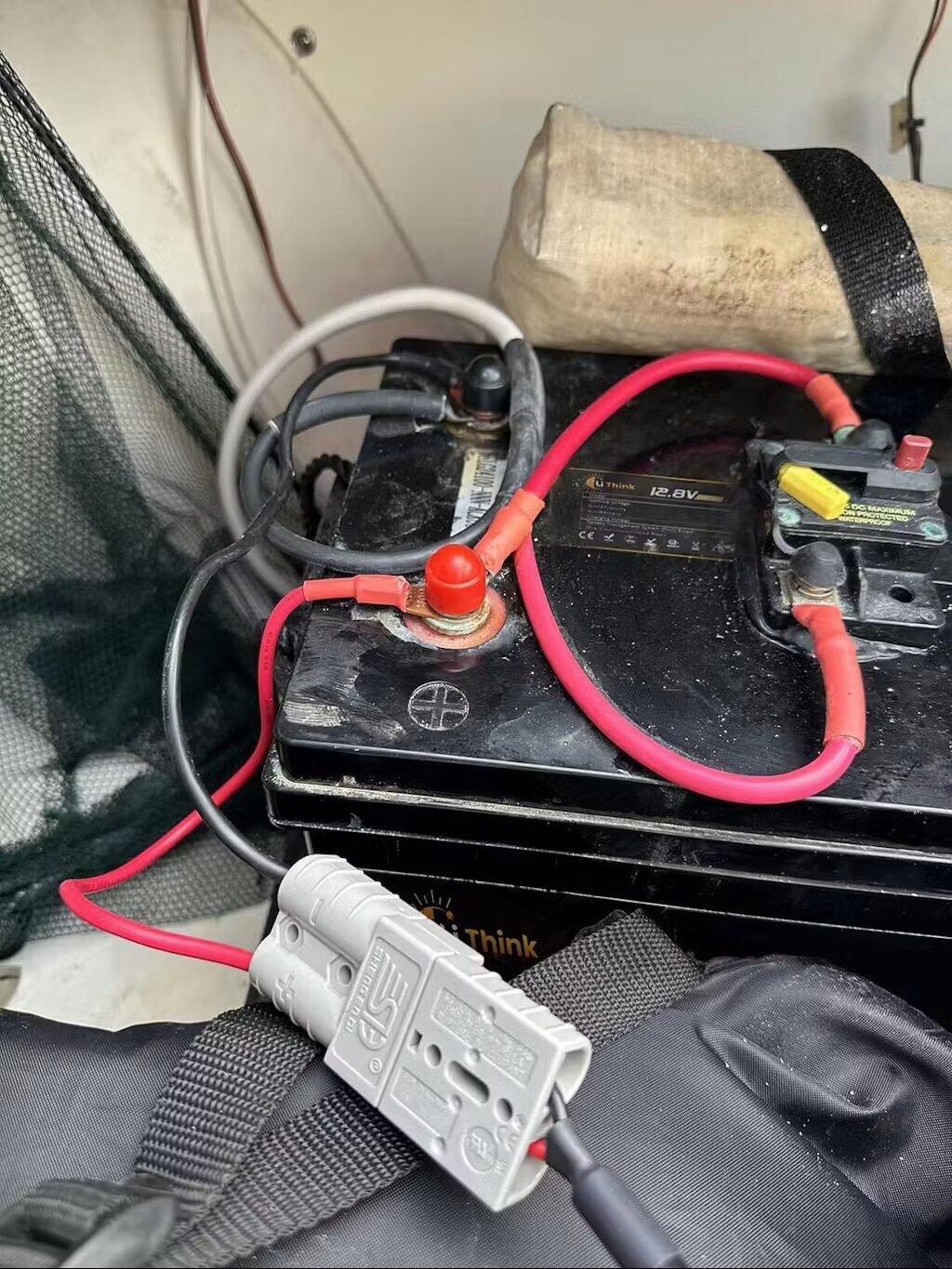

I installed this 14.6V 20A charger for the 12V LiFePO4 battery in my boat. The included connector fits securely and makes it easy to disconnect the charger when the boat is in use. The cables feel heavy enough for the current, and the connection has remained firm without getting loose.

On my last charge, the battery was at roughly 30% when I plugged it in. It reached full charge in about four hours, including the slower final charging stage. The aluminum case became warm, which is normal, but it never felt excessively hot. Since it uses passive cooling, there is also no fan noise.

The LED indicators are simple to follow, and charging has started normally every time. Shipping was quick, the packaging protected everything well, and the charger arrived without damage. After several charging cycles, it has been a reliable and convenient upgrade over my previous lower-current charger.

R.G. review photo
K
K.M.

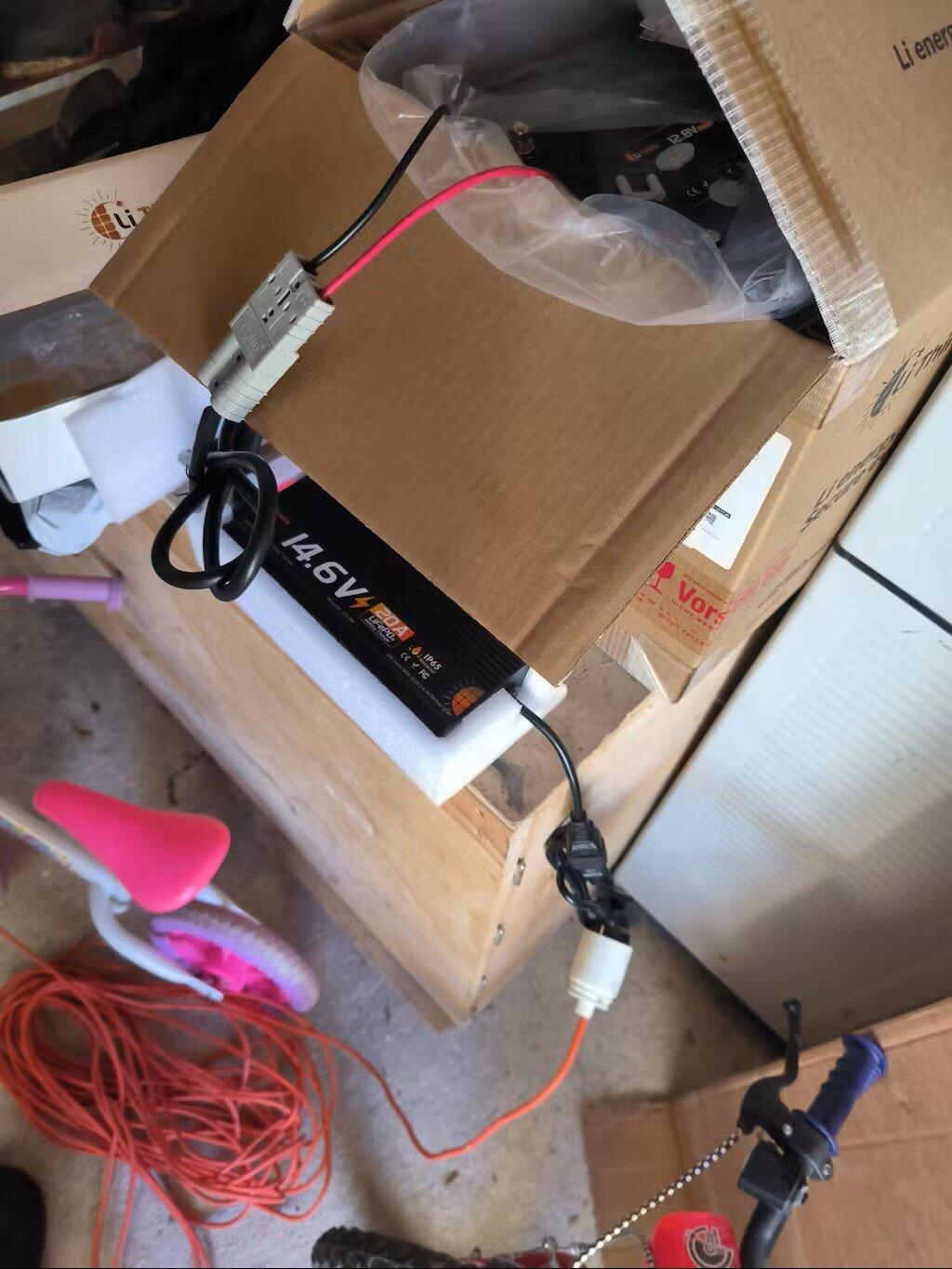

The charger arrived quickly and was packed very well. The box and charger were both in perfect condition.

K.M. review photo
L
L.H.

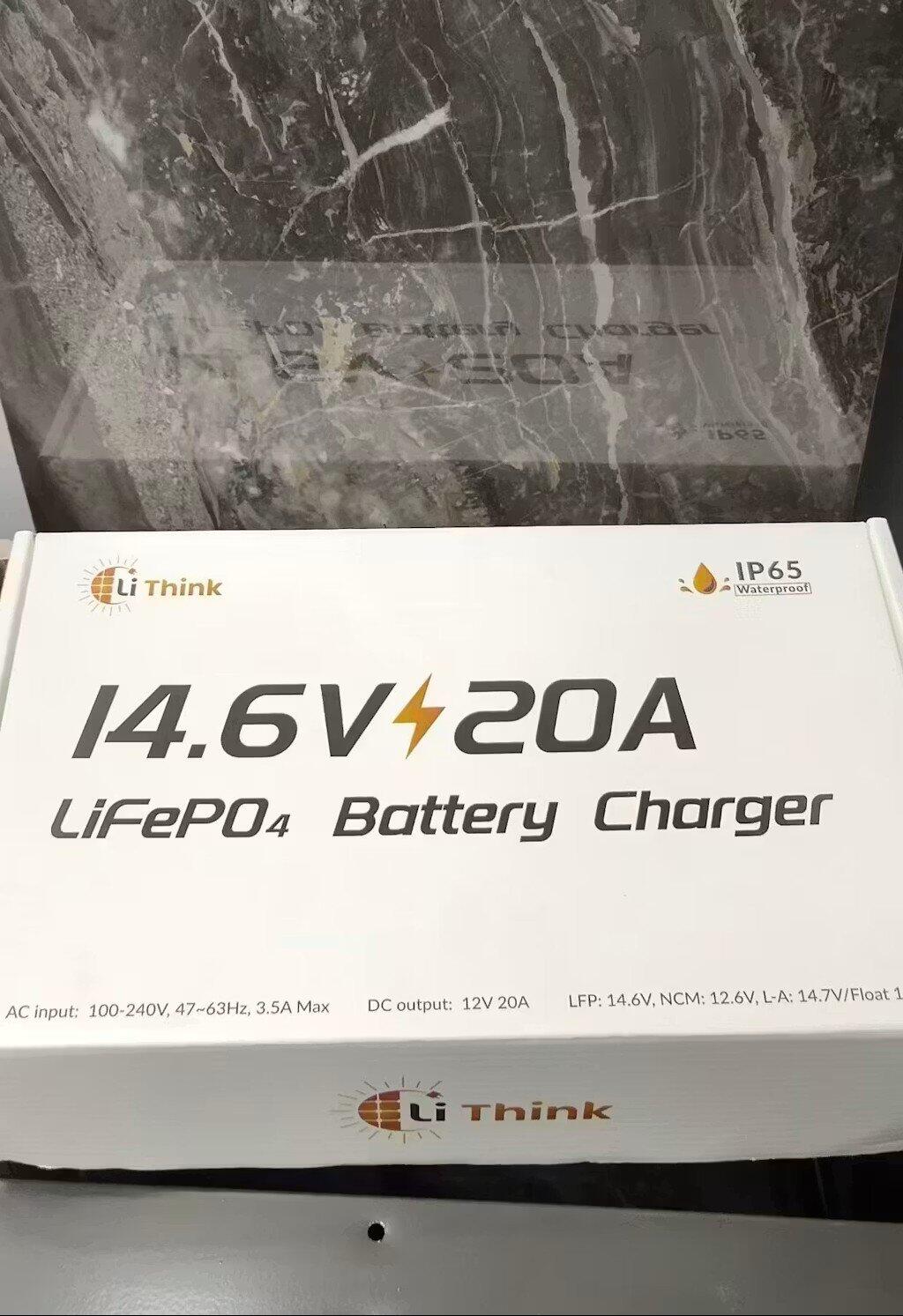

The charger arrived well protected, and everything needed for the connection was included. The plug and battery connector fit securely, and the cables feel thick enough for the 20A output. I tested it with my 12V 100Ah LiFePO4 battery in the garage, and it started charging immediately after I selected the correct battery mode.

The battery was at about 27% when I connected it. It reached full charge in just under four hours, including the slower finishing stage near the end. That is a big improvement over the 10A charger I used before. The aluminum housing became warm during charging, but not excessively hot, and there was no fan noise.

The LED indicators are simple but useful for checking the charging status at a glance. So far, the output has been stable, the connectors stay firmly in place, and the charger has worked exactly as expected. A practical choice for anyone who wants faster charging without moving to an oversized charger.

L.H. review photo
T
T.W.

Charges much faster than my old charger and has been working great so far. The fan does come on, but it’s not a problem for me.

Z
Z.H.

I monitored the battery through its Bluetooth app while charging. The current stayed close to 20A during the main charging stage, then gradually reduced as the battery approached full. The charging behavior looked normal and controlled, with no fault warnings or interruptions.

W
W.Q.

The charger is compact enough to store in my RV but powerful enough to make a meaningful difference in charging time. It is much more convenient when we only have a few hours of shore power available.

V
V.M.

A battery had shut down after being left connected to a small load for too long. My basic charger could not detect it, but this LiThink charger activated the battery and started the normal charging process. It has worked fine since then.

T
T.L.

I use it to recharge the house battery on my fishing boat after returning to the dock. The IP65 housing gives me more confidence in a damp marine environment, although I still keep it protected from direct water exposure. Charging has been consistent, and the unit does not produce fan noise inside the cabin.

S
S.H.

I bought this charger because I have both a LiFePO4 battery and an older AGM battery in the garage. The selectable charging modes make it more useful than buying two separate chargers. I always double-check the setting before connecting, and both batteries have charged normally.

R
R.E.

The output cable and connector feel suitable for the full 20A current. Nothing feels loose or undersized. I have completed more than a dozen charging cycles, and the connections have remained cool and secure.

P
P.H.

This charger is installed in the storage compartment of my travel trailer. I use it with a 12V 165Ah LiFePO4 battery when shore power is available. After a weekend trip, the battery was at about 48%, and the charger brought it back to full in a little over four hours. The LED status lights are easy to see when checking the compartment.

J
J.C.

I expected a 20A charger to have a noisy cooling fan, but this model uses the aluminum housing for heat dissipation. It stays quiet throughout the charging process. The case becomes warm under load, but never uncomfortably hot in my setup.

E
E.T.

The charger arrived earlier than expected and was protected well inside the box. The housing and connectors were in perfect condition. I connected it to my battery the same day, and it worked without any issues.

G
G.S.

I upgraded from a 10A charger to this 20A model for my 100Ah LiFePO4 battery. Starting at around 25% charge, it reached full in approximately four hours. The last part slowed down as expected, but the total charging time was still much shorter than before.

H
H.S.

I purchased this charger for a high-capacity 12V LiFePO4 battery. It reduces charging time compared with the smaller charger I used before, without making the process complicated. I also appreciate having LFP, NCM, and L-A modes available in one device. The case feels durable, and the IP65 rating is useful because I sometimes charge near an RV storage compartment where the environment is not completely dry.

D
D.F.

The 20A output is a noticeable improvement over my old charger. It works well with my larger 12V battery.

S
S.G.

The 20A output saves time compared with my older 10A charger. I also like the three charging modes because I can use the same charger for different battery types. The IP65 housing feels practical for garage and outdoor-adjacent use.

J
J.F.

Good charging speed for larger 12V batteries. The controls are easy to understand.

J
J.C.

This 20A charger is a good match for larger 12V LiFePO4 batteries. The charging speed is practical, and the LFP/NCM/L-A mode options make it more versatile. I also like the IP65 design because my charging area is not always perfectly dry.

M
M.C.

Charges my 12V battery faster than the 10A charger. The build feels solid and easy to use.

R
R.

The green/red LED is bright. I can see it from across my shop. No squinting.

F
F.G.

Asked support if I can use this 20A charger on a 50Ah battery. They said yes but recommended not doing it regularly because the 0.4C charge rate is a bit high for daily use.

E
E.V.

Tested this 20A charger against my old 10A charger on the same 100Ah battery from 20% to 100%. Old 10A: 8 hours. New 20A: 3 hours 15 minutes. That's 2.5 times faster. The bulk charge phase was a consistent 20A for the first 2 hours. Then tapered down. The charger got warm but not hot. The fan is audible but not annoying. I ran it inside my RV while sleeping and it didn't bother me (fan is about 45 decibels, like a quiet laptop). For quick turnaround between camping spots, this is worth the extra cost.

S
S.R.

Takes my 100Ah from dead to full in about 5 hours. Perfect for overnight.

R
R.K.

Ordered this with my battery. They shipped them separately for some reason but both arrived on the same day. The charger came in its own box with foam padding. Good quality. No damage, everything in the box was organized nicely.

T
T.

Needed something that could top off my 165Ah battery between anchorages while cruising. This 20A charger cut my charge time from 6 hours down to about 2.5. The fan is present but not annoying, I can sleep in the v-berth with it running. One thing I appreciate is the thermal cutoff. I left it running in a hot engine bay (my mistake) and it shut itself down instead of melting. Cooled off and worked fine. Solid safety engineering.

P
P.C.

I was skeptical about the "waterproof" claim so I deliberately splashed water on it while charging. Nothing happened. The fan is a bit louder than I expected but it only runs during the bulk charge phase. Cables are thick and flexible even in cold weather. Solid charger overall. Would buy again.

P
P.D.

This charger is like a fire hose compared to my old 10A. Takes my 100Ah battery from 20% to full in about 4 hours. The waterproof casing is solid and the cables are heavy duty. Very impressed with the build quality.

Y
Y.R.

This charger is like a fire hose compared to my old 10A. Takes my 100Ah battery from 20% to full in about 4 hours. The waterproof casing is solid and the cables are heavy duty. Very impressed.
