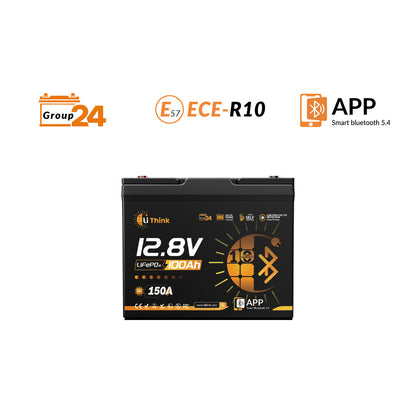

LiThink 12V 100Ah Group 24 LiFePO4 Battery with 150A BMS, Bluetooth & Self-Heating — for RVs, Marine & Solar
LiThink 12V 100Ah Group 24 LiFePO4 Battery with 150A BMS, Bluetooth & Self-Heating — for RVs, Marine & Solar
LiThink 12V 100Ah Group 24 LiFePO4 Battery with 150A BMS, Bluetooth & Self-Heating — for RVs, Marine & Solar

Why it stands out

Group 24

Size

Alloy

Internal Frame

Low-Temp

Cut-Off

5.0

Bluetooth

30+

Protections

Self

Heating

Why it stands out

Group 24

Size

Alloy

Internal Frame

Low-Temp

Cut-Off

5.0

Bluetooth

30+

Protections

Self

Heating

LiThink 12V 100Ah Group 24 LiFePO4 Battery with 150A BMS, Bluetooth & Self-Heating — for RVs, Marine & Solar

Sale price $249.99Regular price $399.99 24999:39999 Save $150.00
Ten-year warranty & 30-day free return policy included
150A Smart BMS
More current headroom for demanding 12V loads and inverter setups.
550A Surge Support
Built to handle short start-up peaks from high-draw loads.
Reinforced Inside
Alloy-frame internal structure for vibration and long-term safety.

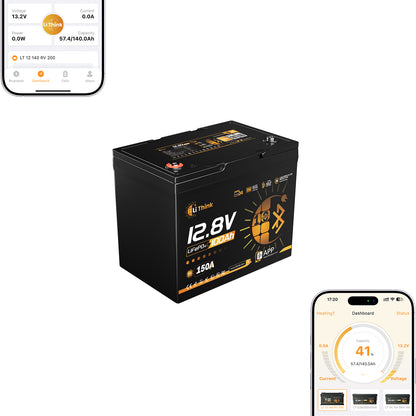

Bluetooth App
Monitor SOC, voltage, current, temperature, and alerts.
Group 24 Upgrade
A practical lithium replacement for many Group 24 battery spaces.
Self-Heating
Supports safer charging in cold-weather conditions.
IP65 Protection
Sealed housing helps protect against dust and water jets.
4P4S Expansion
Flexible setup for RV, marine, solar, and backup systems.
Core Battery Advantages
  • Group 24 LiFePO4 upgrade: A compact lithium replacement for RVs, boats, solar systems, and backup power setups that need stable 12V energy.
  • Longer-lasting than lead-acid: Rated at 12.8V 100Ah / 1280Wh and designed for 4,000+ cycles, helping reduce replacement frequency and maintenance.
  • Bluetooth smart monitoring: Check SOC, voltage, current, temperature, alerts, and charging/discharging status directly from the app.
  • Lightweight 12V power: Approx. 10.3 kg / 22.7 lbs, making it easier to install, move, and upgrade compared with bulky lead-acid batteries.
Internal Build & Safety
  • Reinforced internal structure: Built with a high-strength alloy frame, fiberglass busbar sleeving, six-sided epoxy insulation plates, and screw-locking hardware to improve vibration resistance and long-term safety.
  • Built for mobile power environments: Helps reduce risks from vibration, movement, abrasion, and electrical contact during RV, marine, and off-grid use.
  • IP65 protection: Sealed housing helps protect against dust and water jets, making it suitable for outdoor, RV, marine, and mobile power environments.
  • Low self-discharge: Monthly self-discharge ≤2%, making storage easier when the battery is not in use.
  • Solid terminal hardware: M8 × 14 mm terminals with recommended tightening torque of 12 N·m; discharge cut-off voltage: 10.8V.
Power Output & Charging

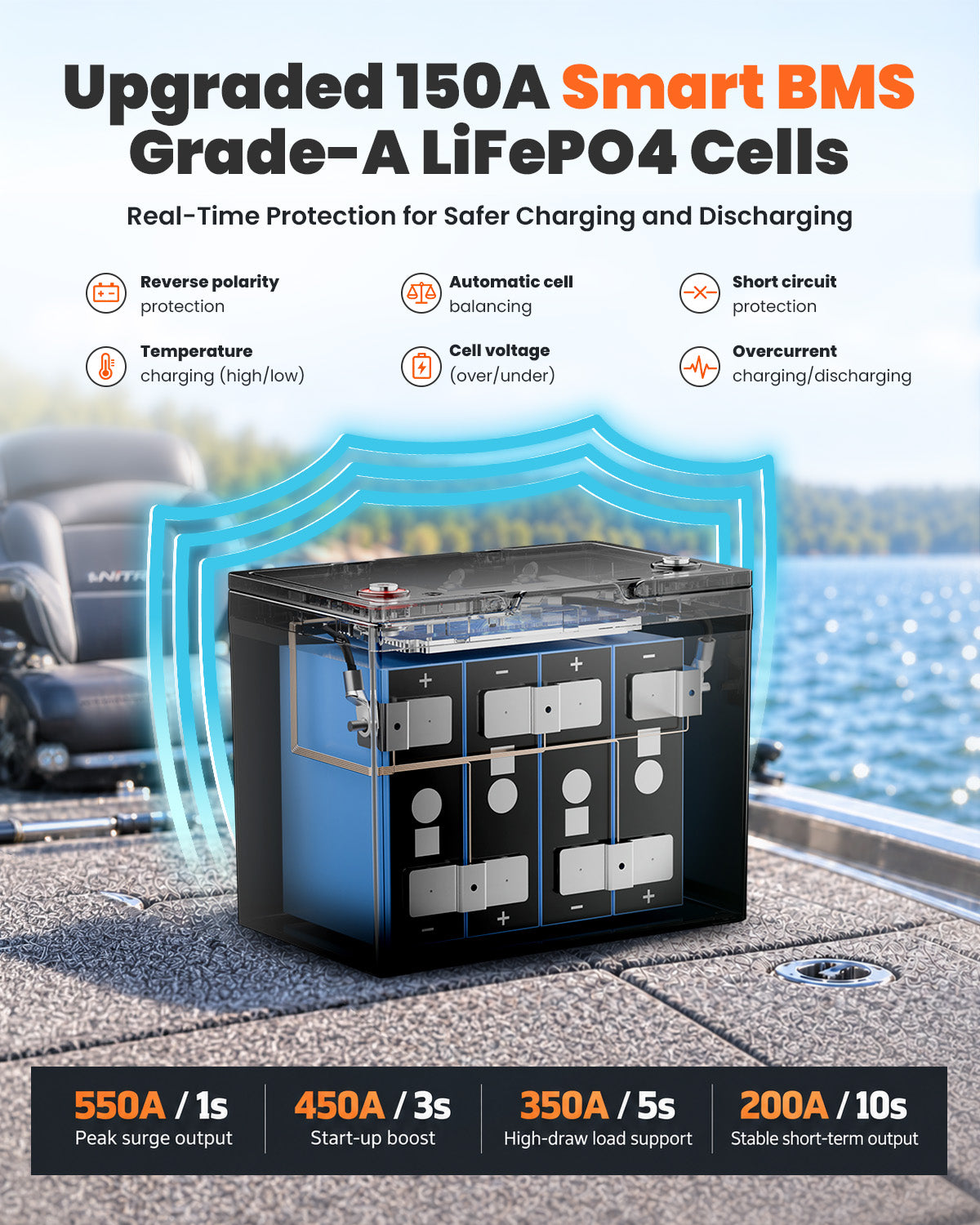

  • 150A smart BMS: Provides intelligent protection against overcharge, over-discharge, overcurrent, short circuit, and temperature risks.
  • Max. continuous discharge current: Up to 150A, supporting demanding 12V loads and inverter systems.
  • Surge discharge support: 550A/1s, 450A/3s, 350A/5s, 200A/10s — built to support short start-up peaks from high-draw loads.
  • Max. continuous output power: Up to 1920W, giving your 12V setup stronger usable power.
  • Charging method: CC/CV charging with 14.6V charge voltage.
  • Charging current: Recommended charging current 20A; max. continuous charging current 150A. Estimated charging time: 20A @ approx. 5 hours.
Cold-Weather Protection
  • Automatic self-heating: When charging in cold conditions, the built-in heating system helps warm the cells for safer winter charging. Minimum charging current required for heating: 10A.
  • Low-temperature charging protection: Charging stops at 0°C / 32°F and resumes at 5°C / 41°F.
  • Typical heating time: Approx. 70–90 minutes from -10°C / 14°F and 100–150 minutes from -20°C / -4°F at 8A heating current.
  • Working temperature range: Charge 0°C to 50°C / 32°F to 122°F; discharge -20°C to 60°C / -4°F to 140°F.
Applications & Expansion
  • Versatile 12V applications: Suitable for RVs, camper vans, boats, trolling motors, off-grid solar systems, garage/workshop power, and backup power setups.
  • Expandable up to 4P4S: Supports flexible system expansion for higher voltage, greater capacity, and more use cases across RV, marine, solar, and backup power systems.
Choose Your Option
Choose Your Option: 1× Battery
Pay conveniently
image/svg+xml Created with Sketch.
Reliable delivery

Free U.S. Shipping — Fast delivery from our U.S. warehouse

Engineer-Level Support — Real help when you need it

10-Year Charger Warranty — Reliable coverage for daily use

30-Day Easy Returns — Simple, stress-free returns

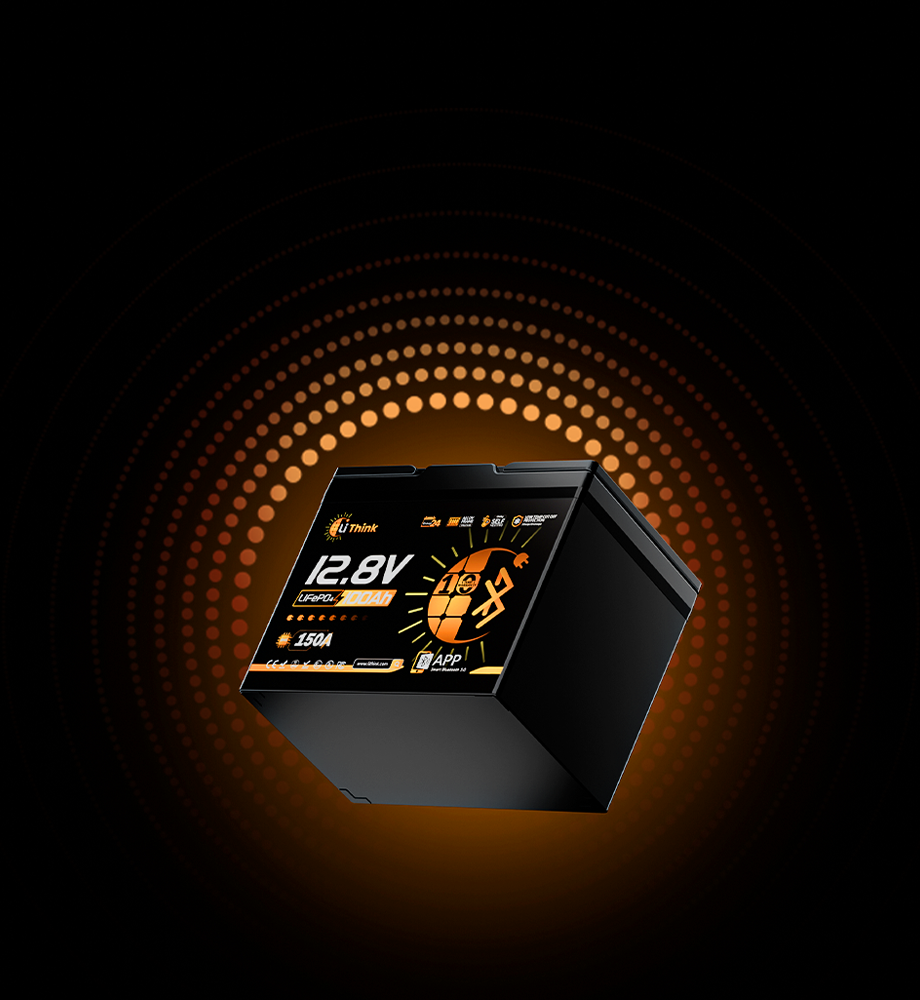

12V 100Ah Group 24

Built Better for 12V Power
High-output BMS, surge support, Bluetooth monitoring, and reinforced internal structure — built for RVs, marine use, solar, and backup power.
150A Smart BMS

More current headroom for demanding 12V loads.

Bluetooth 5.0

Battery data at a glance.

Self-Heating

Built for cold-weather charging.

Low-Temp Protection

Safer in winter.

4P4S Expansion

Flexible for more power setups.

Reinforced Inside

Alloy-frame structure for safer mobile power.

550A Surge Support

Handles short start-up peaks from high-draw loads.

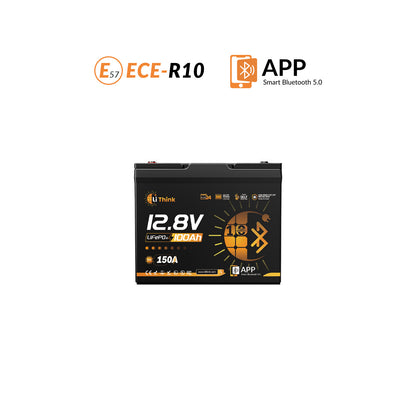

ECE R10 Certified

Tested for RV EMC compatibility.

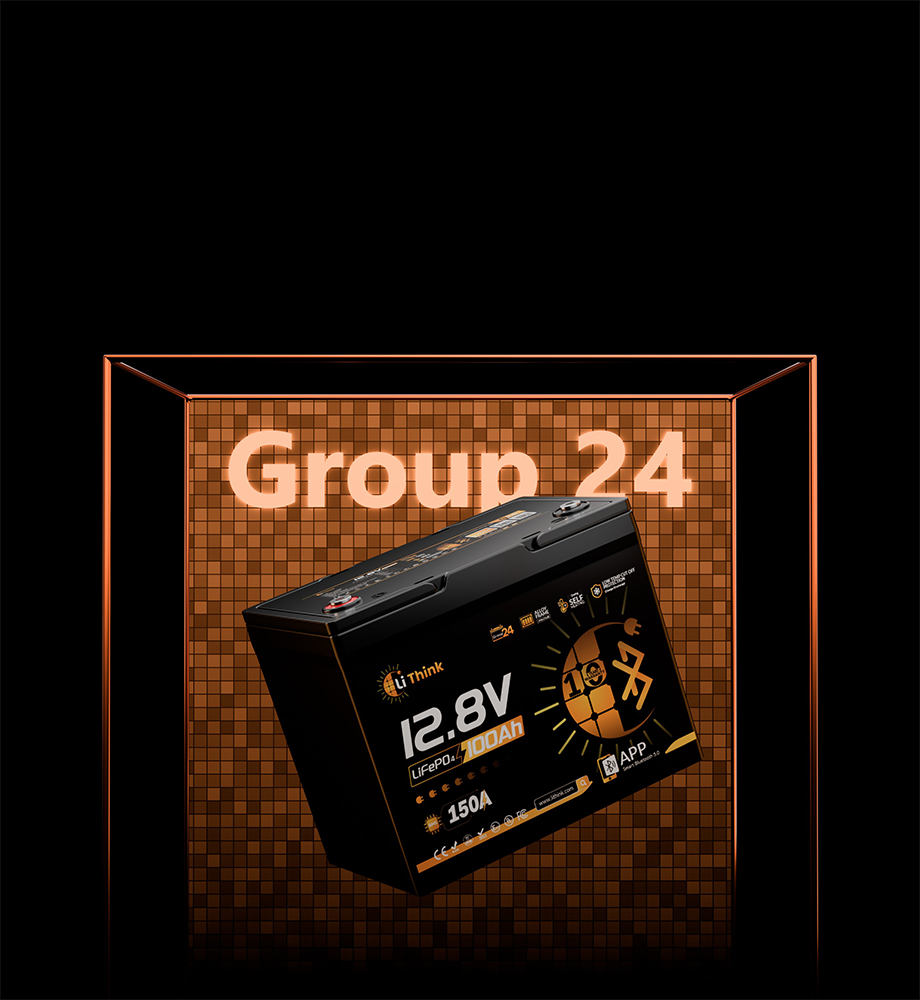

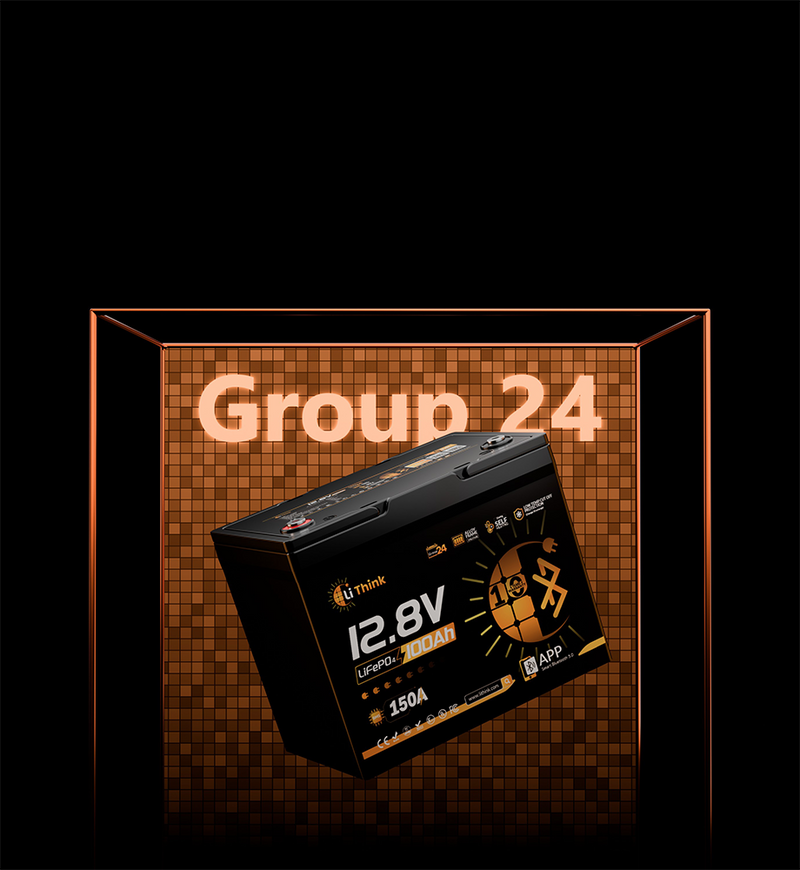

Group 24

100Ah power in a smaller, easier-fit case.

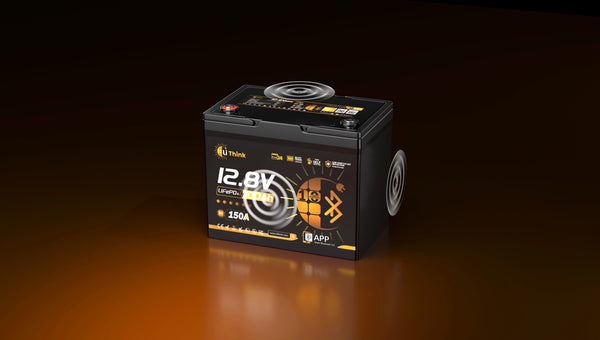

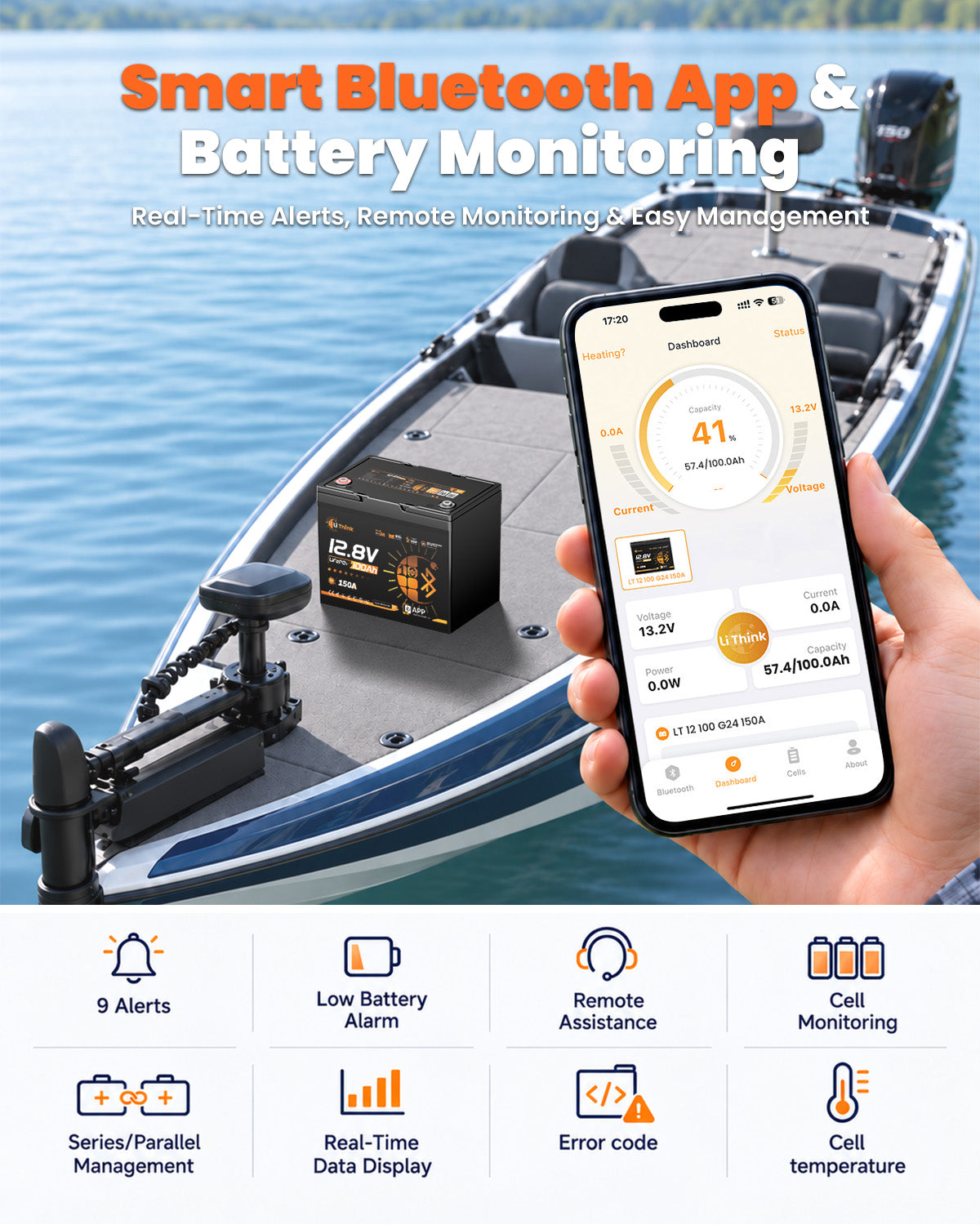

Bluetooth app

Smarter monitoring, right from your phone.

Real-time data

SOC, voltage, current, and temperature — all in one view.

9 alerts

Key protection alerts help you react faster.

Remote support

Share battery status for quicker troubleshooting.

Series/parallel management

Easier monitoring for expanded battery banks.

Low-battery alert

Know when it’s time to recharge.

Cell monitoring

Track cell voltage for healthier battery performance.

Bluetooth app
Real-time data
9 alerts
Remote support
Series/parallel management
Low-battery alert
Cell monitoring

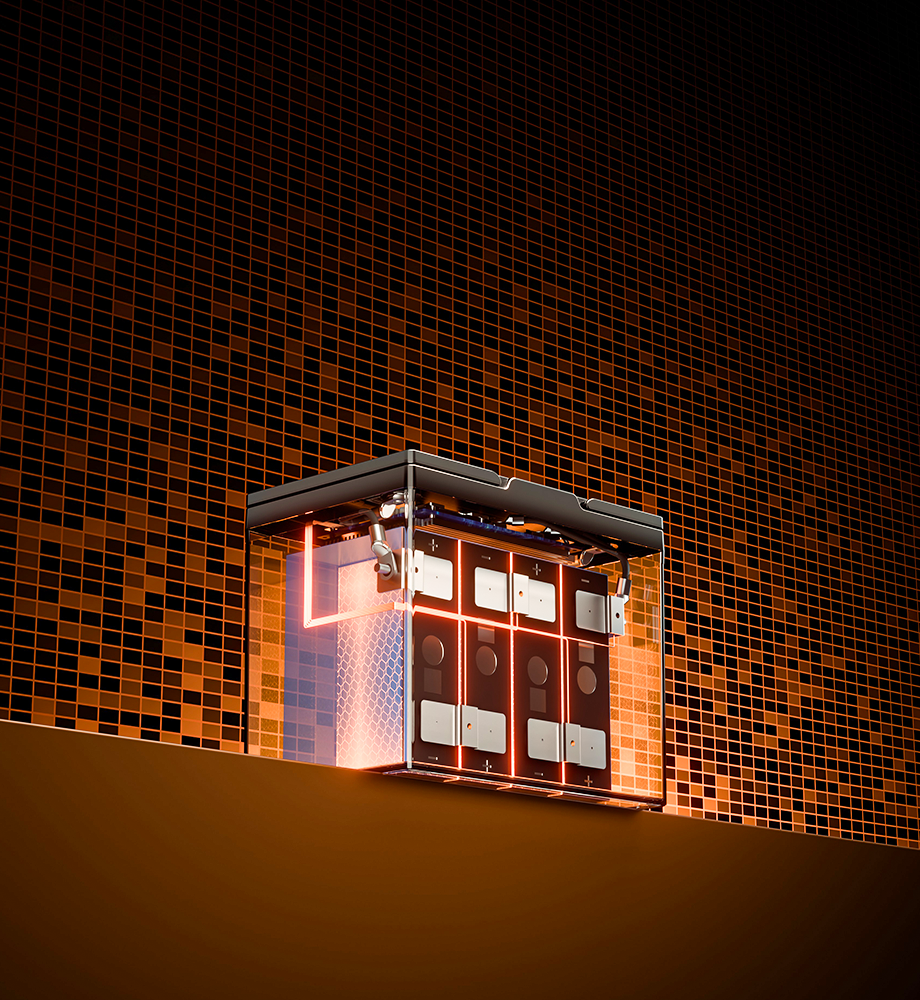

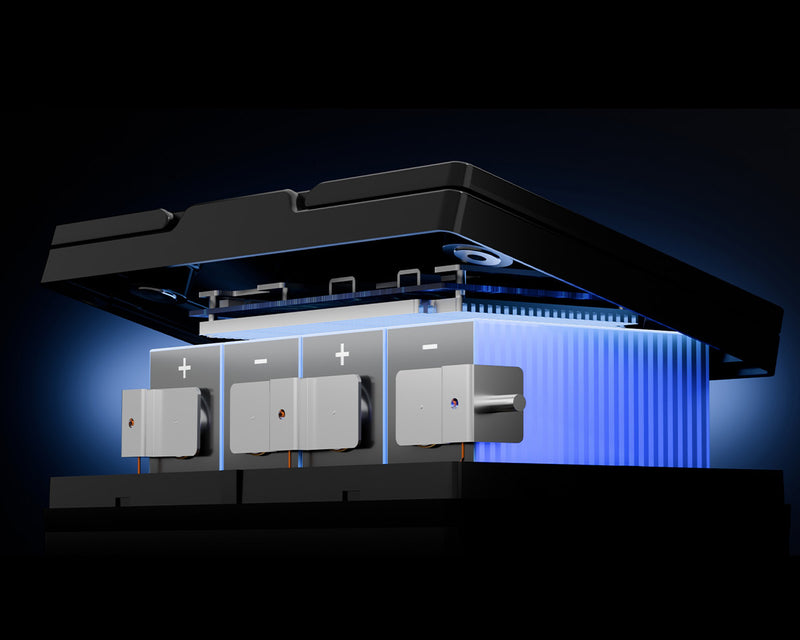

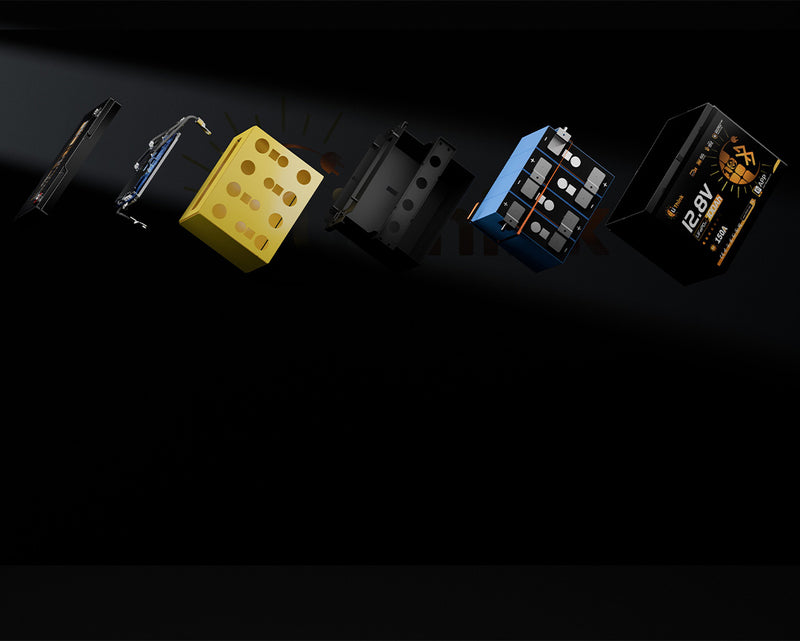

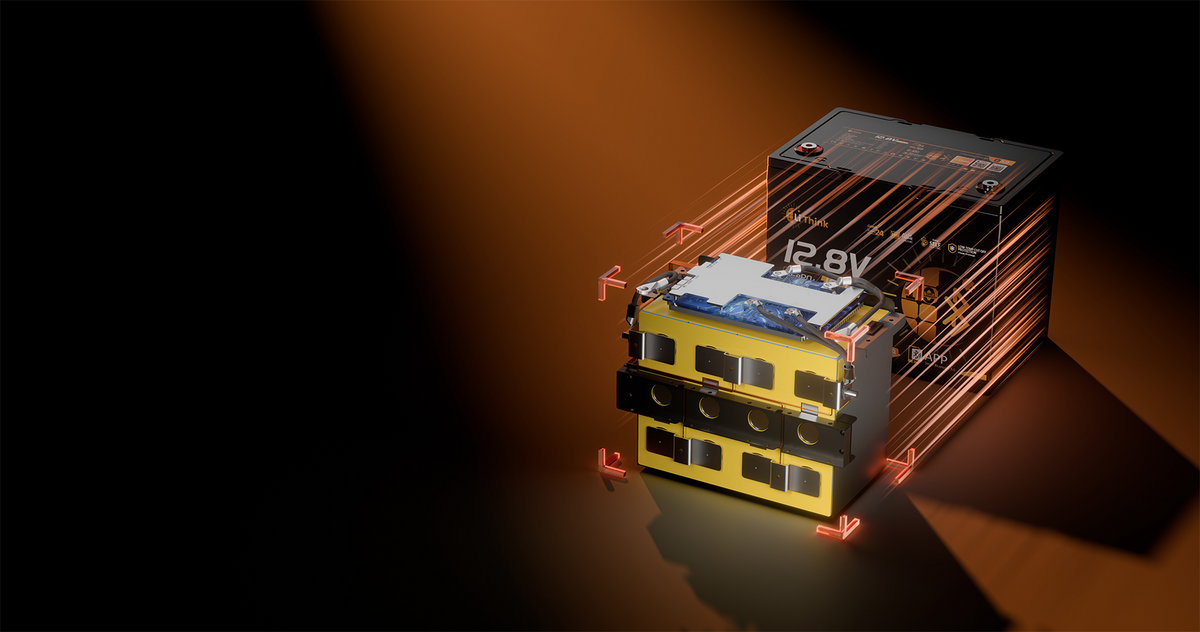

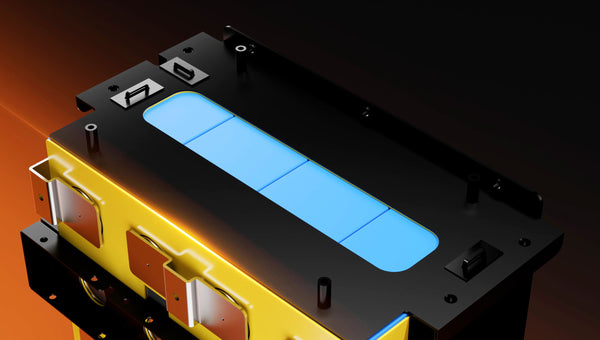

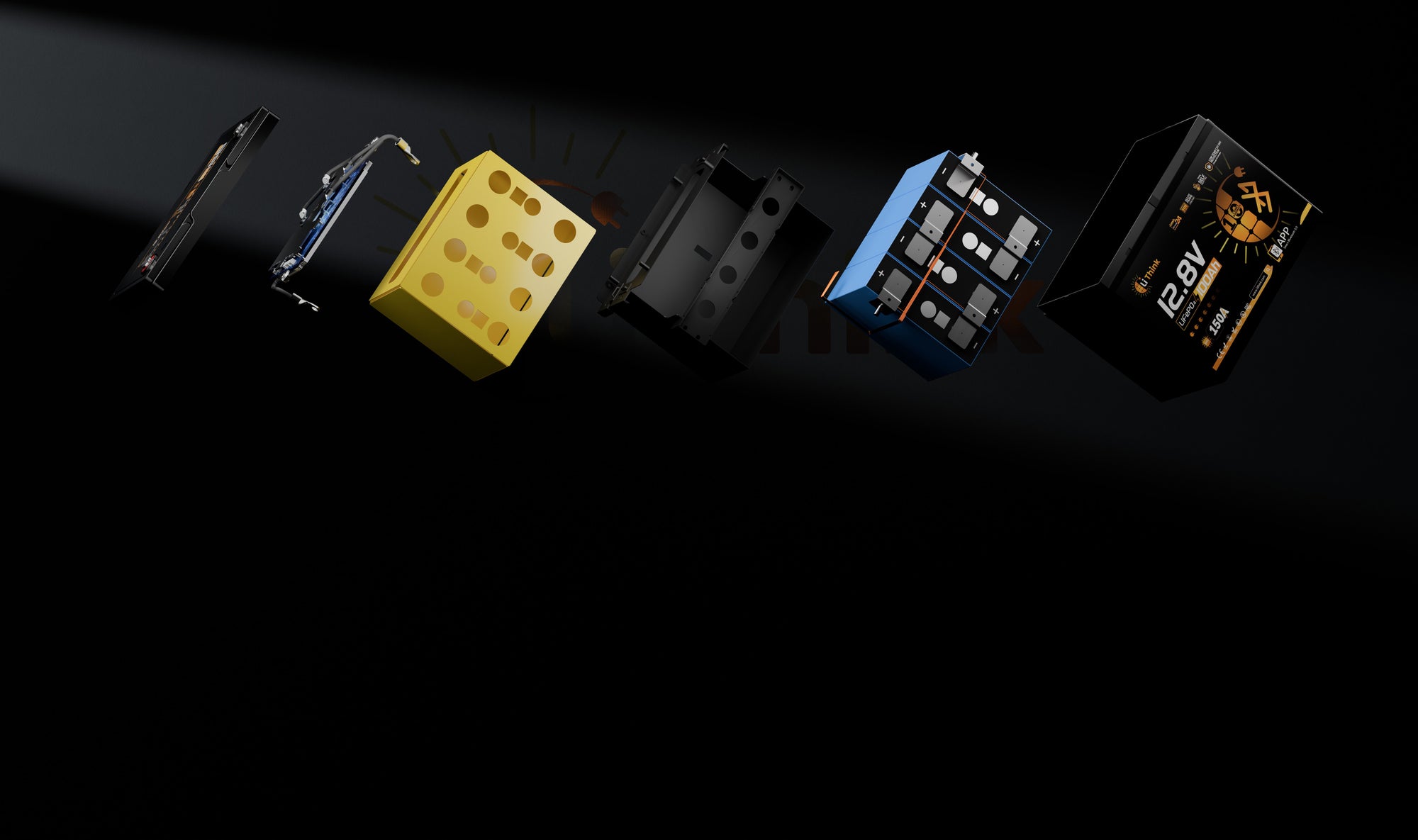

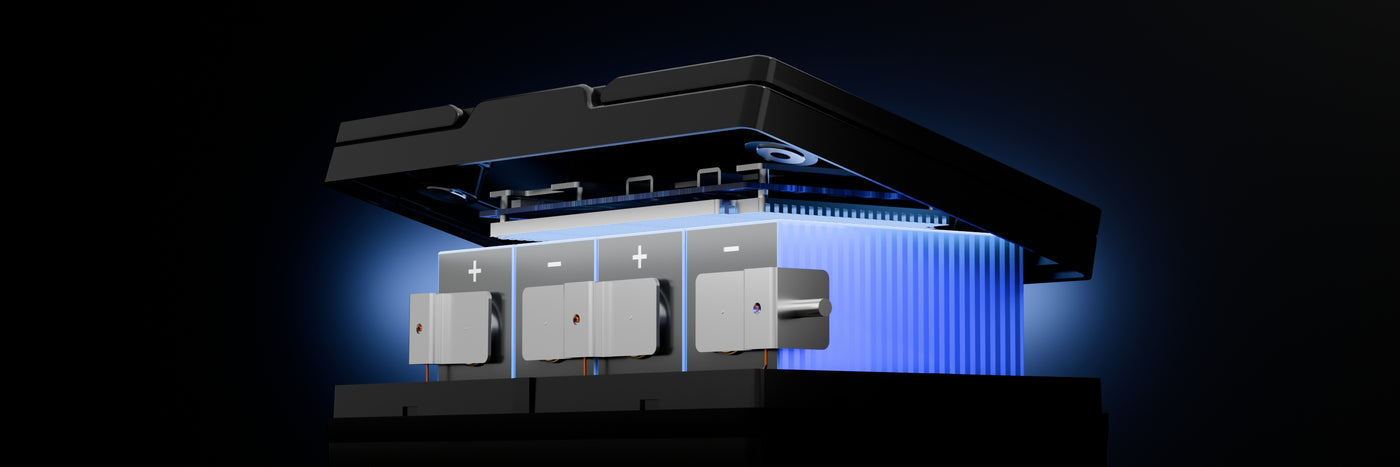

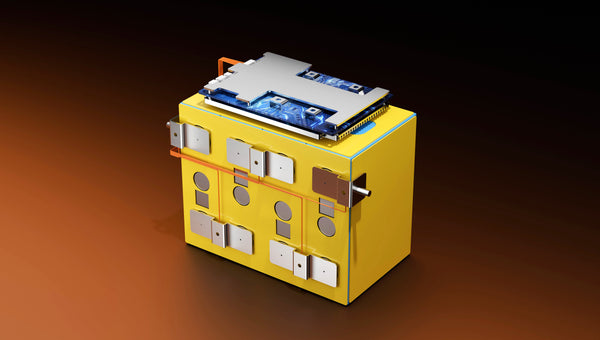

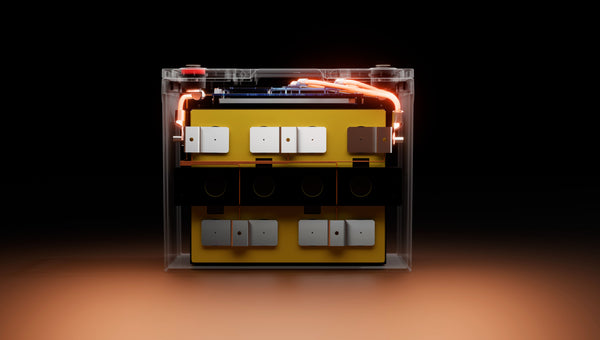

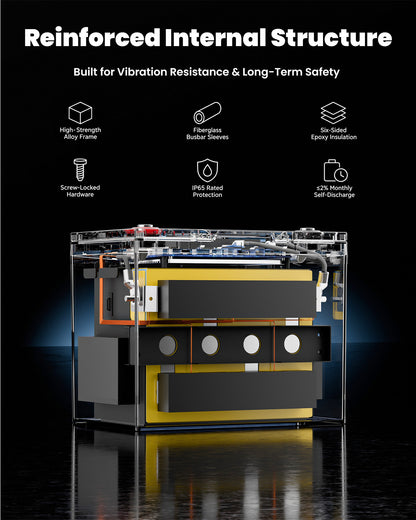

Industry-Leading Internal Structure

Triple temperature sensing
Real-time thermal monitoring helps protect the cells during charging, discharging, and cold-weather use.
Alloy support frame
Anti-swelling | leak-resistant | vibration-resistant | up to +30% longer cell life
Six-sided epoxy insulation
Full-sided epoxy insulation helps reduce contact risks and improves long-term electrical safety.
Magnetic Emergency Switch
Fiberglass sleeves protect busbars from abrasion and accidental contact under high-current output.

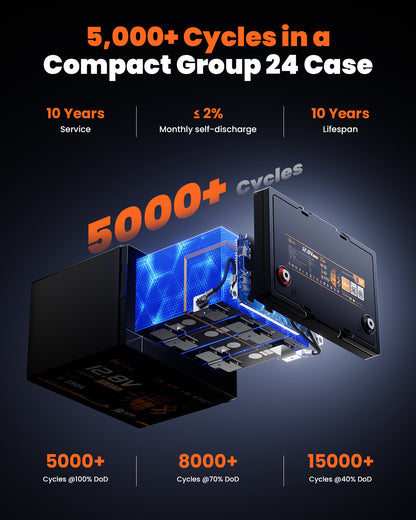

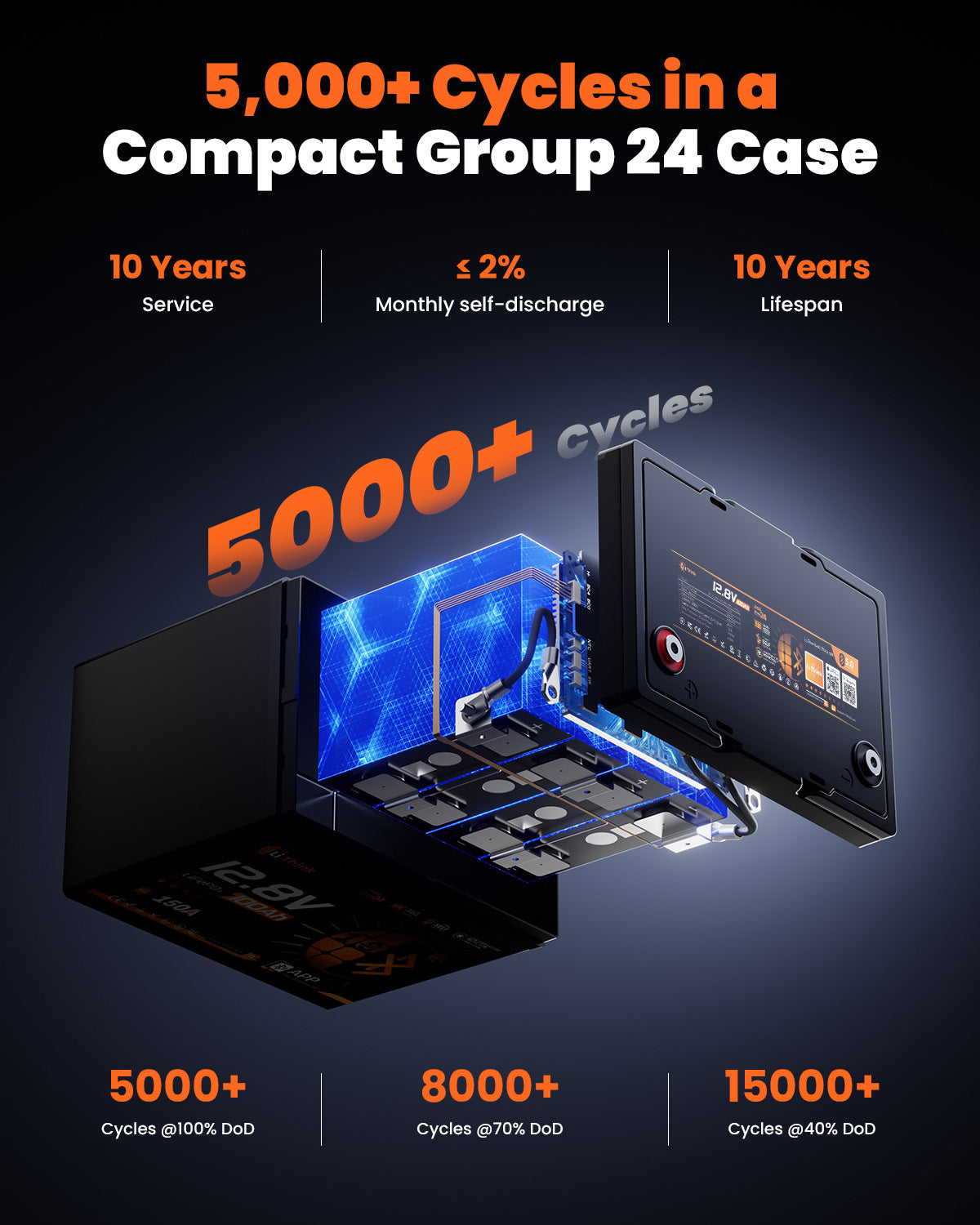

PERFORMANCE & BATTERY LIFE

5,000+ Cycles in a Compact Group 24 Case

5,000 +
Cycles @100% DoD
8,000 +
Cycles @70% DoD
15,000 +
Cycles @40% DoD
≤ 2%
Monthly self-discharge
10 Years
Warranty

Compact 12V 100Ah LiFePO4 power with 5,000+ cycles — a lighter, longer-lasting upgrade from traditional lead-acid batteries.

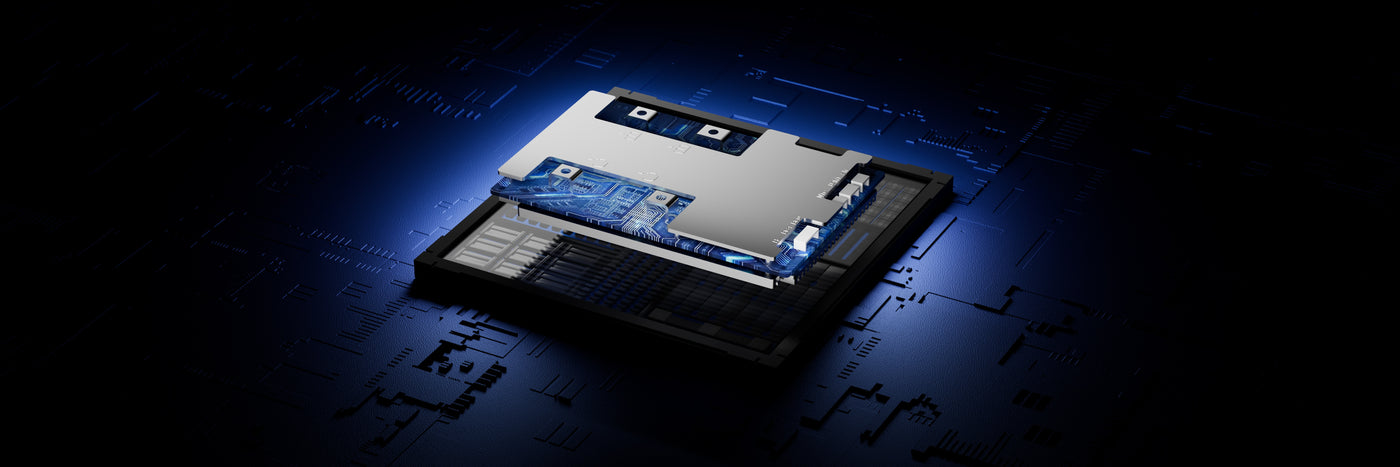

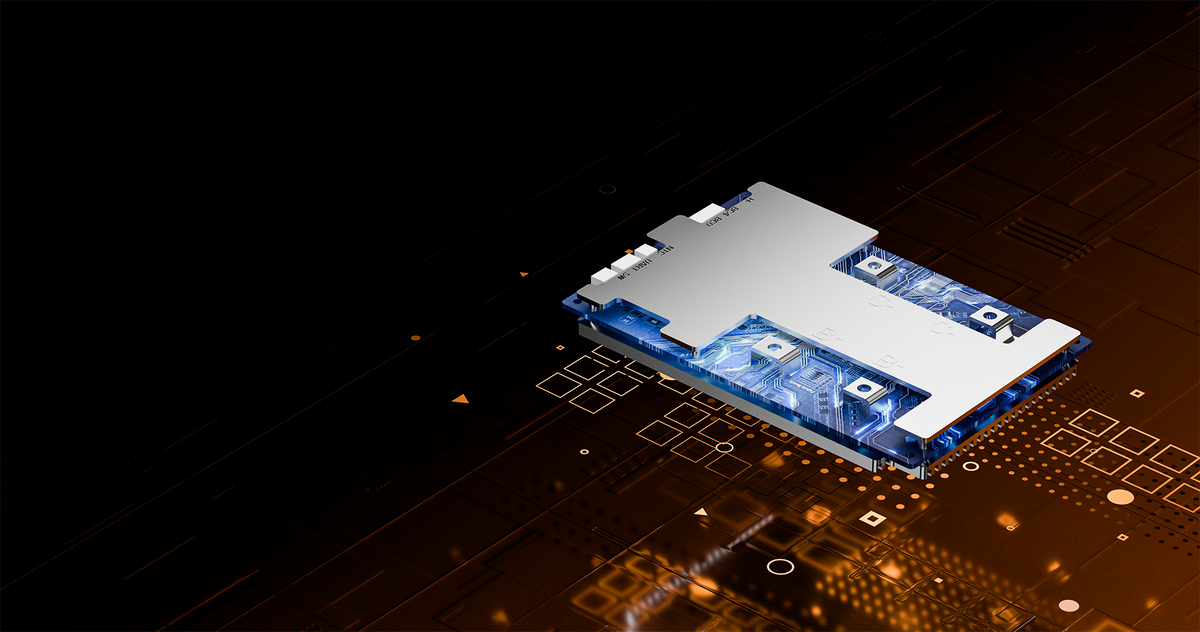

HIGH-OUTPUT PROTECTION

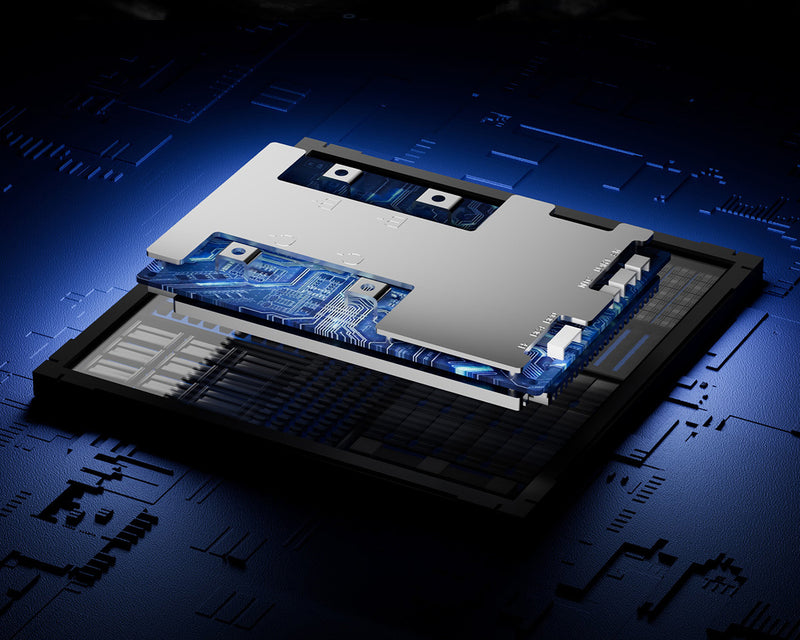

150A Smart BMS.

More Power for 12V Loads.

The 150A smart BMS delivers stronger continuous output while monitoring battery status in real time. It helps protect against overcharge, over-discharge, overcurrent, short circuit, and extreme temperatures — giving your RV, marine, solar, and backup system more usable power with safer control.

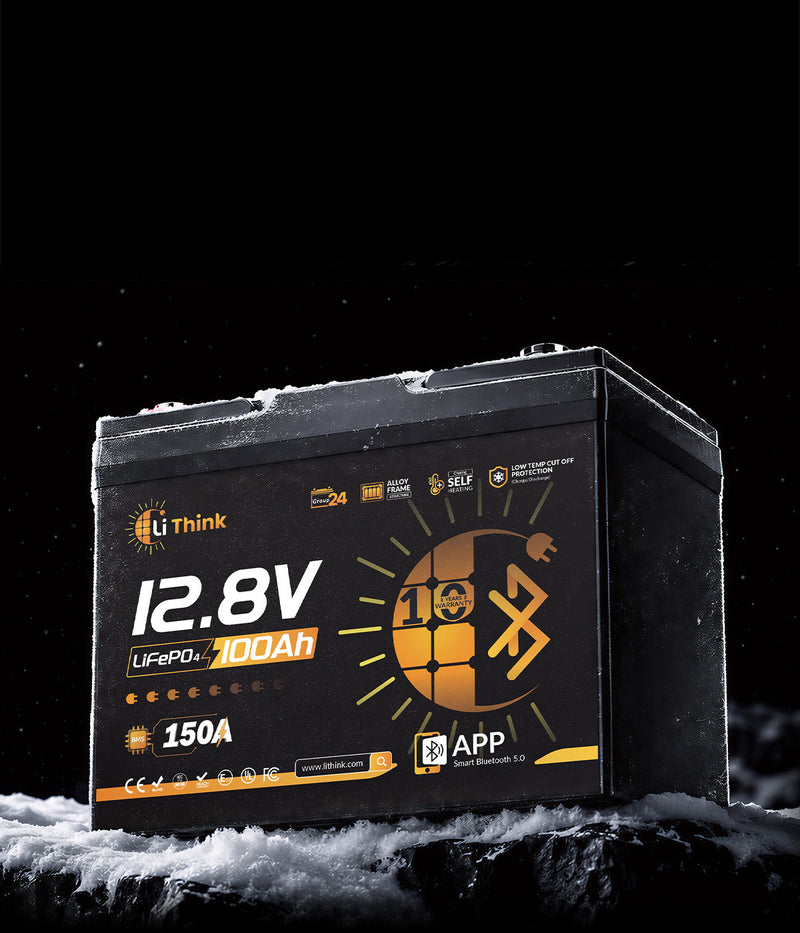

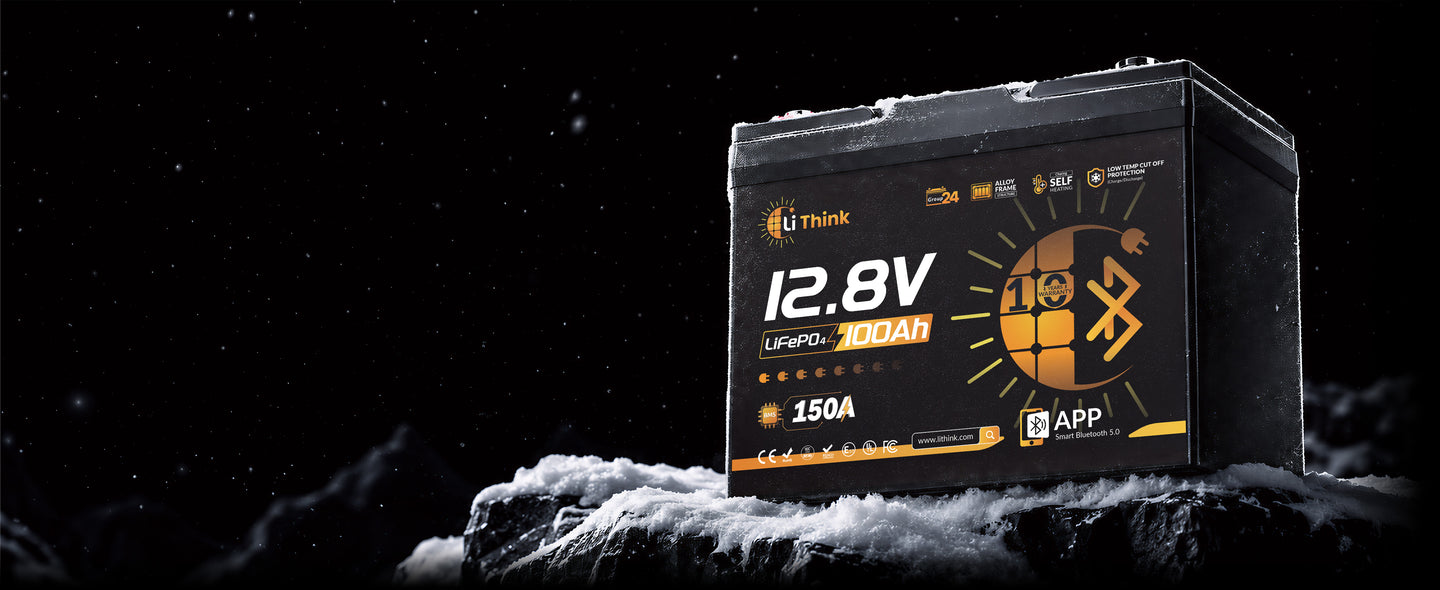

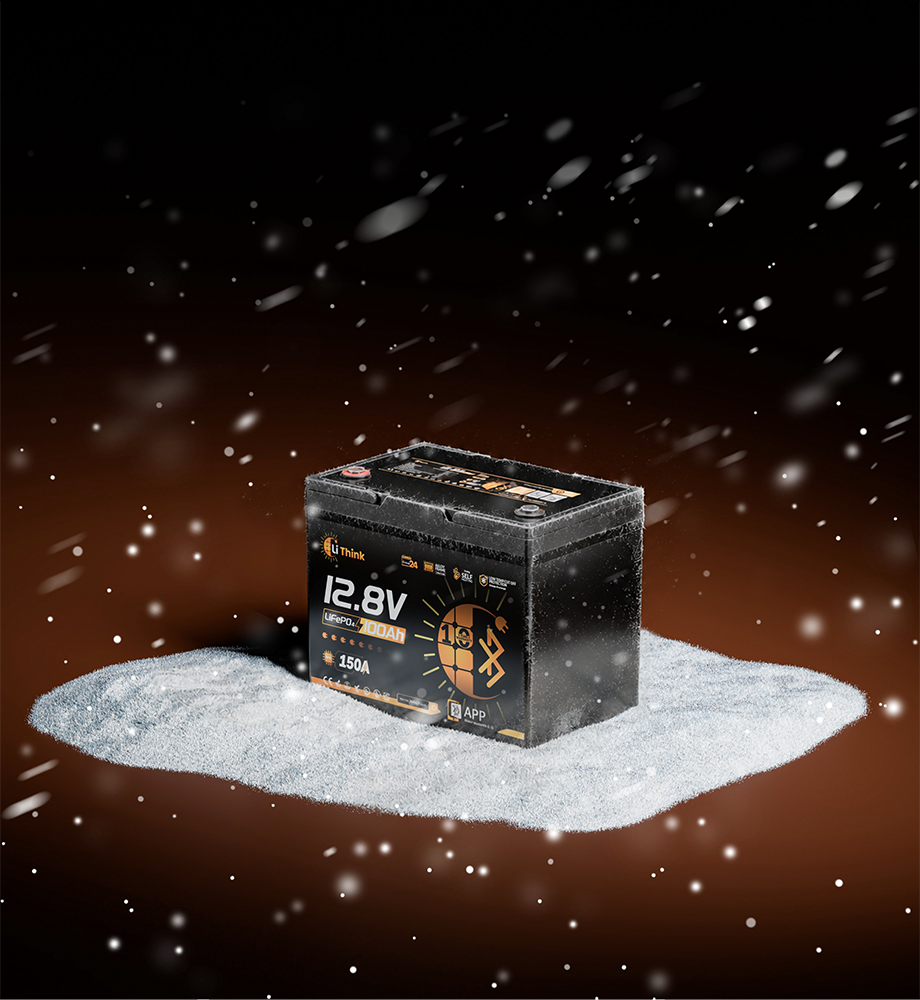

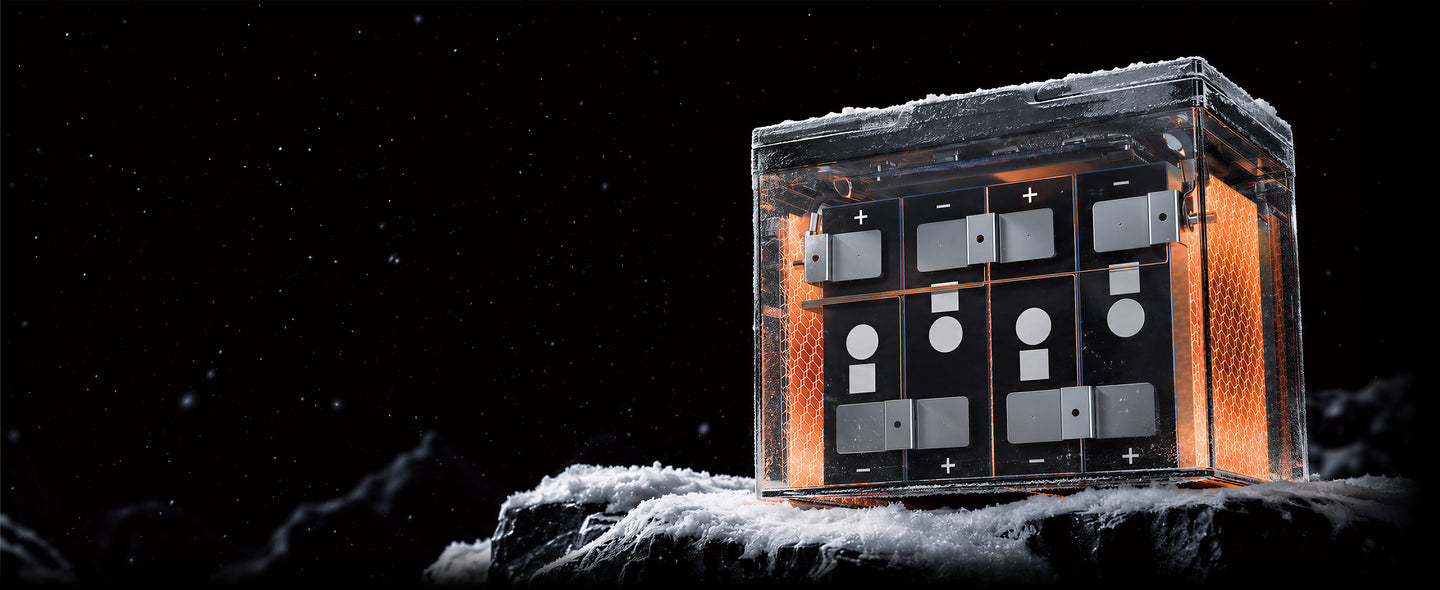

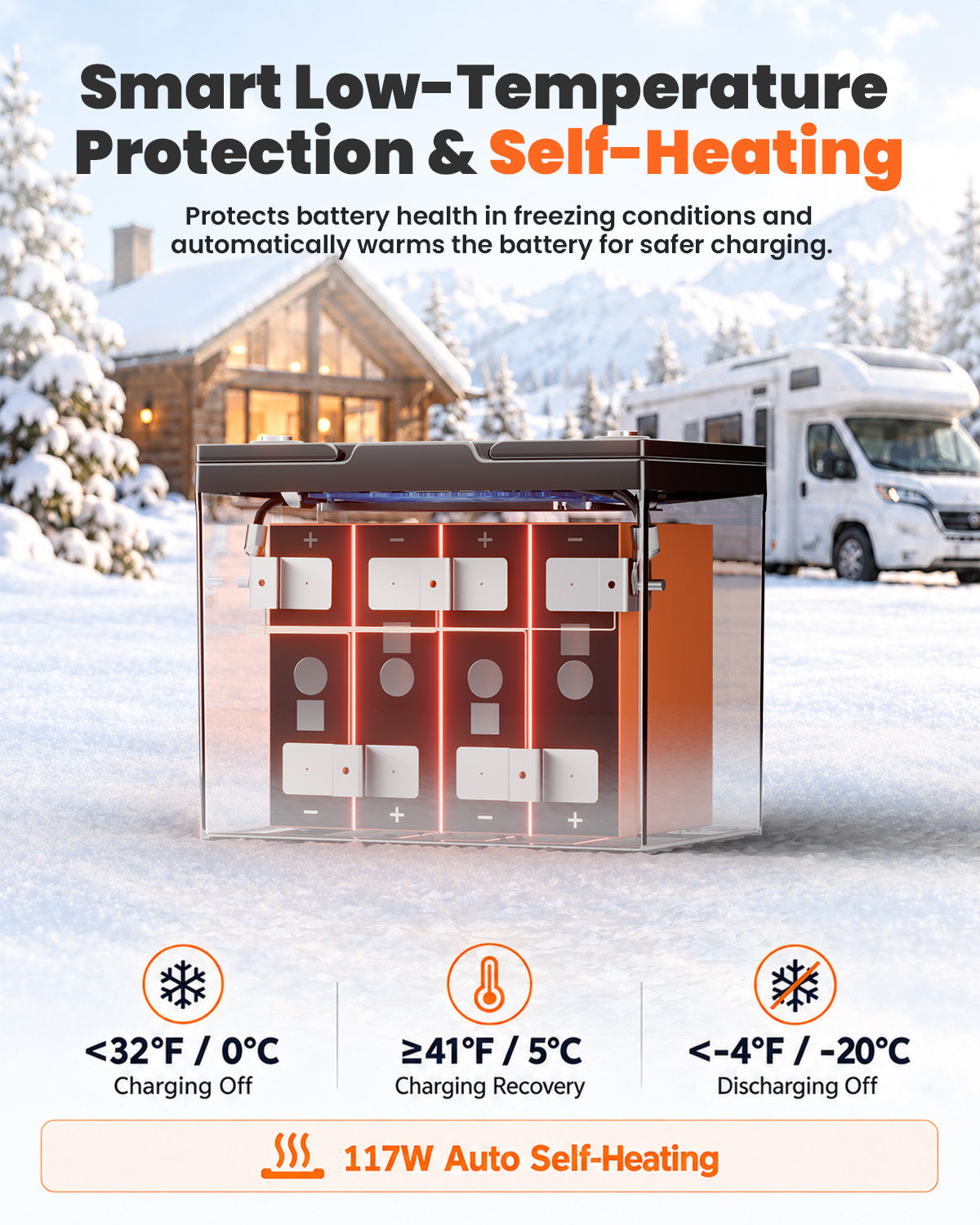

Cold-Weather Ready

The smart BMS pauses charging at 32°F / 0°C and resumes at 41°F / 5°C to help protect the cells. Discharge protection works down to -4°F / -20°C, making it ready for cold RV, marine, solar, and outdoor power use.

32°F
Charge cut-off
41°F
Charge resumes
-4°F
Discharge cut-off
14°F
Discharge resumes

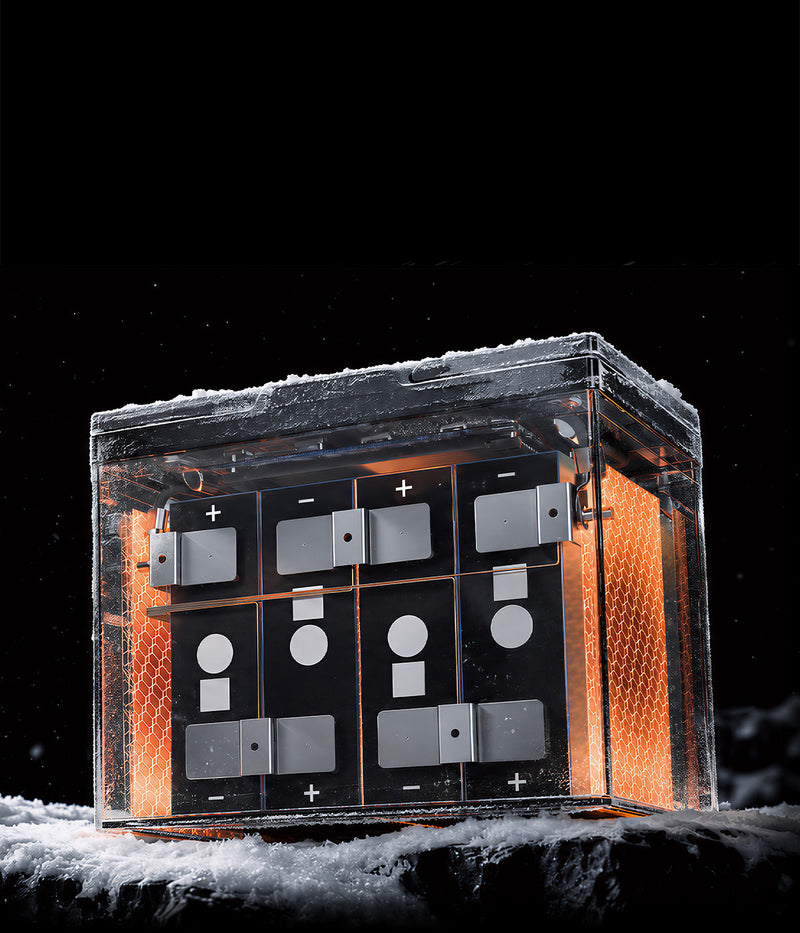

When charging below 41°F / 5°C, the built-in heating system starts automatically and warms the cells to 50°F / 10°C — helping make winter charging safer and more reliable.

≤41°F
Auto-heating starts
50°F
Heating stops

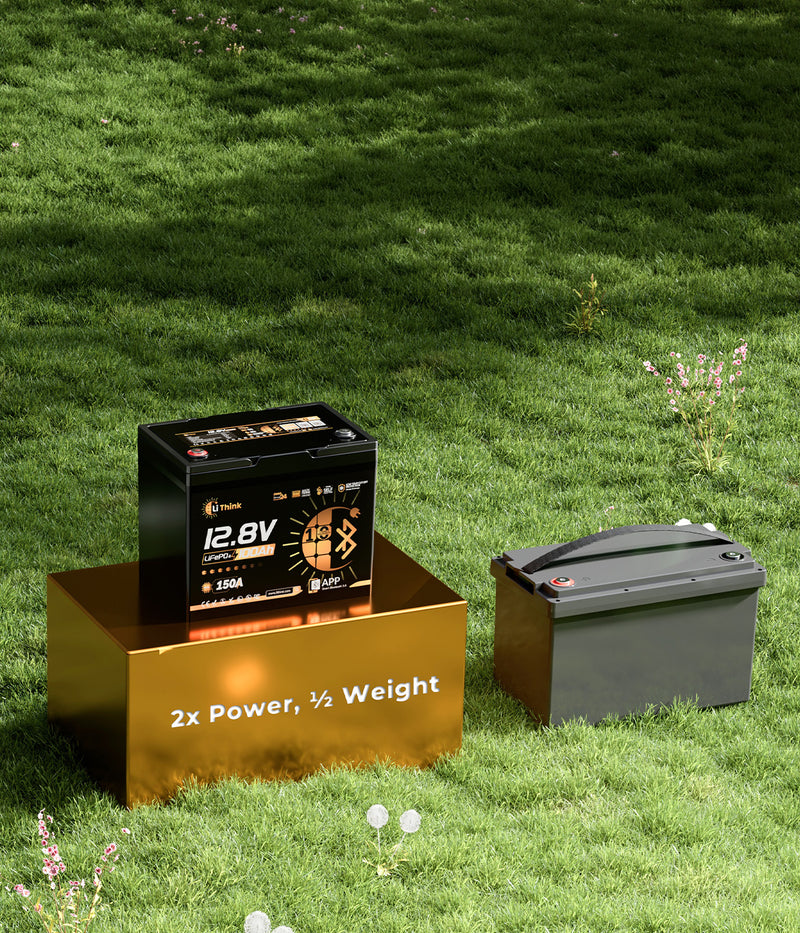

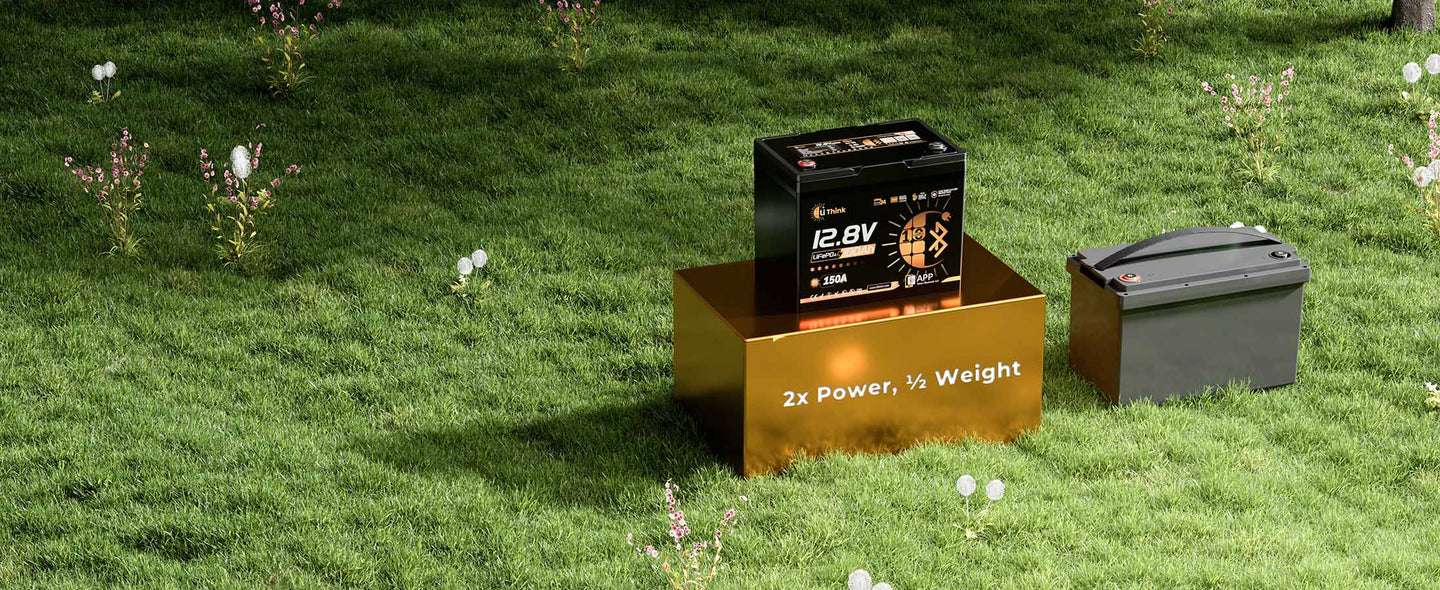

2× the capacity, half the weight

Double the capacity, half the weight, and up to 12× the service life — with lifetime energy cost as low as $0.03/kWh.

2× Capacity
Up to 2× more usable energy
1/2 Weight
Up to 50% lighter
12× Lifetime value
Up to 12× longer service life
$0.03 Energy cost
As low as $0.03/kWh over its lifetime

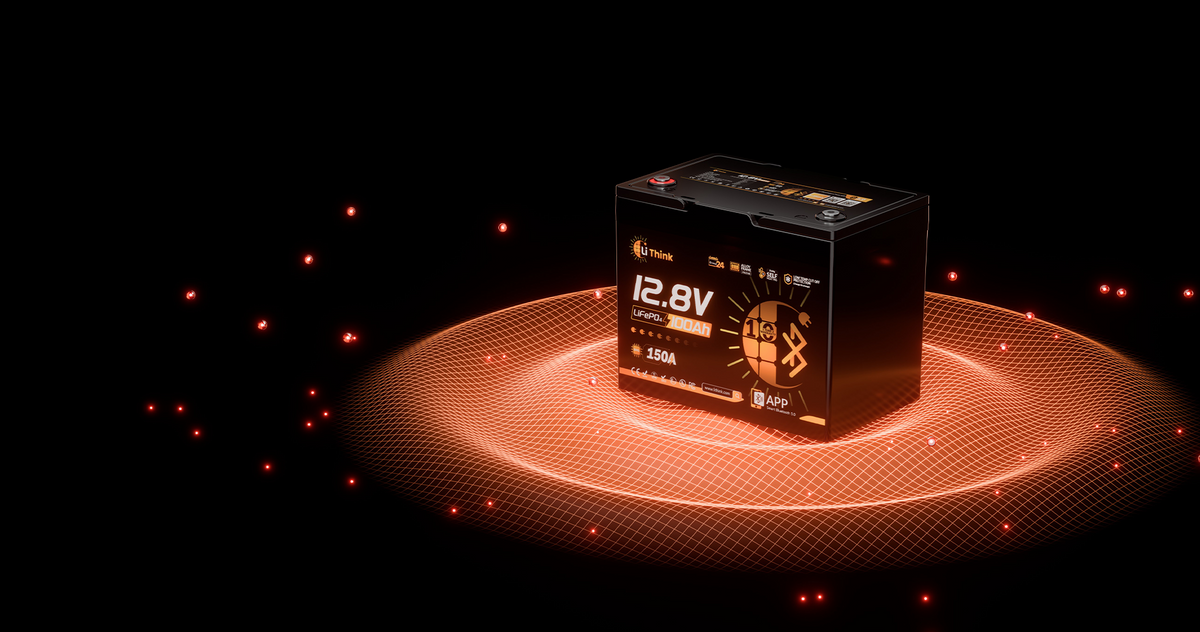

Surge Support for Real 12V Loads

Multi-stage surge output helps your 12V system handle short start-up peaks from inverter-powered appliances, pumps, motors, and onboard equipment.

550A / 1s
Peak surge output
450A / 3s
Start-up boost
350A / 5s
High-draw load support
200A / 10s
Stable short-term output

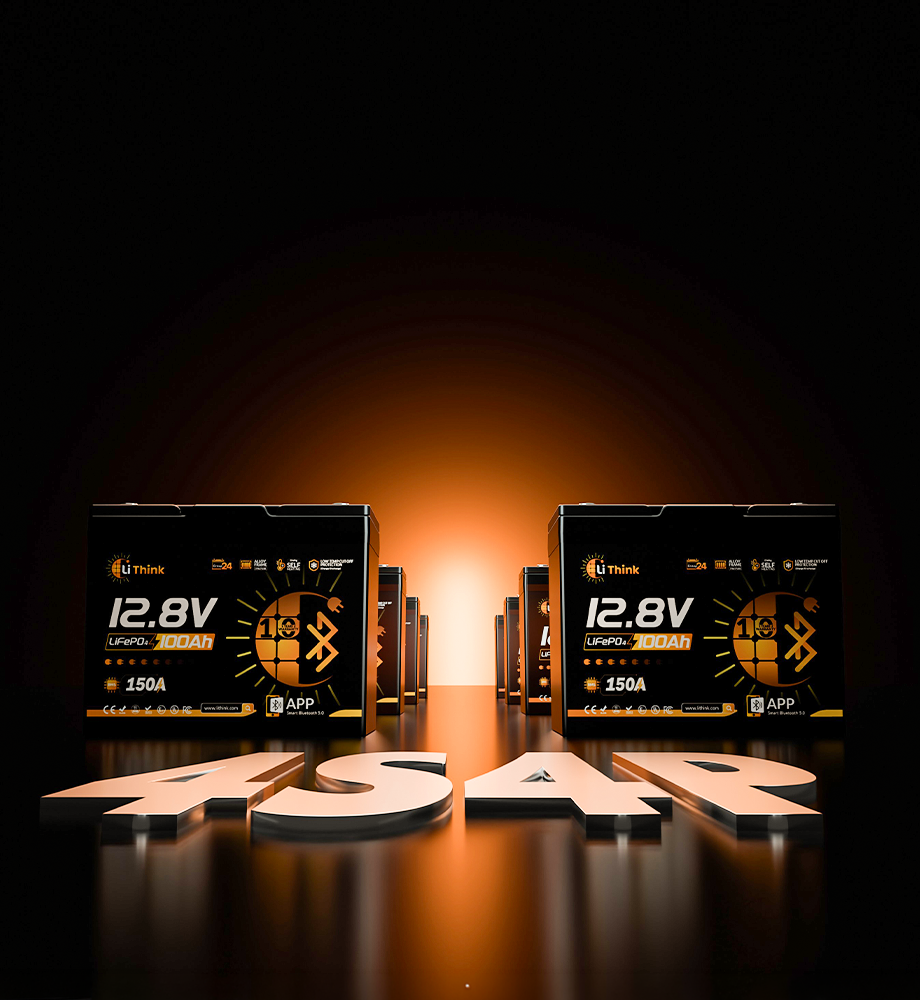

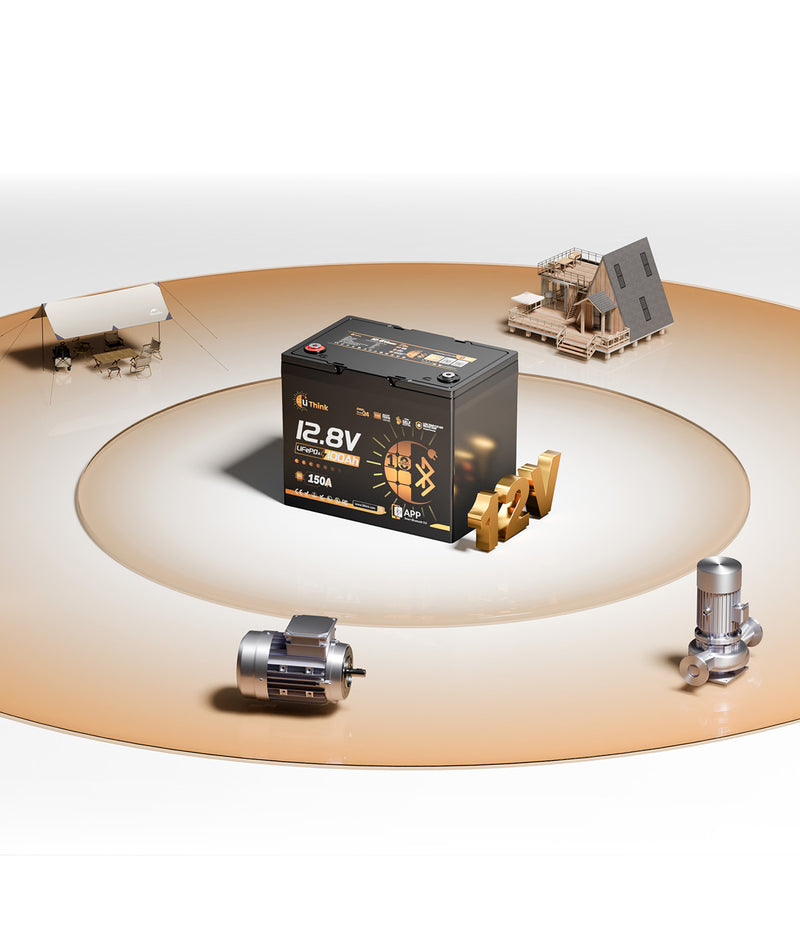

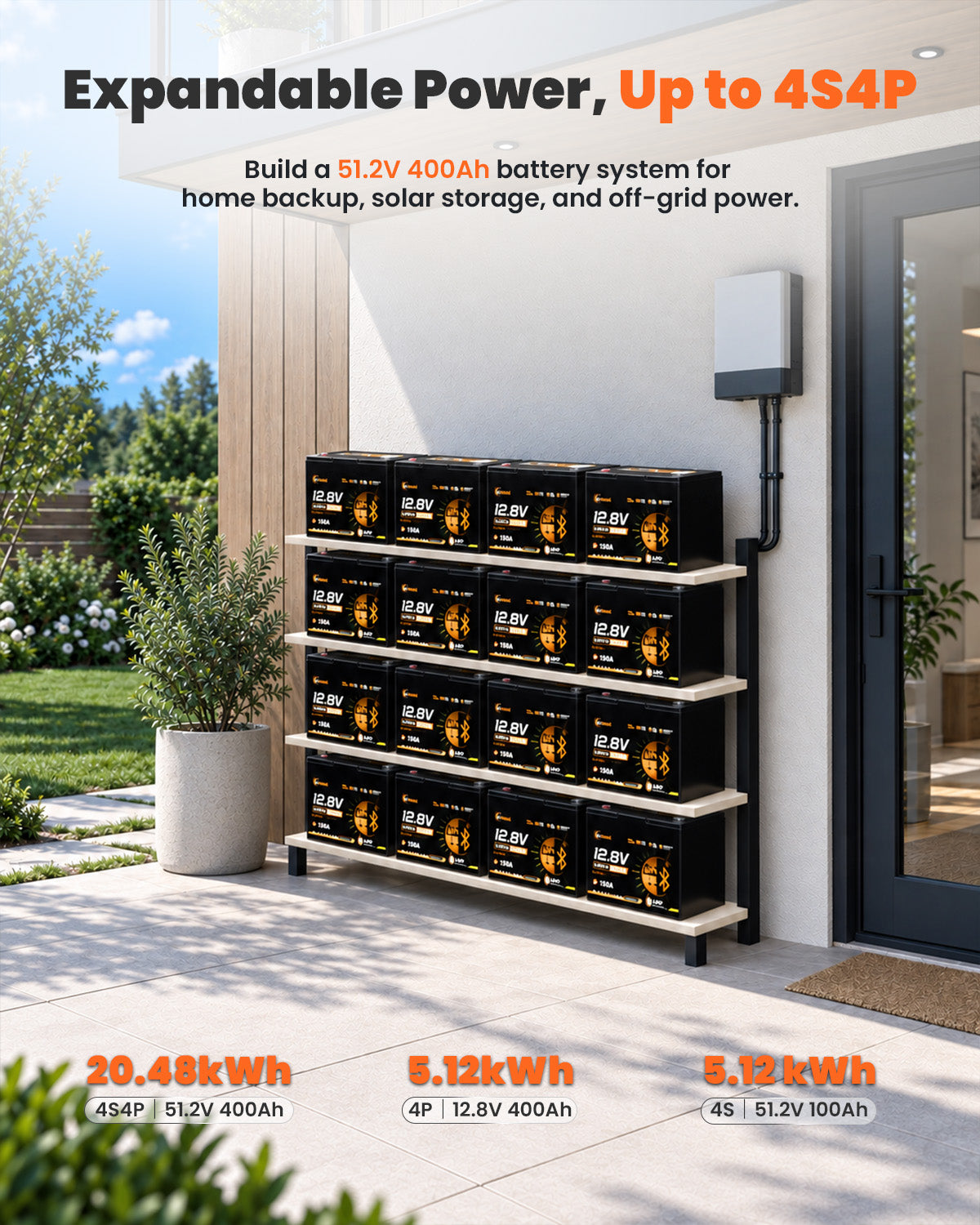

FLEXIBLE POWER EXPANSION

Start Compact. Expand up to 4P4S.

RV & van life
Travel power
Garage/workshop
Tool support
Tent camping
Outdoor energy
Off-grid cabin
Remote power
UPS & backup
Emergency power
Boat / marine
Onboard energy

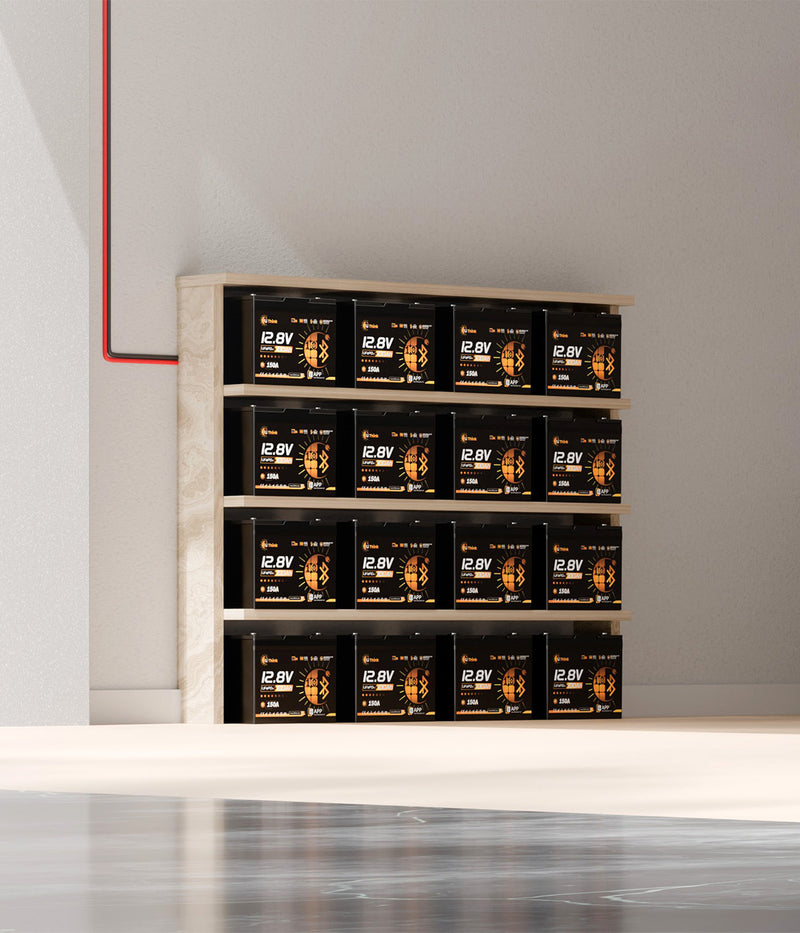

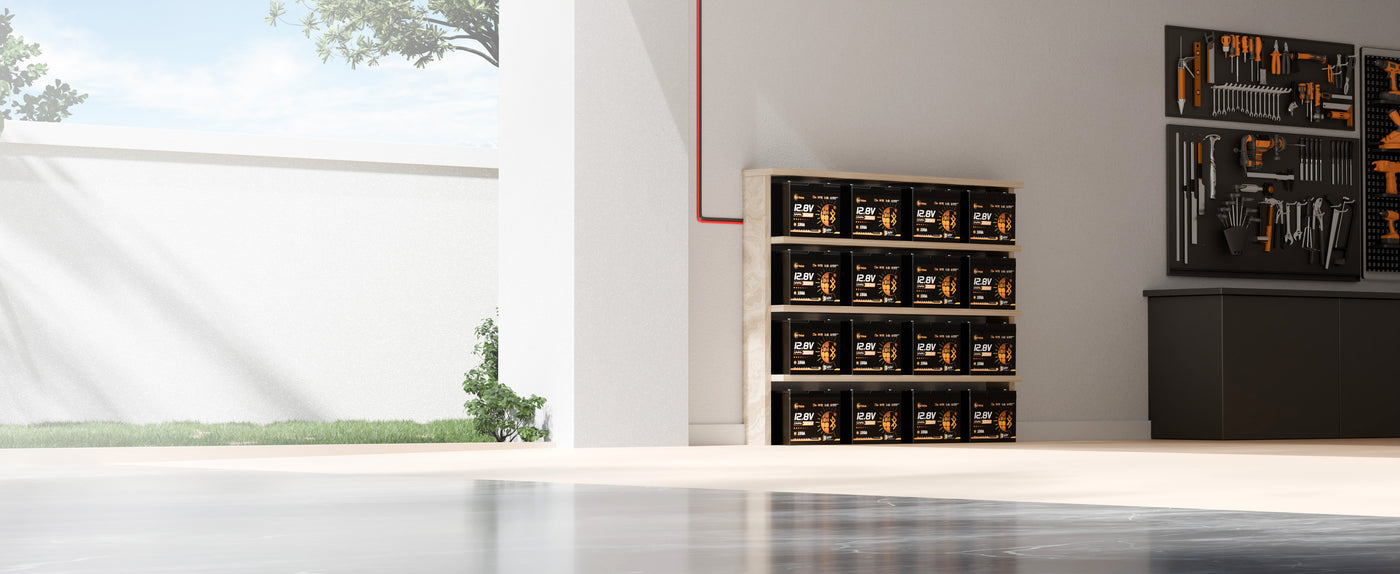

Start with one compact Group 24 battery, then expand up to 4 in series and 4 in parallel for larger RV, marine, solar, and backup power systems.

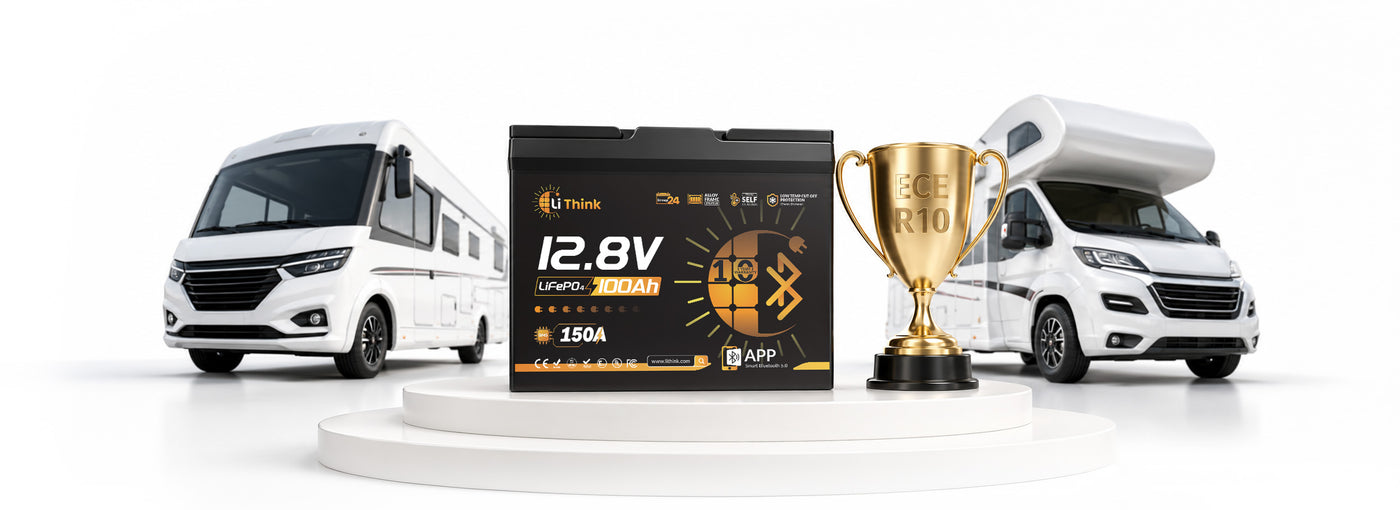

GLOBAL COMPLIANCE

ECE R10 Compliant. Built for Reliable 12V Power.

EMC-tested to ECE R10 for reliable use in RV and mobile electrical systems — with smart BMS protection, reinforced internal structure, and trusted compliance for everyday 12V power.

Specifications & box contents

Basic Battery Specifications
Cell type

LiFePO4

Nominal voltage

12.8V

Rated capacity

100Ah

Energy

1280Wh

Cycle life

≥4000 cycles

Internal resistance

≤40mΩ

Battery management system bms

150A

Number of cells

4

Charging Specifications
Charge method

CC/CV

Charge voltage

14.6V

Recommended charge current

20A

Max continuous charge current

150A

Charging time at recommended current

20A @ 5h

Minimum charge current for heating function

10A

Discharging Specifications
Max continuous discharge current

150A

Max continuous output power

1920W

Discharge cut off voltage

10.8V

Surge discharge current

550A @ 1s

450A @ 3s

350A @ 5s

200A @ 10s

Self discharge rate

≤2%

Temperature Specifications
Charge temperature range

0°C to 50°C / 32°F to 122°F

Discharge temperature range

-20°C to 60°C / -4°F to 140°F

Storage temperature range less than 1 year

-20°C to 25°C / -4°F to 77°F

Storage temperature range less than 3 months

-20°C to 40°C / -4°F to 104°F

Storage temperature range less than 7 days

-20°C to 65°C / -4°F to 149°F

Low Temperature Protection & Heating Function
Low temperature charging protection

Yes

Stop charging temperature

0°C / 32°F

Resume charging temperature

5°C / 41°F

Heating temperature

>10°C / >50°F

Approx heating time 8a from 10 c 14 f

70–90 minutes

Approx heating time 8a from 20 c 4 f

100–150 minutes

Physical Specifications
Dimension

259 × 168 × 209 mm

10.20 × 6.61 × 8.23 inch

Battery weight

10.3 kg / 22.7 lbs

Cell weight

7.7 kg / 17 lbs

Housing material

ABS

Color

Black

Protection class

IP65

Connection & Installation
Terminals

M8 × 14mm

Recommended terminal torque

12N·m

Expansion Capability
Series and parallel connection

Up to 4P4S

What’s in the box

  • LiThink 12V 334Ah battery

  • User manual (DE/EN)

  • Bluetooth app card / warranty card (DE/EN)

  • Quick start guide (DE/EN)

  • 2× LiThink stickers

  • 2× M8 screws & 2× positive/negative terminal caps

Four ways to charge, one versatile battery

Whether you charge with a wall charger, on the road, through solar, or from a generator, your LiThink LiFePO₄ battery stays ready wherever you are.

Charger

Driving

Solar

Generator

FAQs

Still have questions?
Find more information in our FAQ.

1. What is the LiThink 12V 100Ah Group 24 battery best used for?

The LiThink 12V 100Ah Group 24 LiFePO4 battery is a compact lithium upgrade for RVs, camper vans, boats, trolling motors, solar storage, garage power, and backup systems. Its smaller Group 24 case makes it easier to install in space-limited 12V setups.

2. What makes this Group 24 battery different from a standard 100Ah battery?

This battery combines a compact Group 24 size with a 150A smart BMS, 550A surge support, Bluetooth monitoring, self-heating, IP65 protection, and reinforced internal structure. It is built to deliver stronger, smarter 12V power than many basic 100Ah batteries.

3. What does ECE R10 compliance mean for real-world use?

ECE R10 means the battery has been tested for electromagnetic compatibility in vehicle electrical environments. For RVs, vans, and mobile power systems, this helps reduce interference concerns and supports more reliable operation around other onboard electronics.

4. How does the self-heating function work?

When charging below 41°F / 5°C, the built-in heating system starts automatically and warms the cells to 50°F / 10°C. This helps make cold-weather charging safer and more reliable. The BMS also pauses charging at 32°F / 0°C and resumes at 41°F / 5°C to help protect the cells.

5. How capable is the 150A BMS for high-load use?

The 150A smart BMS supports up to 150A continuous discharge and multi-stage surge output up to 550A for short start-up peaks. It is suitable for many demanding 12V loads, including RV appliances through an inverter, marine equipment, pumps, and backup power systems.
