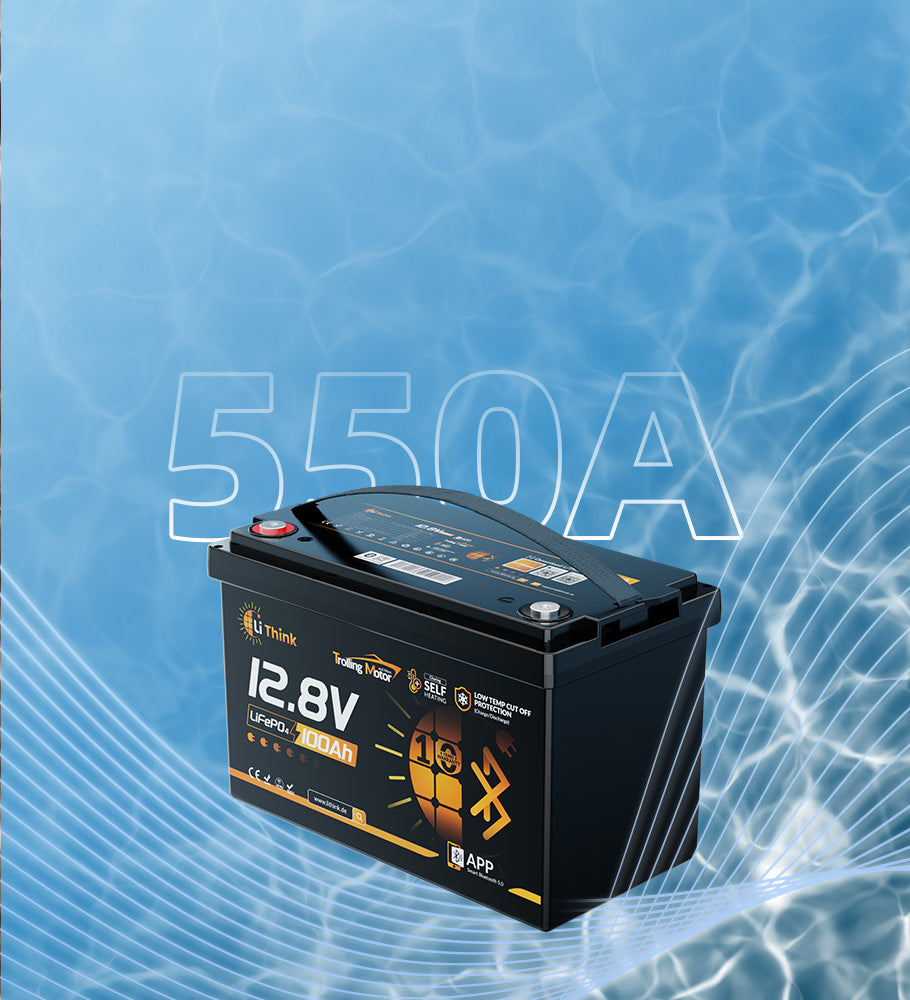

550A Surge Support
Built to handle short motor start-up peaks and pulsed trolling loads.

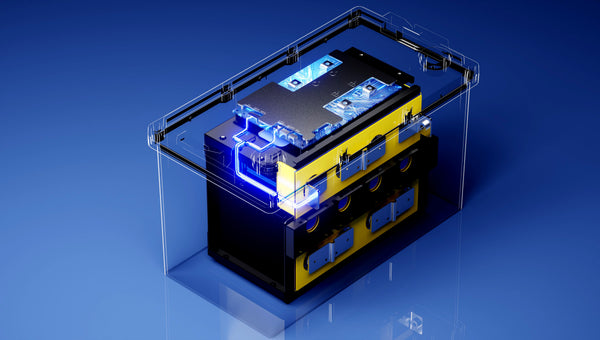

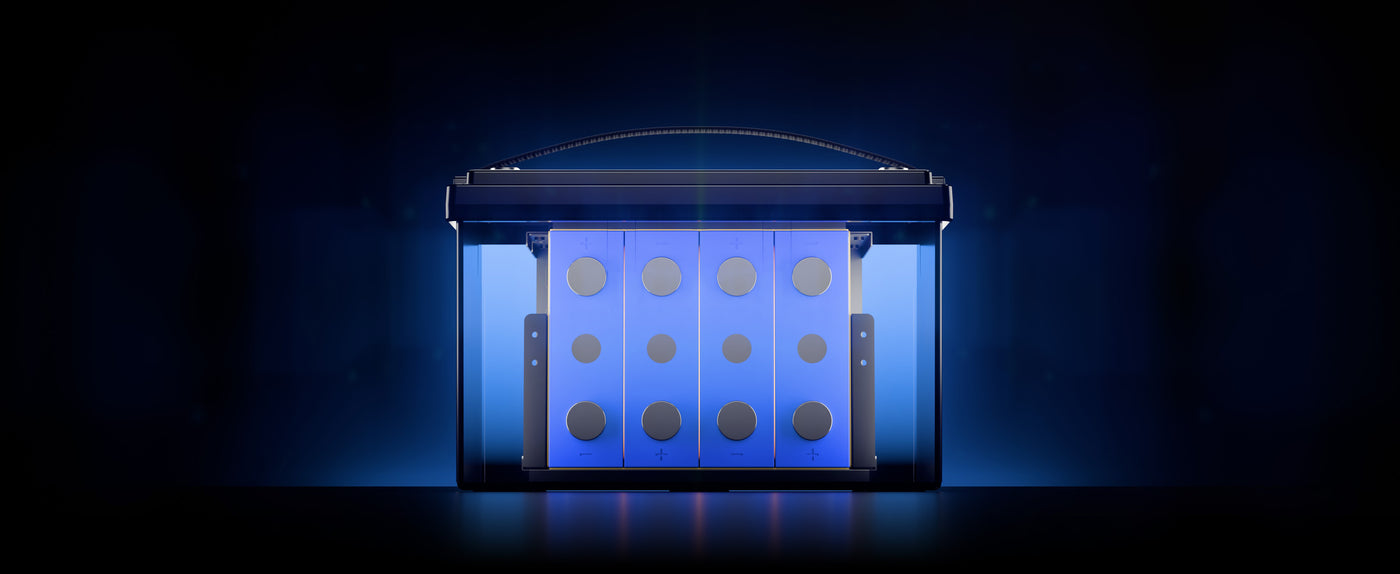

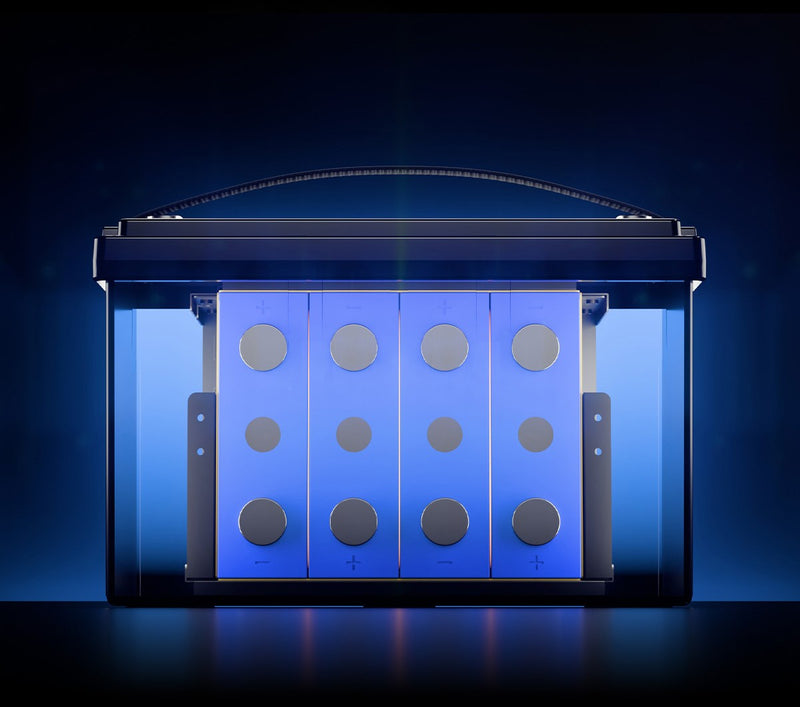

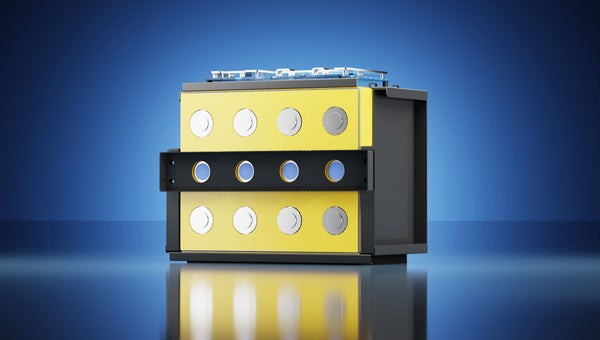

Reinforced Inside
Alloy-frame internal structure for vibration and marine movement.

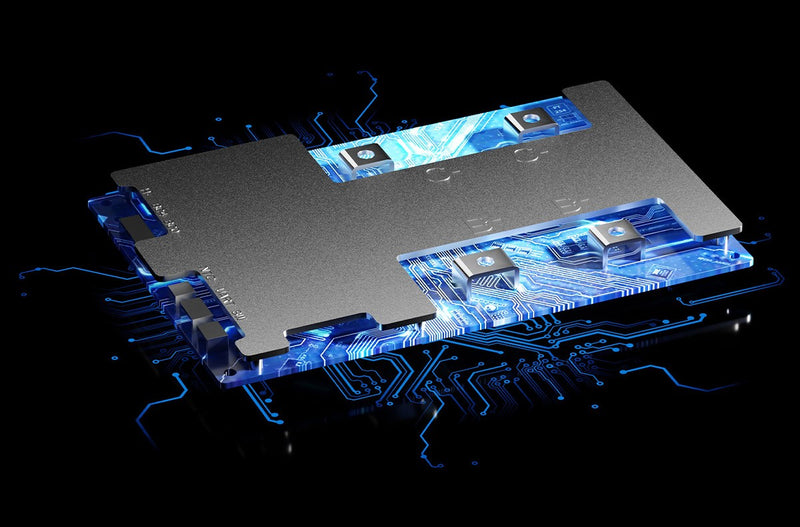

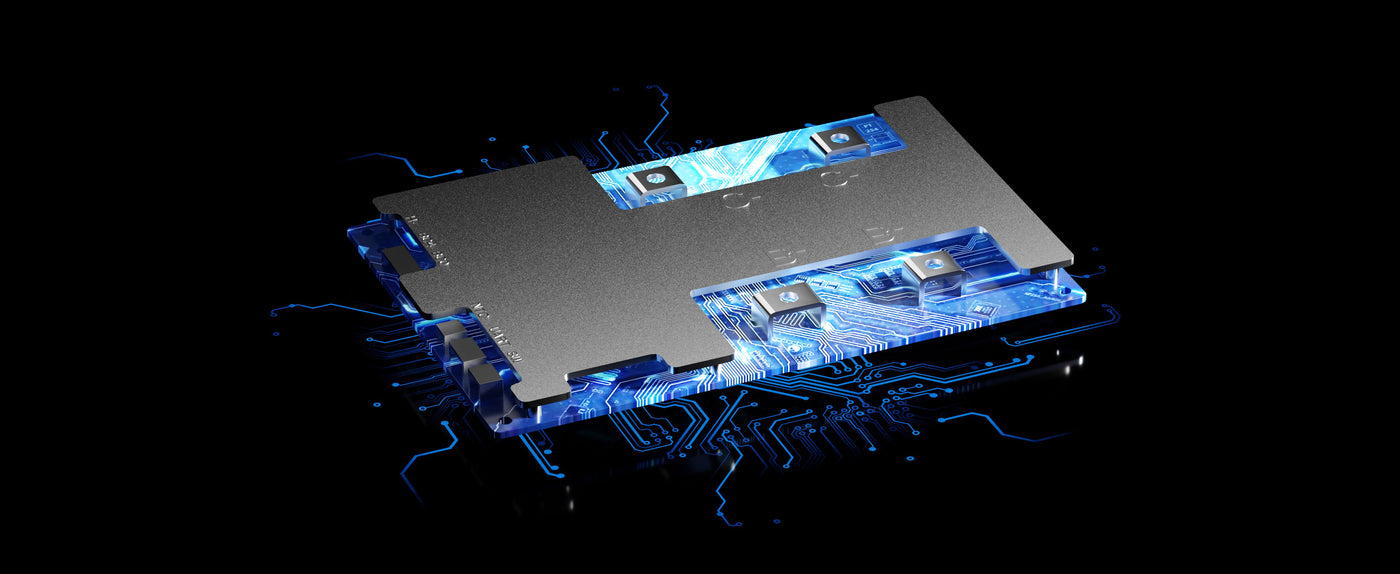

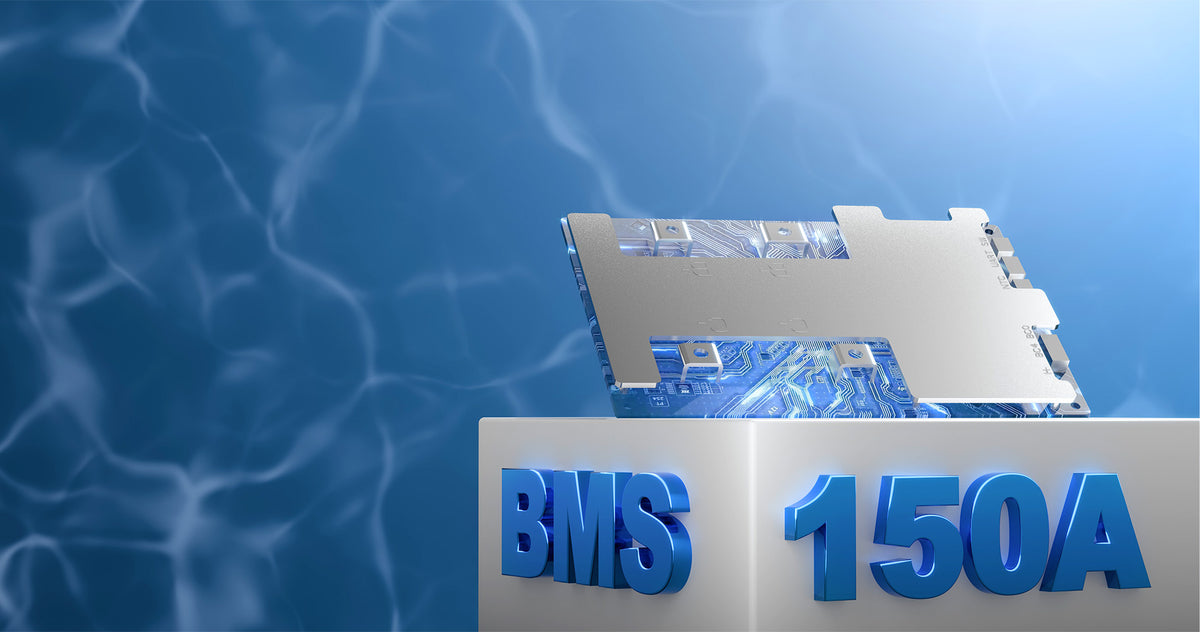

150A Smart BMS
More current headroom for demanding 12V trolling motor loads.

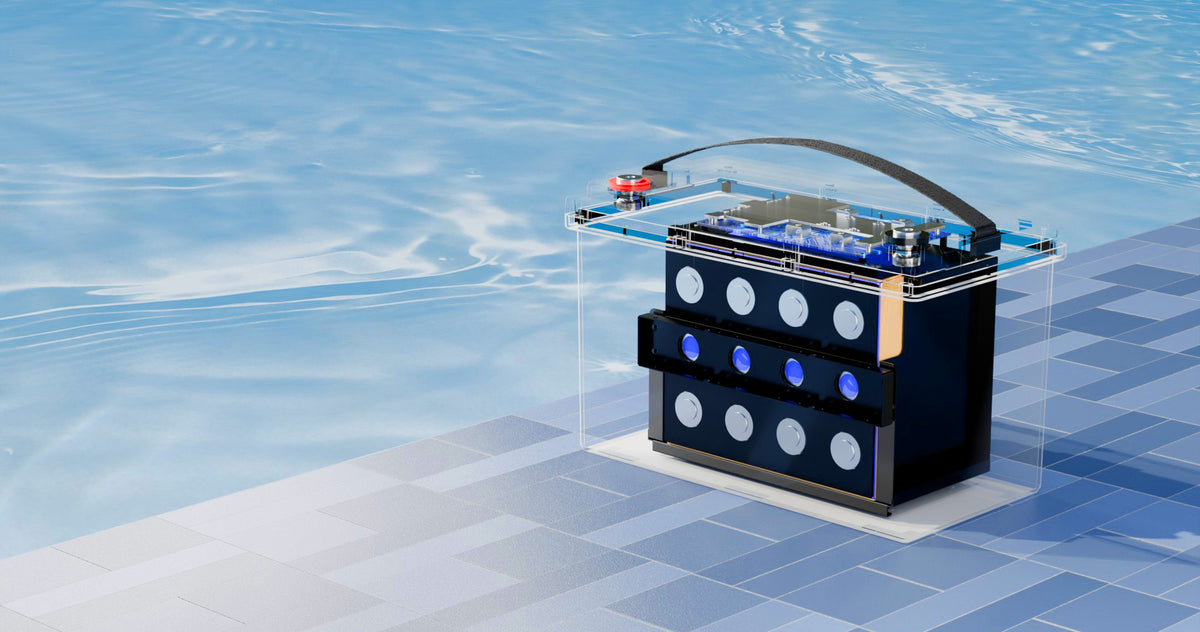

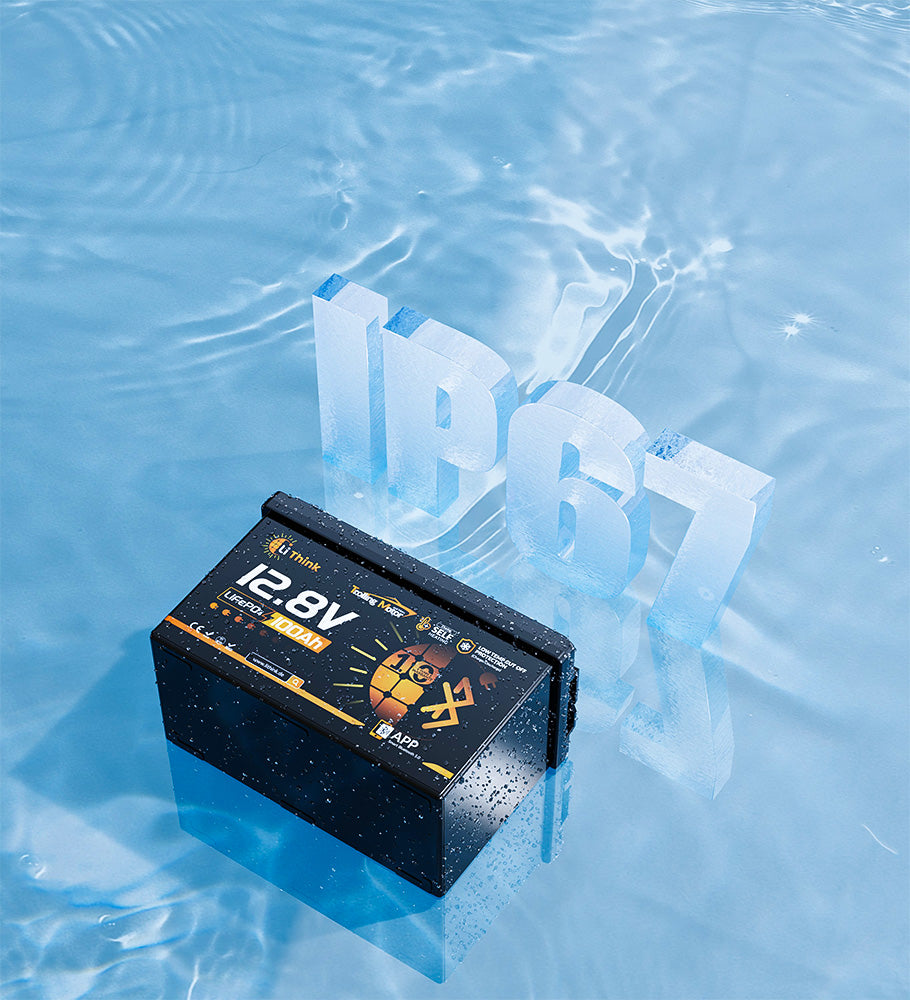

IP67 Protection
Sealed for wet marine compartments and outdoor boat environments.

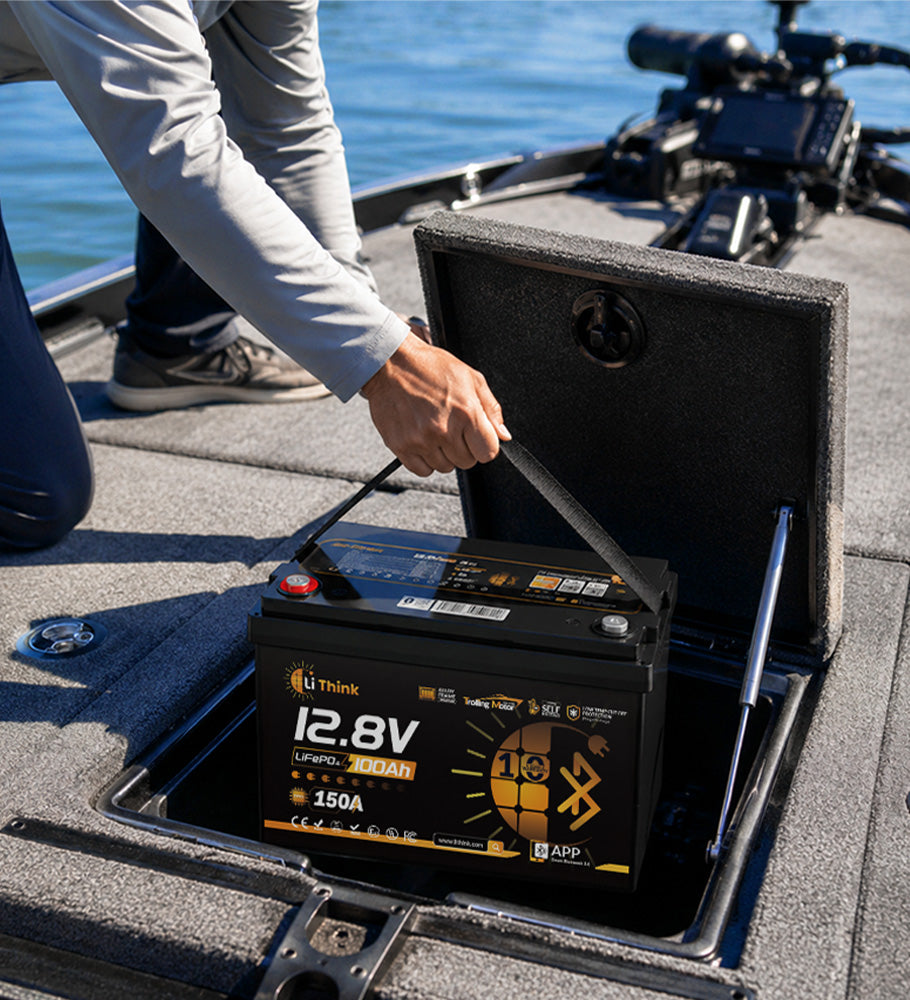

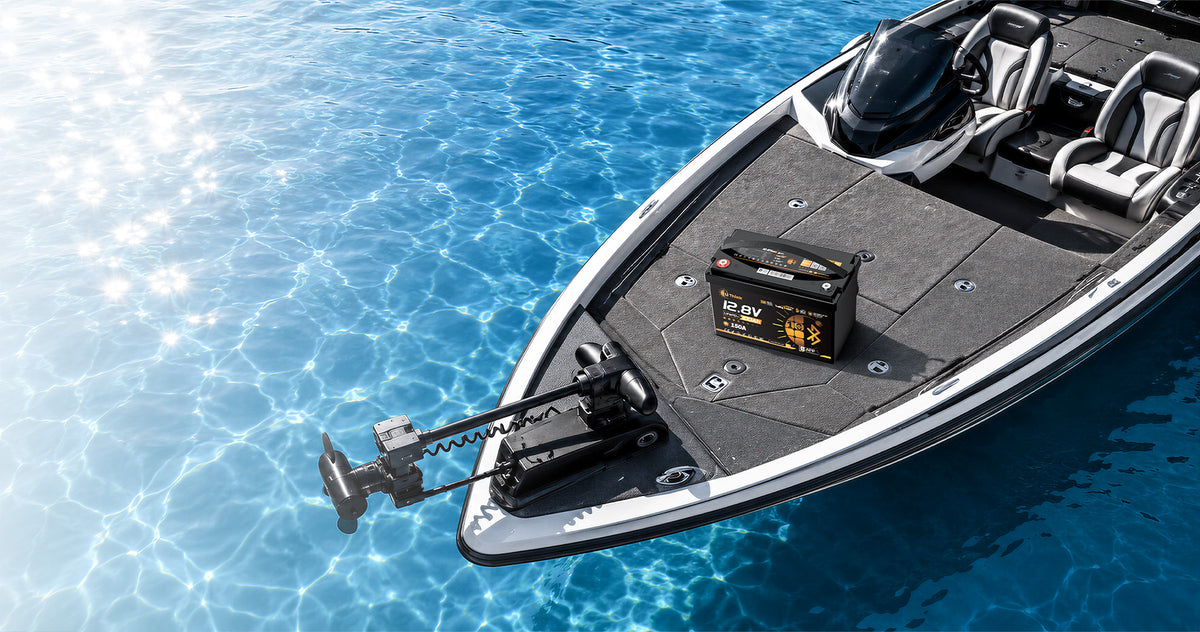

Trolling Motor Ready
Designed for fishing boats, bass boats, and small electric boats.

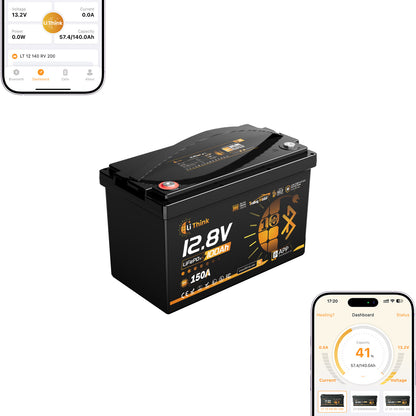

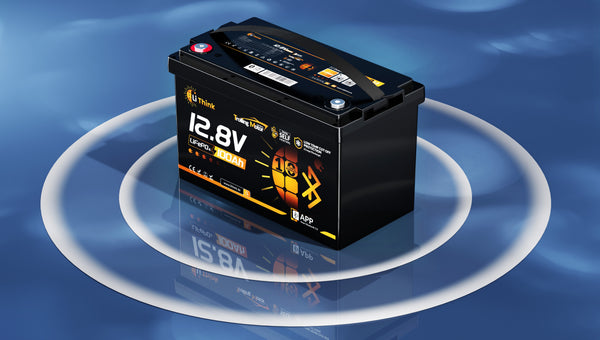

Bluetooth App
Monitor SOC, voltage, current, temperature, and alerts.

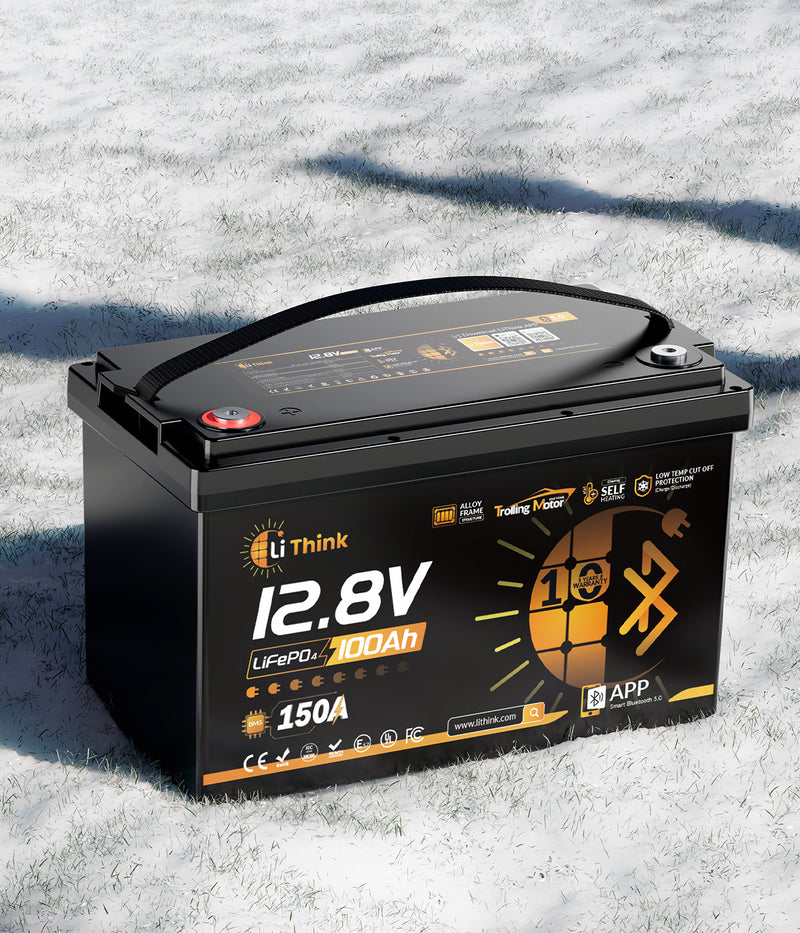

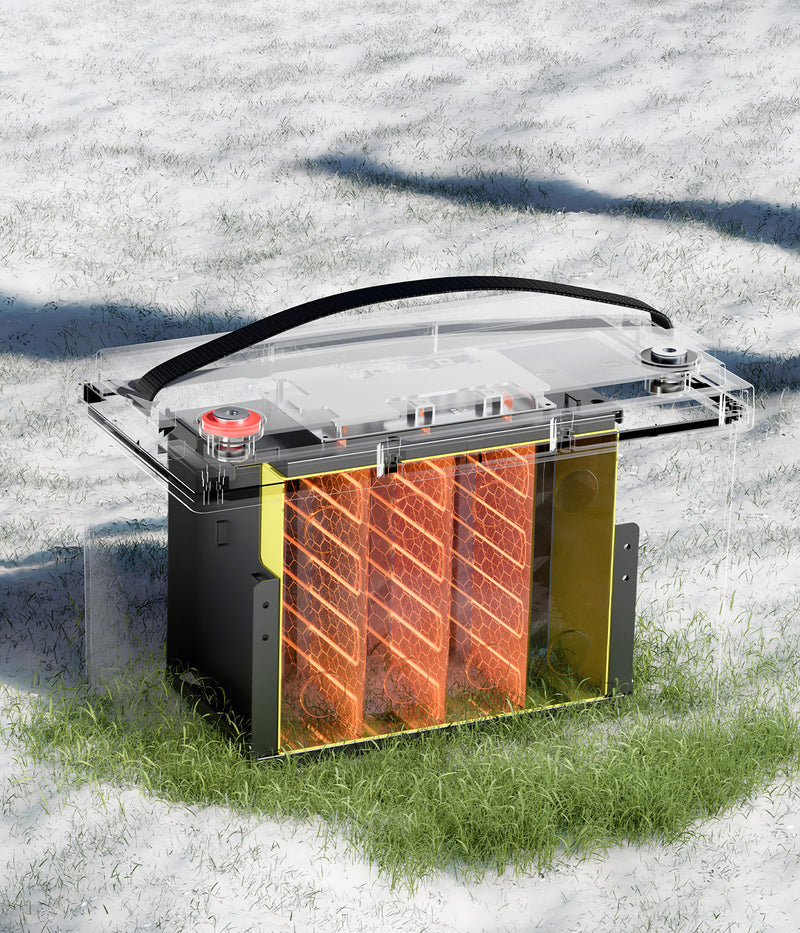

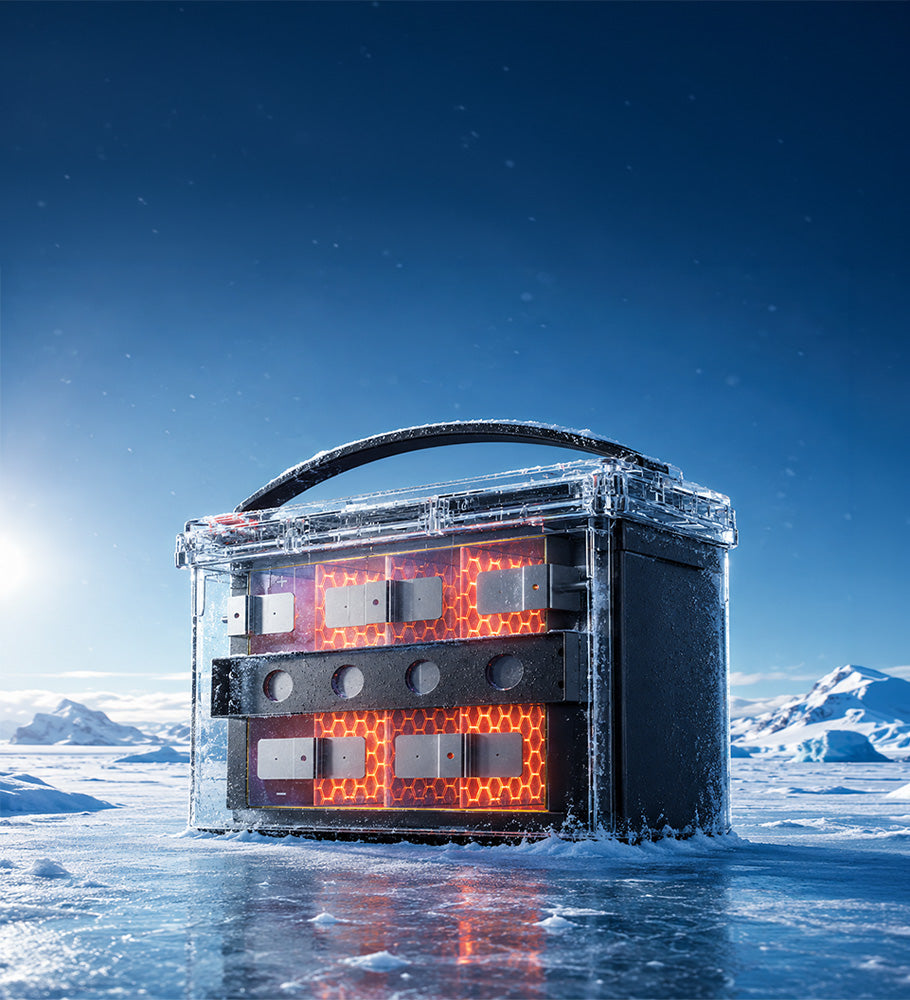

Self-Heating
Supports safer charging in cold-weather conditions.

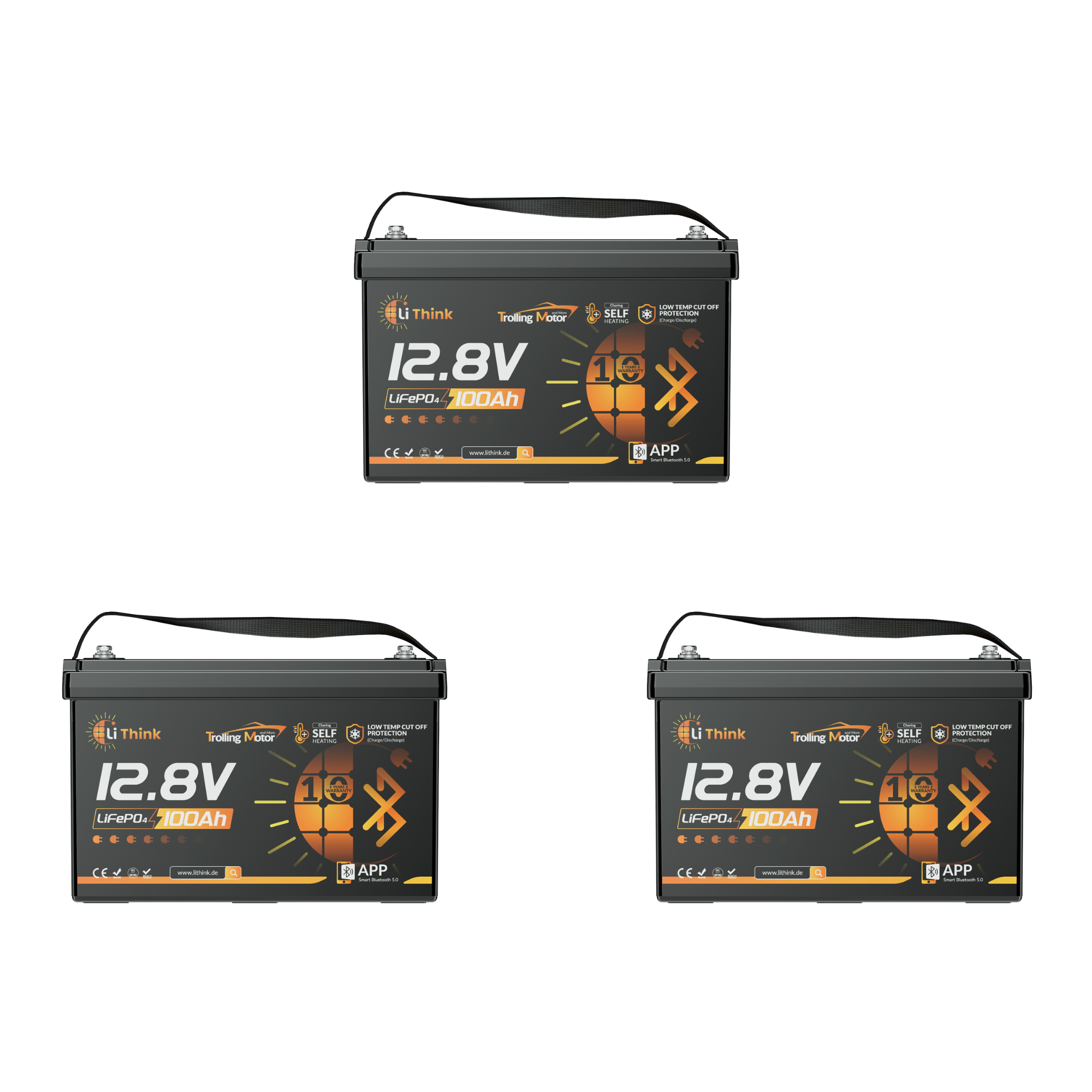

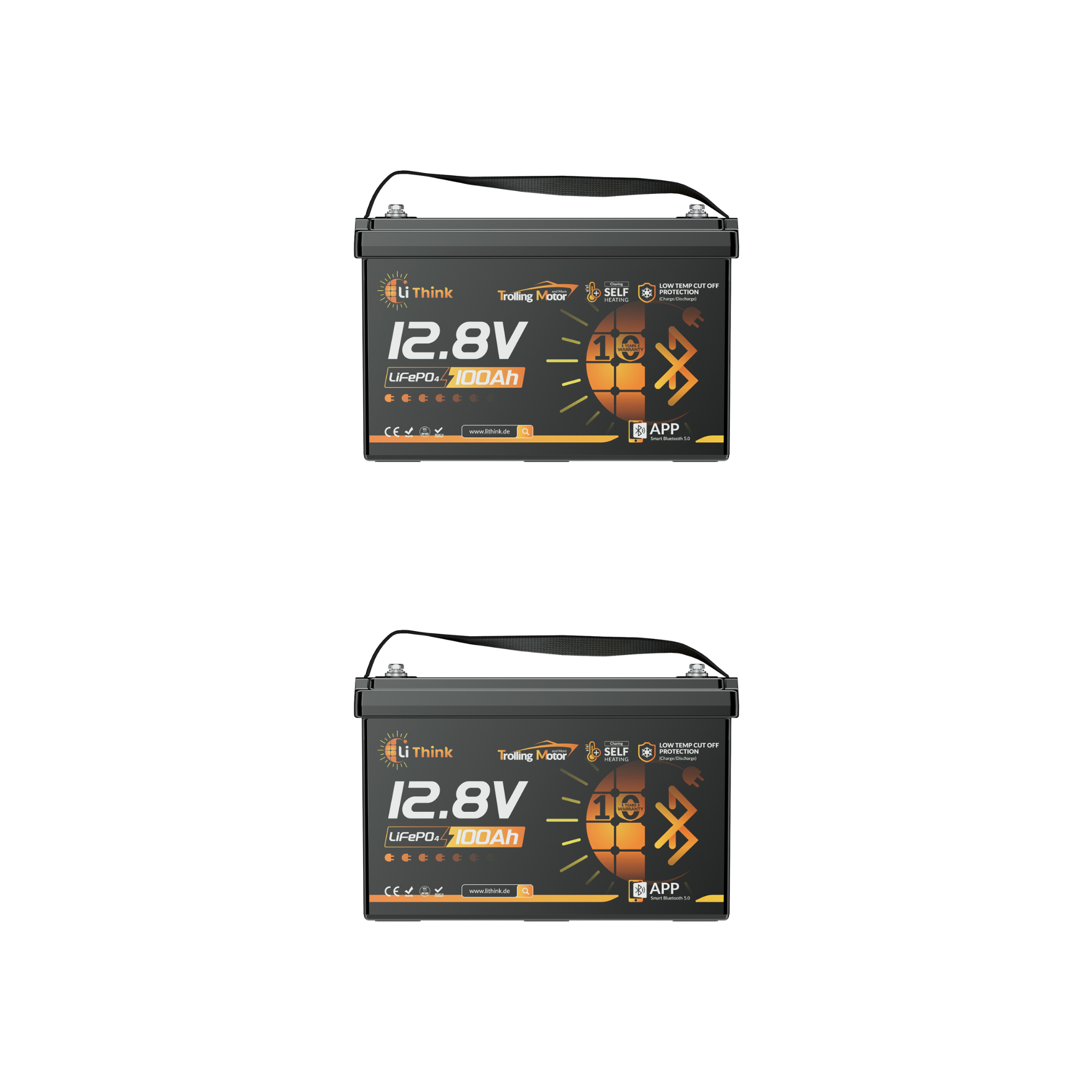

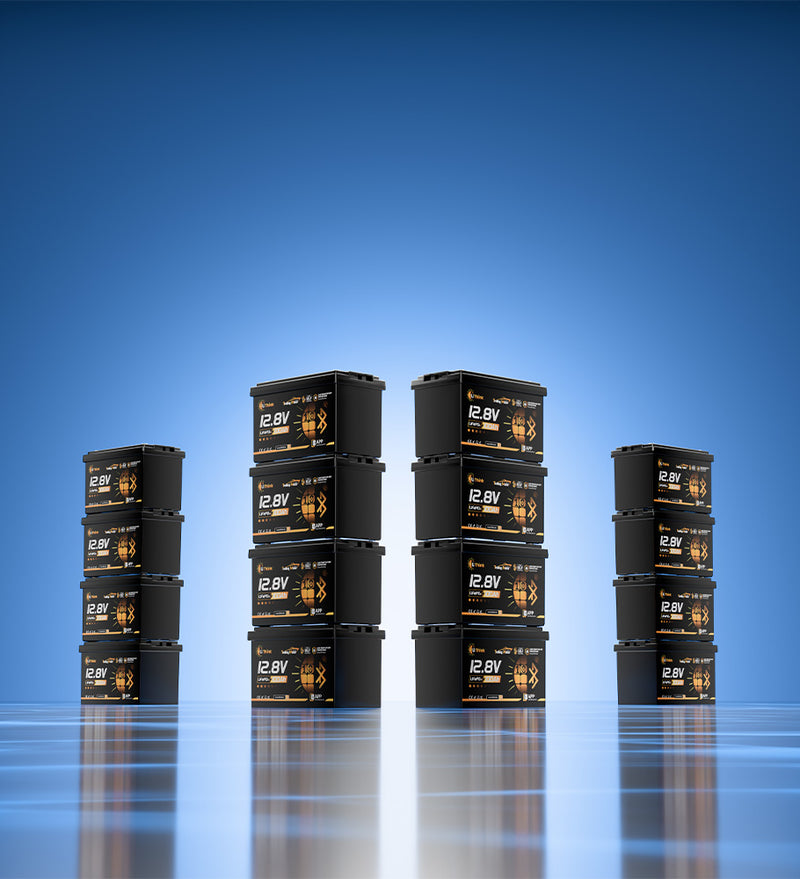

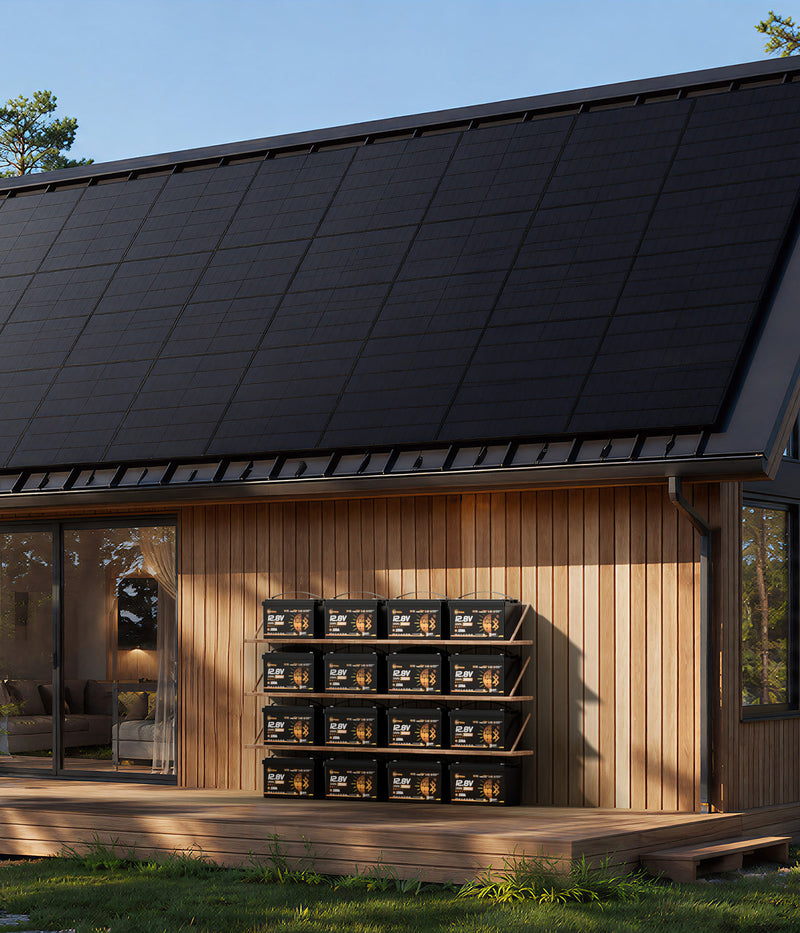

4P4S Expansion
Flexible setup for marine, RV, solar, and backup systems.
Core Battery Advantages
- Made for trolling motors: Designed for 12V trolling motors, fishing boats, bass boats, kayaks, small electric boats, and marine accessory power.

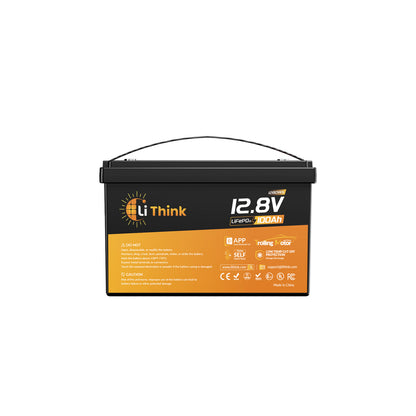

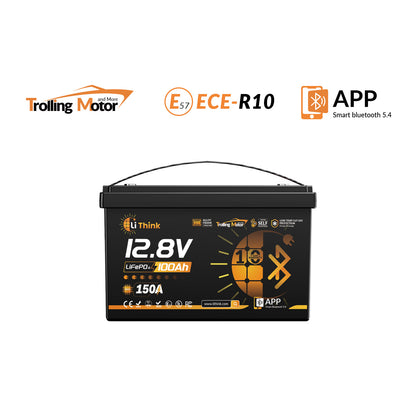

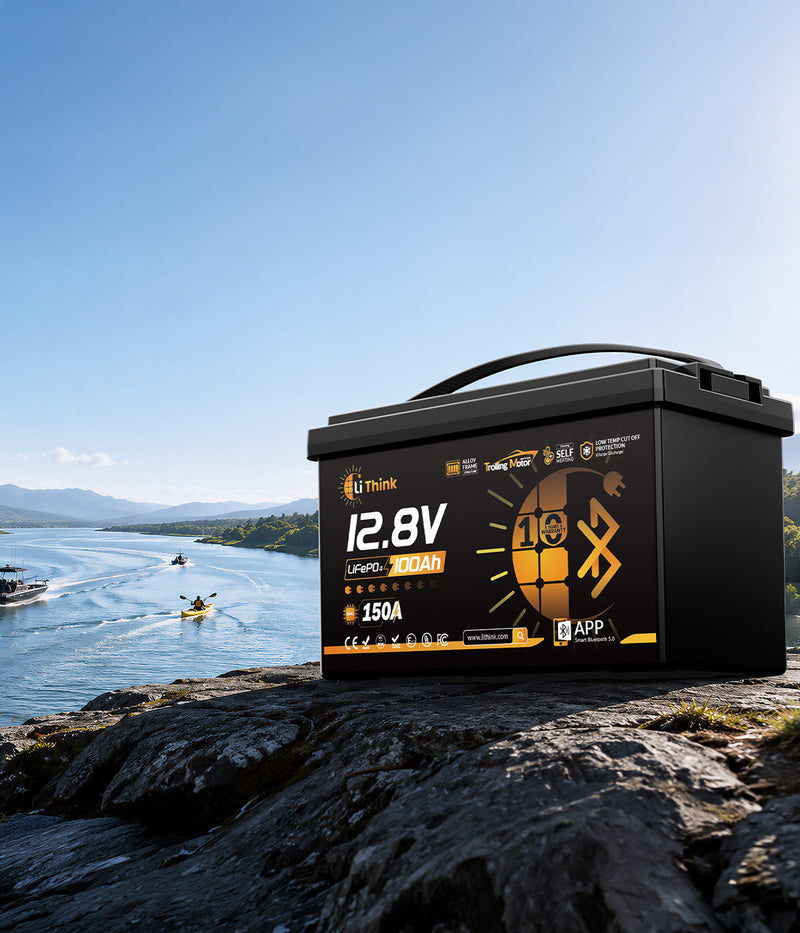

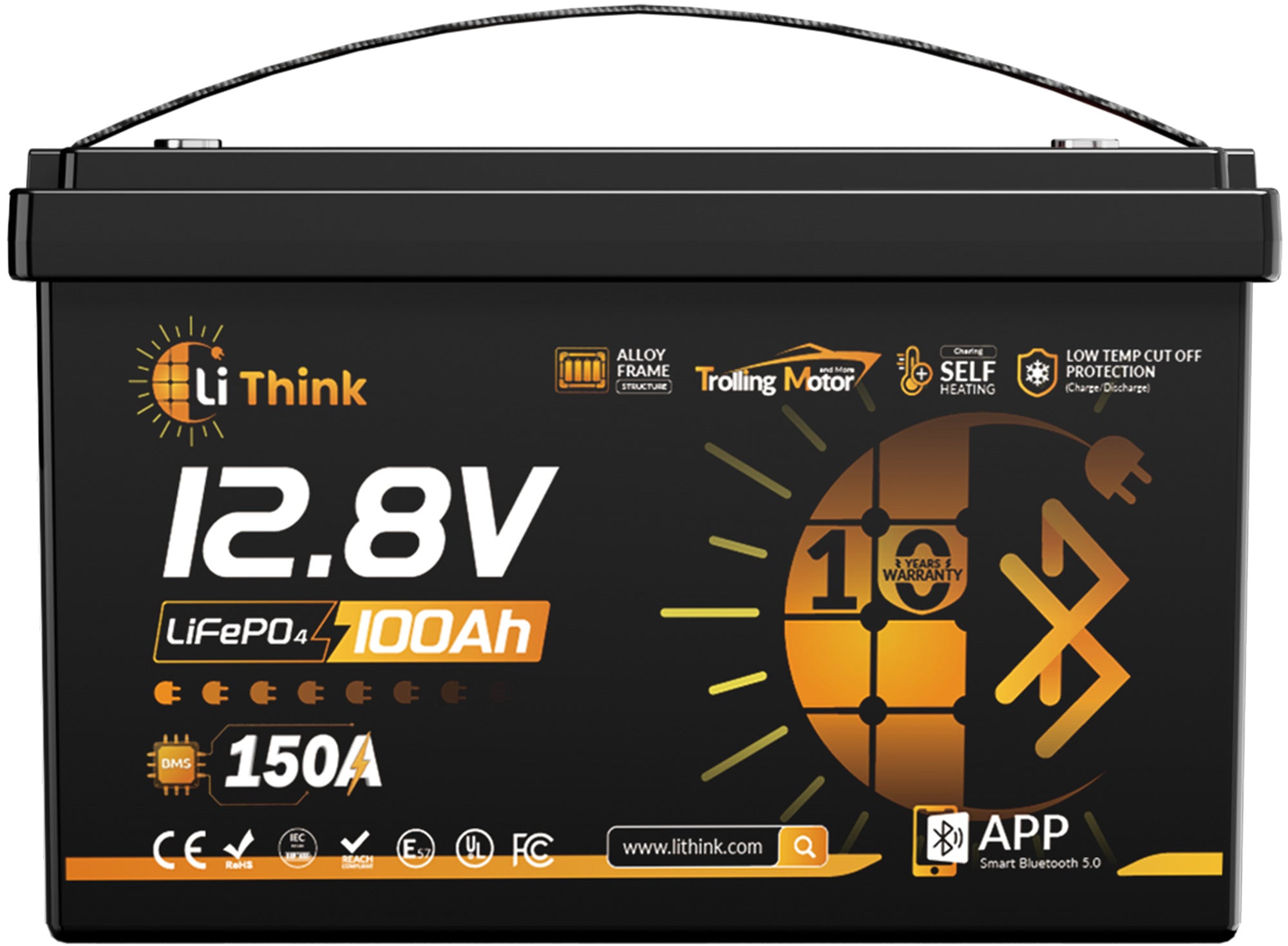

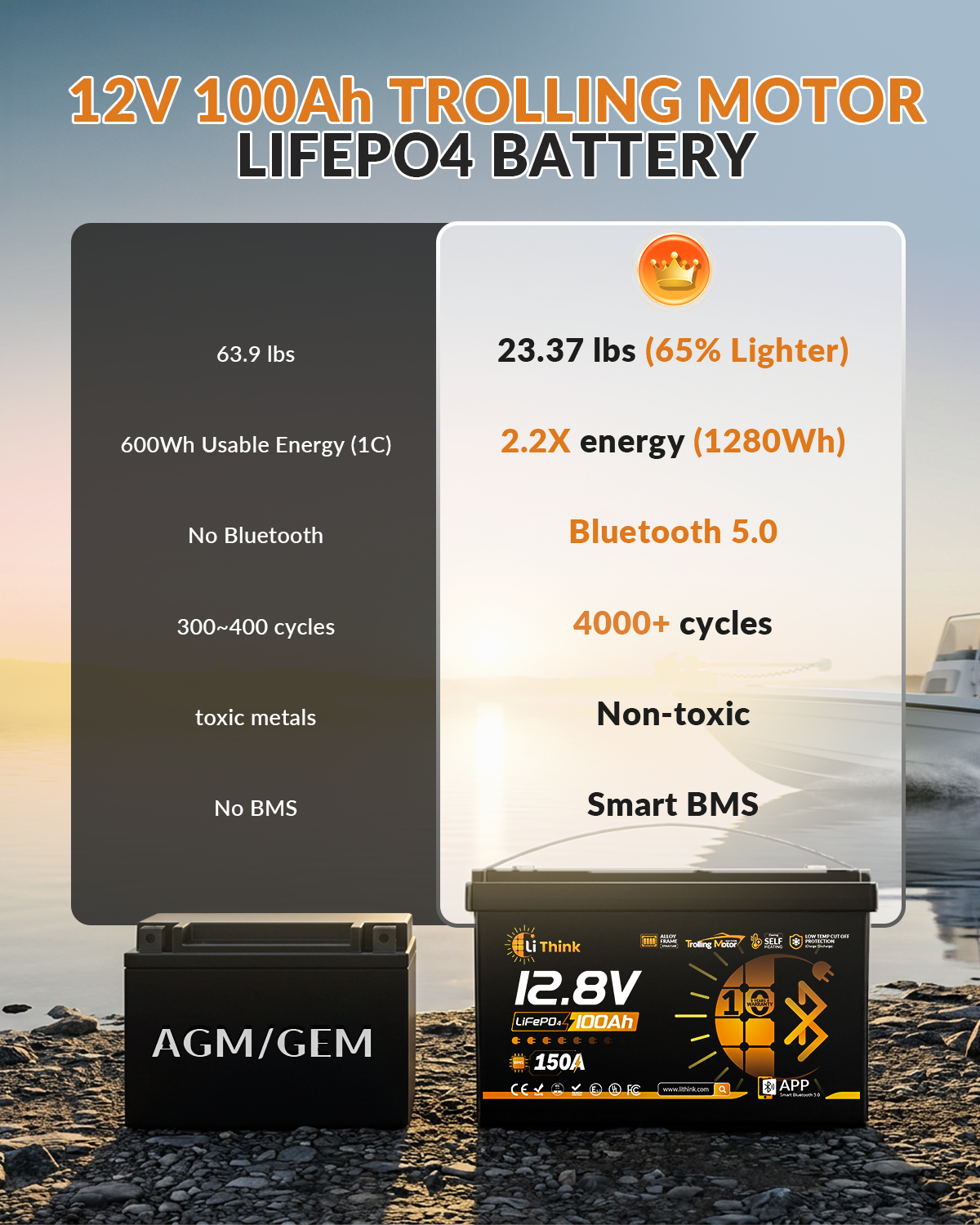

- Marine lithium upgrade: Rated at 12.8V 100Ah / 1280Wh, delivering stable LiFePO4 power with lighter weight and longer life than lead-acid trolling motor batteries.

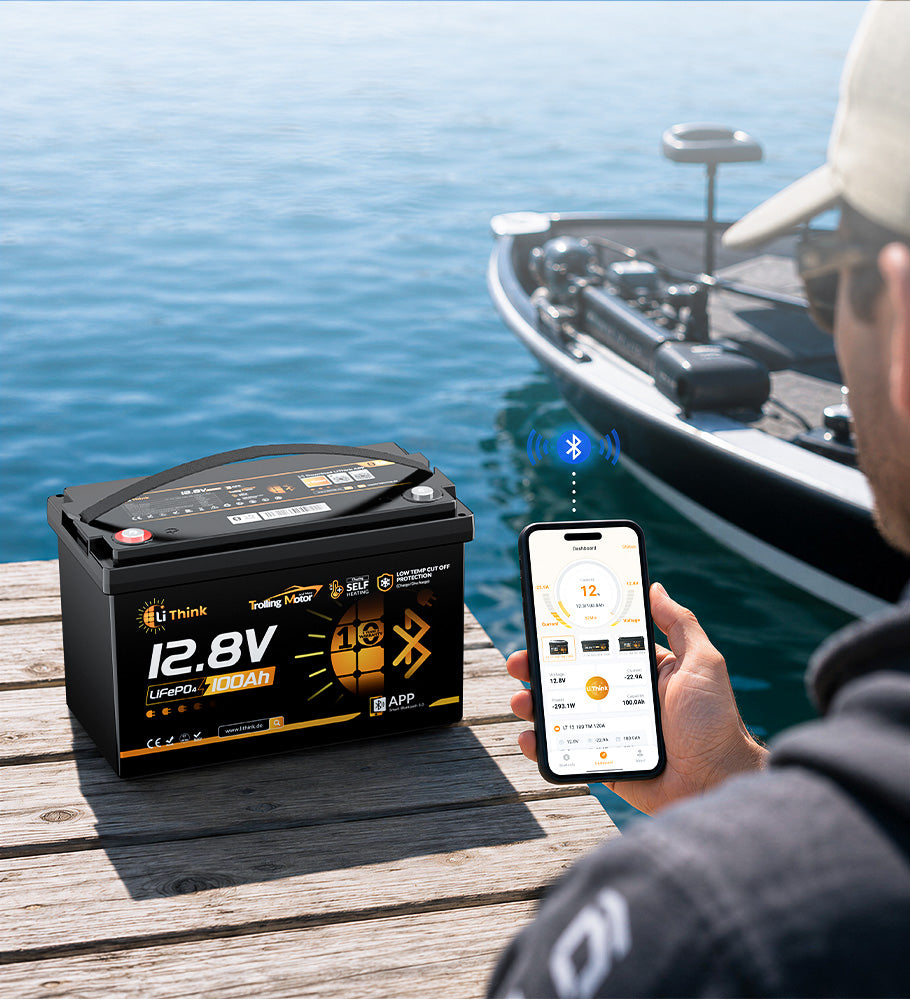

- Bluetooth smart monitoring: Check SOC, voltage, current, temperature, alerts, and charging/discharging status directly from the app.

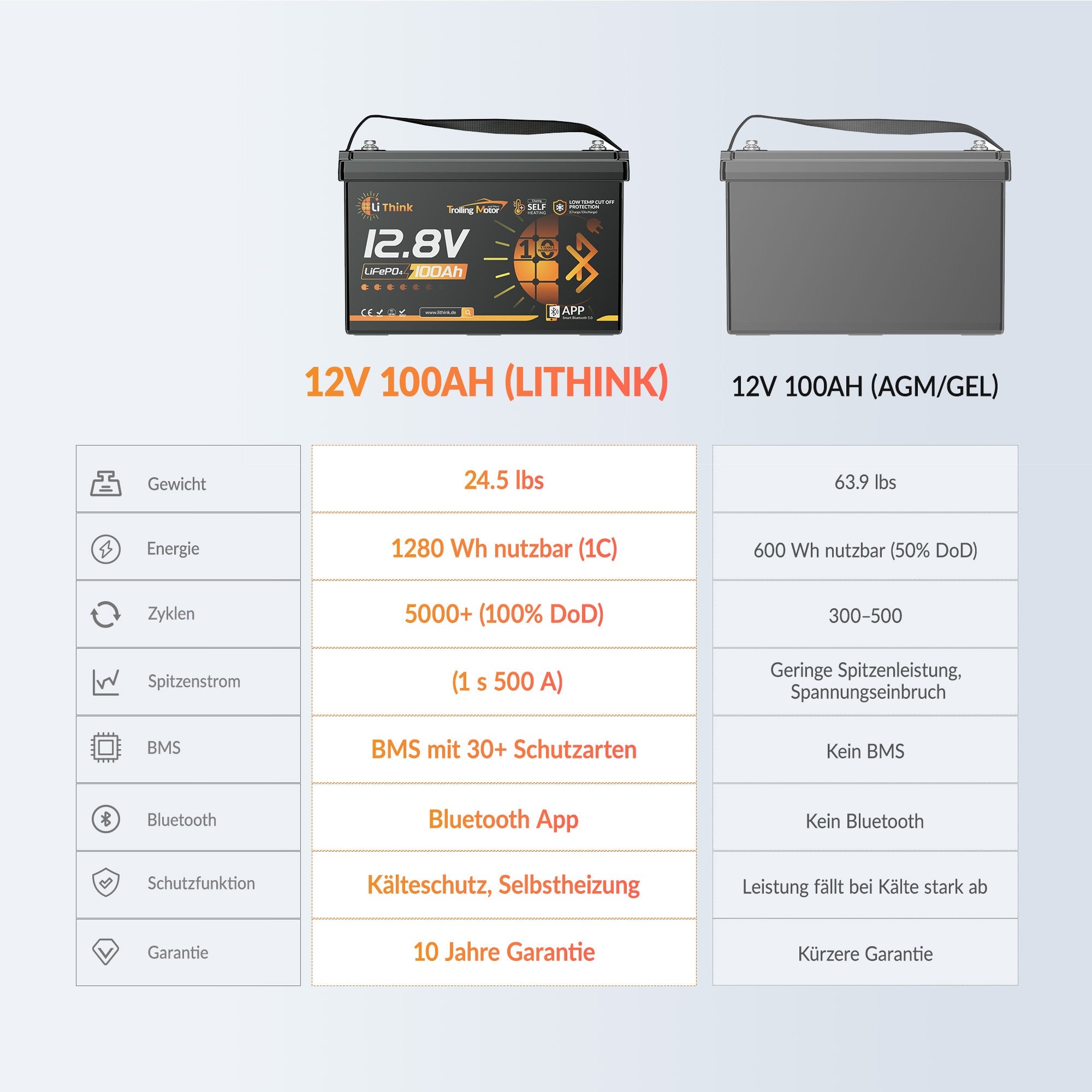

- Longer-lasting than lead-acid: Designed for 4,000+ cycles, helping reduce replacement frequency and long-term maintenance.

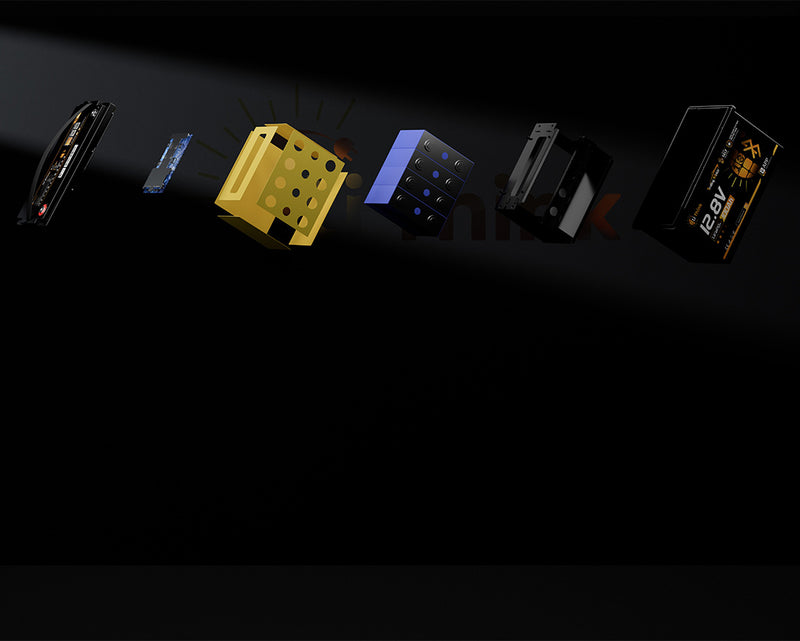

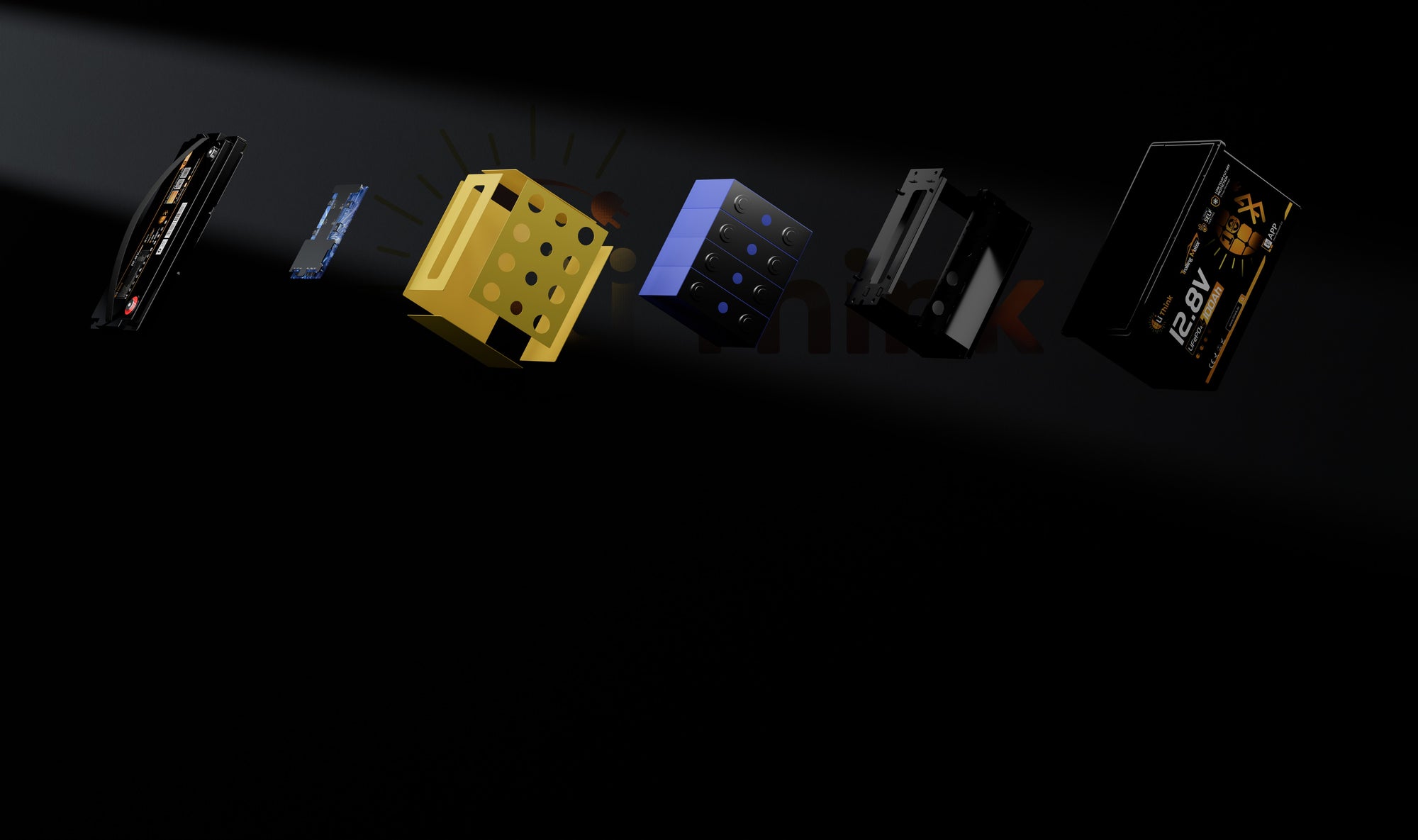

Internal Build & Safety

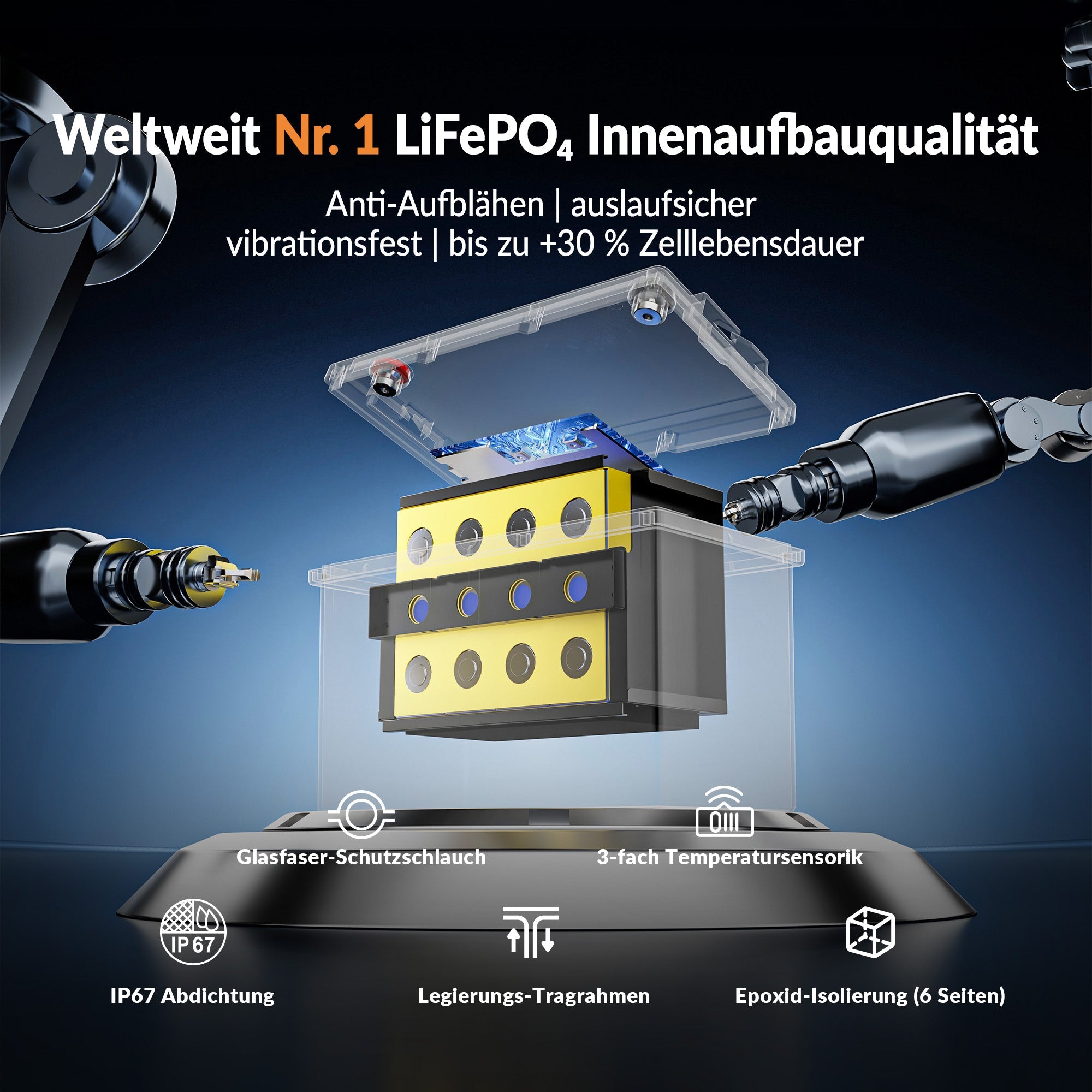

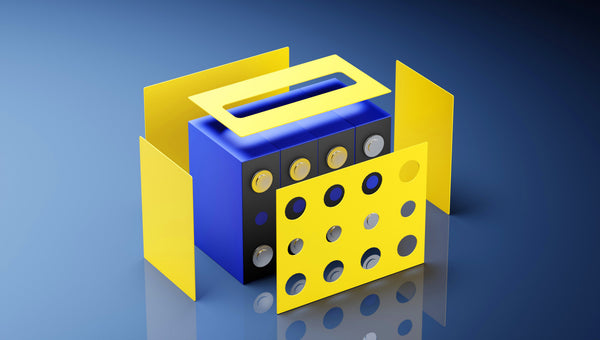

- Reinforced internal structure: Built with a high-strength alloy frame, fiberglass busbar sleeving, six-sided epoxy insulation plates, and screw-locking hardware to improve vibration resistance and long-term safety.
- Built for marine movement: Helps reduce risks from vibration, movement, abrasion, and electrical contact during fishing, boating, and trailer transport.

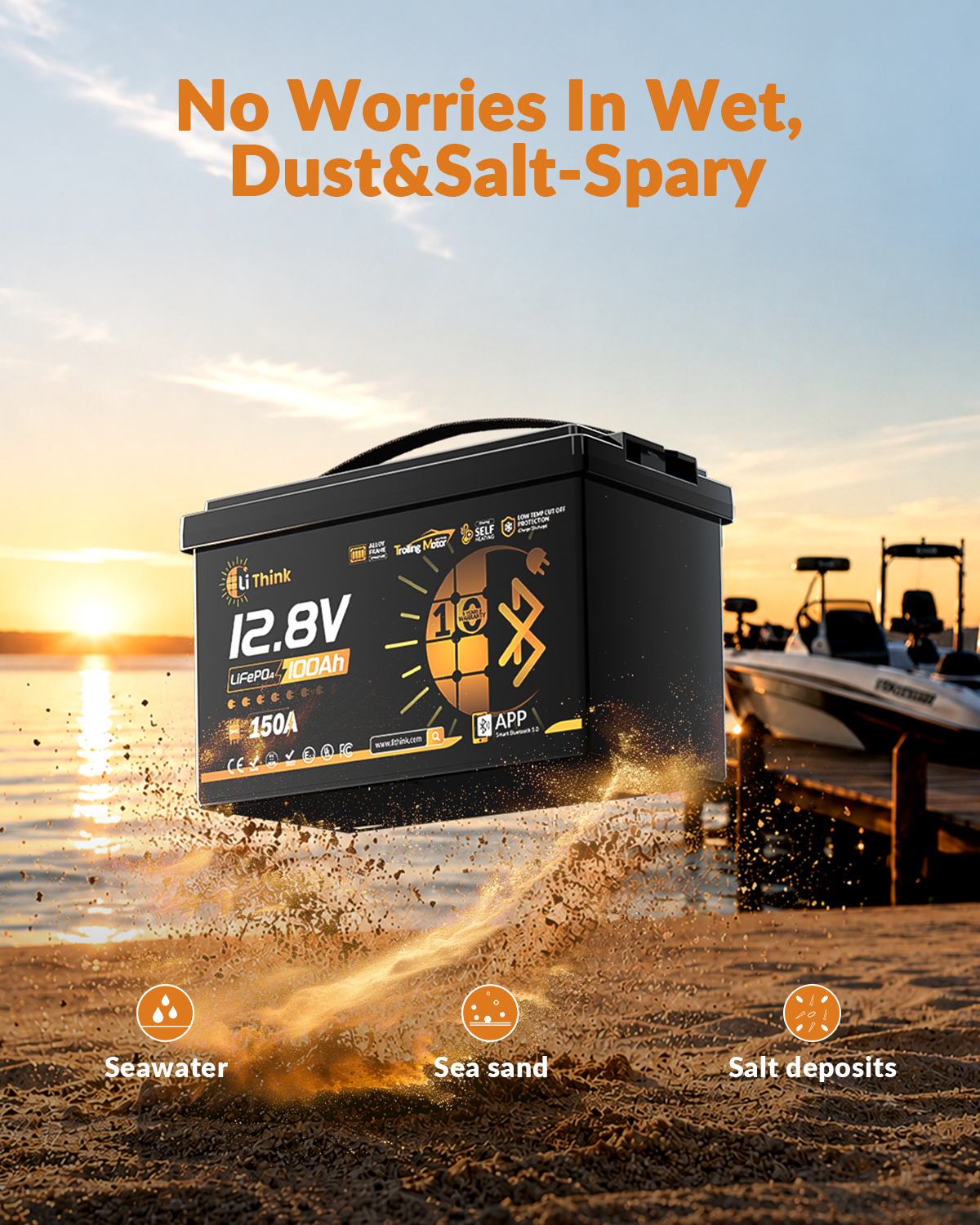

- IP67 protection: Sealed housing helps protect against dust and water exposure, making it suitable for trolling motor compartments and demanding marine environments.

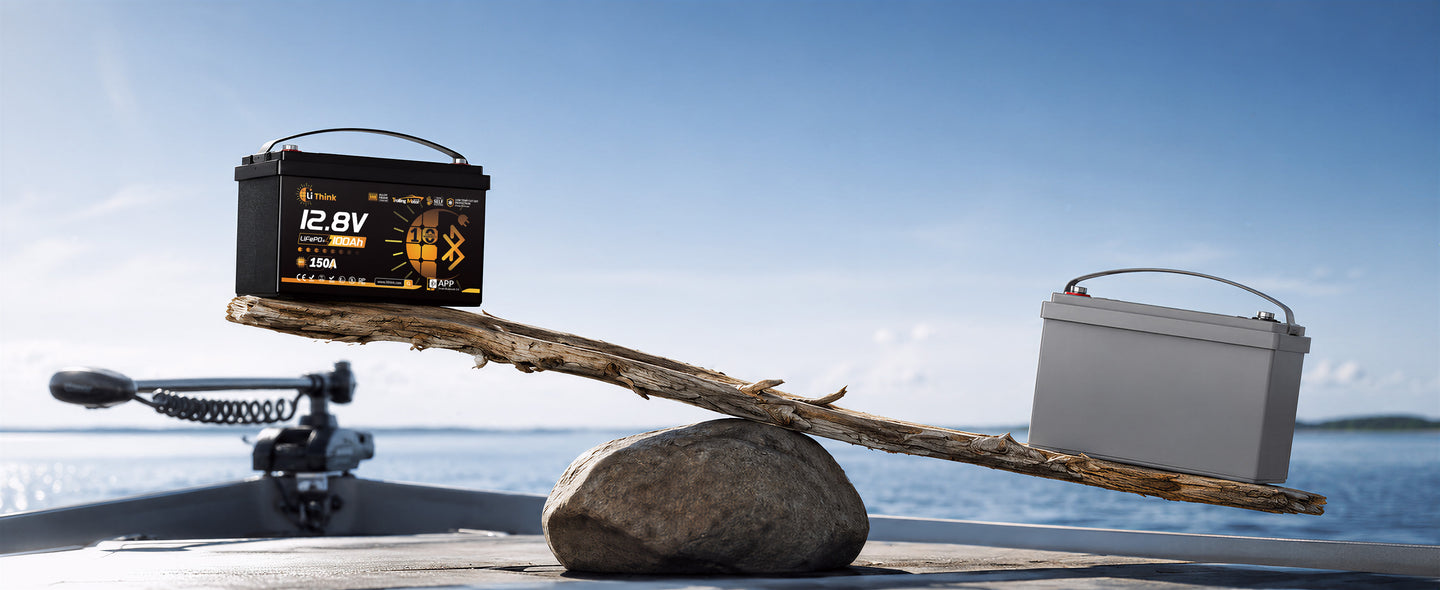

- Lightweight marine power: Approx. 10.6 kg / 23.4 lbs, making it easier to carry, install, and remove than traditional lead-acid batteries.

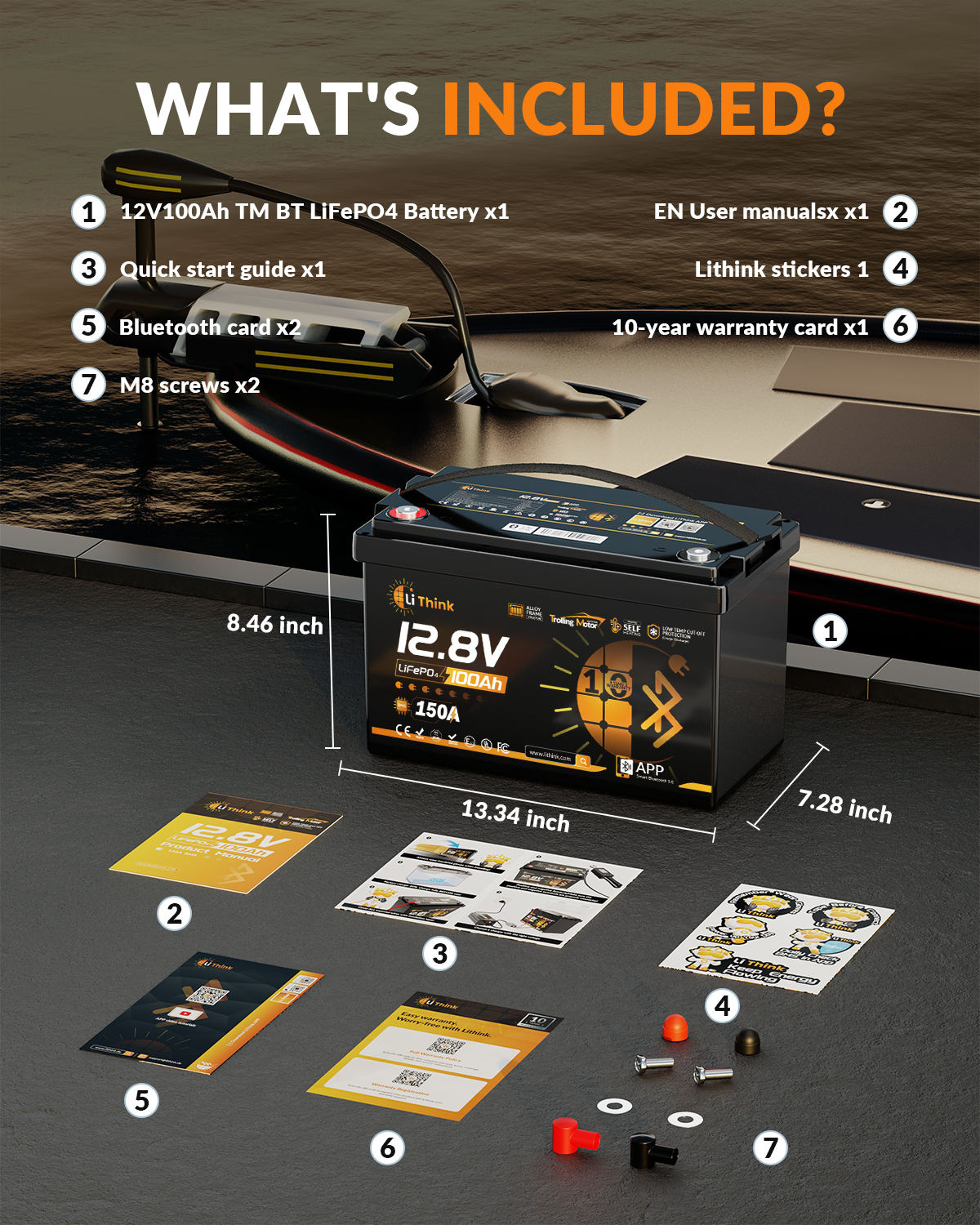

- Solid terminal hardware: M8 × 14 mm terminals with recommended tightening torque of 12 N·m; discharge cut-off voltage: 10.8V.
Power Output & Charging

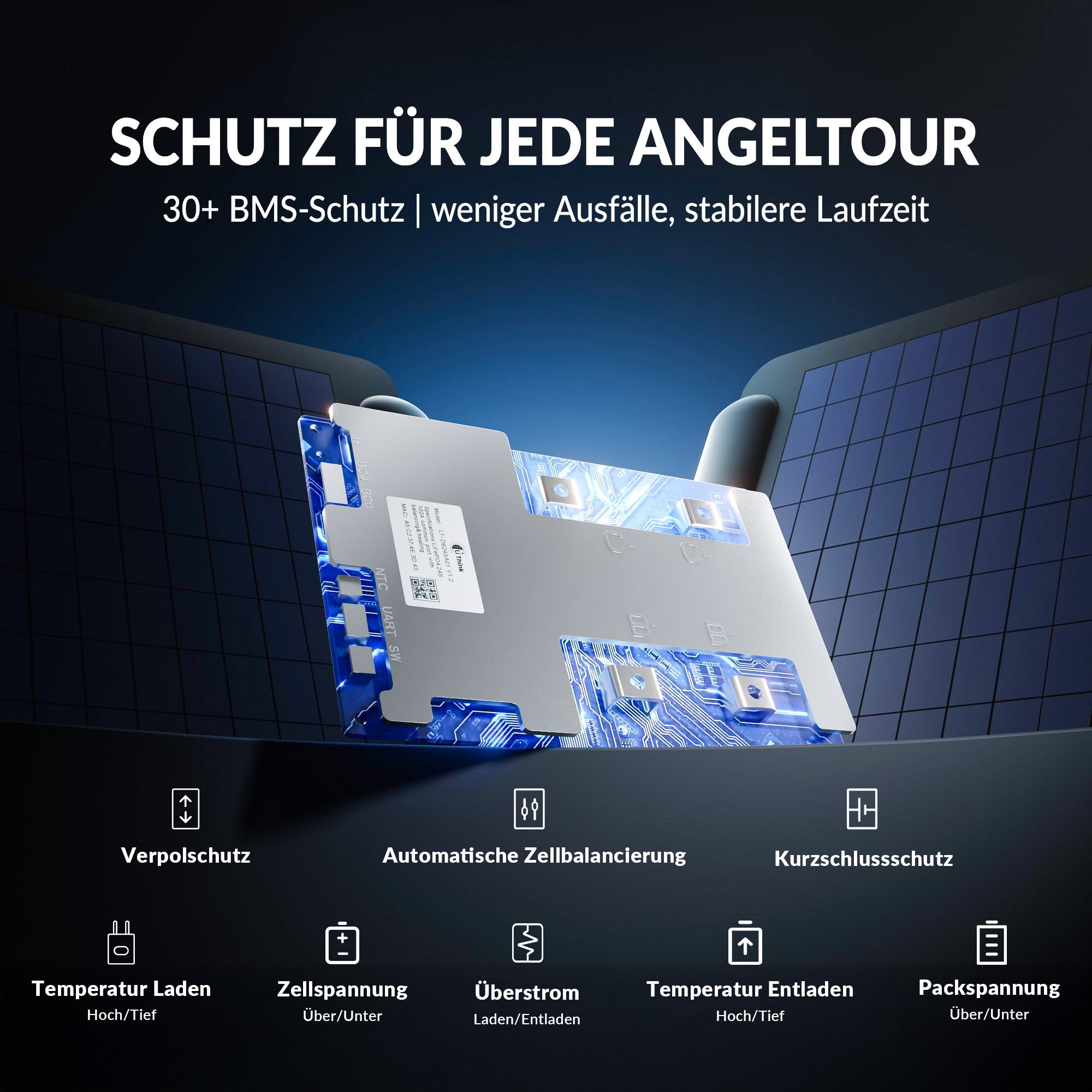

- 150A smart BMS: Provides intelligent protection against overcharge, over-discharge, overcurrent, short circuit, and temperature risks while supporting demanding 12V trolling motor use.
- Max. continuous discharge current: Up to 150A, giving trolling motor systems stronger current support for fishing and maneuvering.

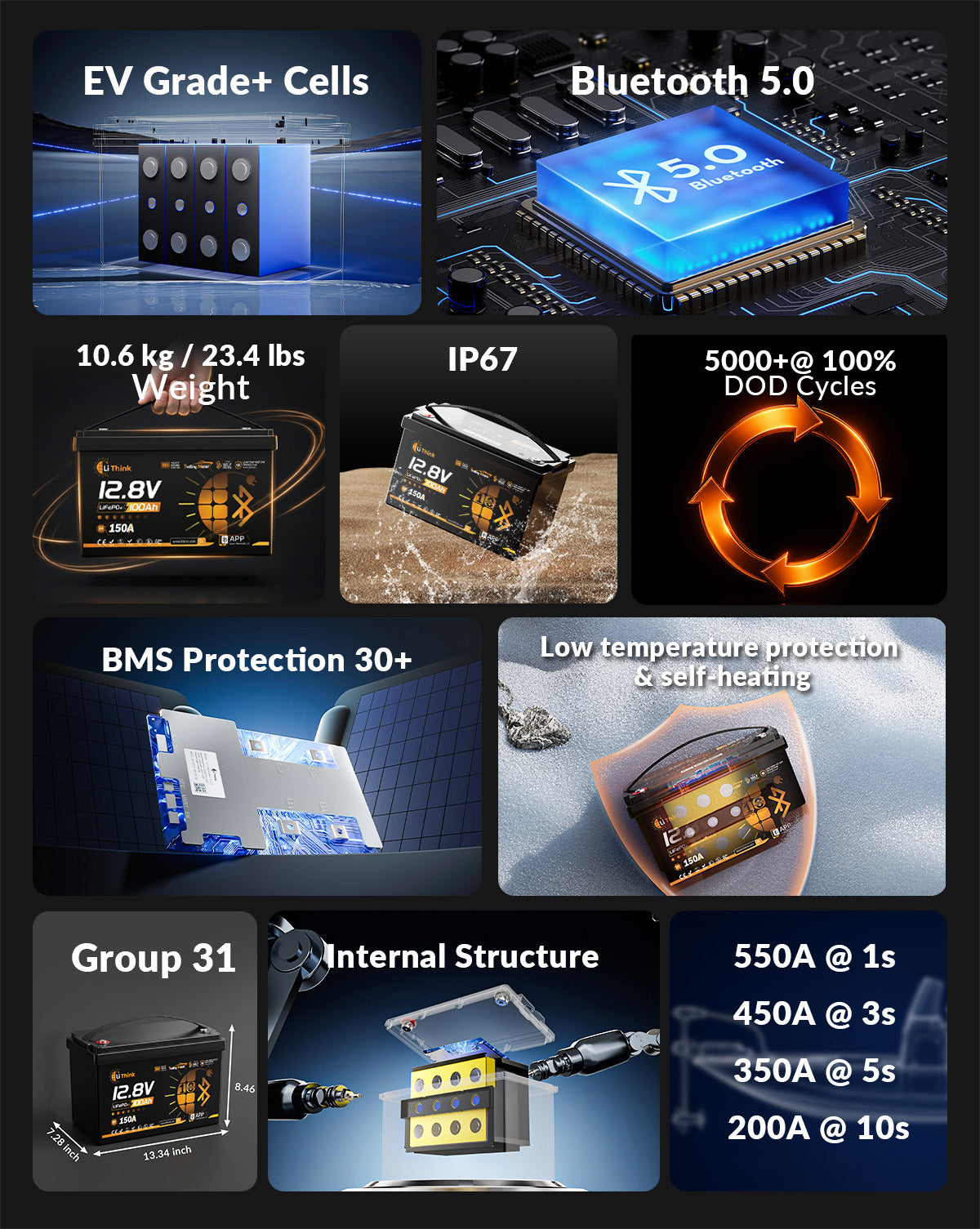

- Surge discharge support: 550A/1s, 450A/3s, 350A/5s, 200A/10s — built to support short motor start-up and pulsed load demands.
- Max. continuous output power: Up to 1920W, suitable for high-output 12V marine power setups.

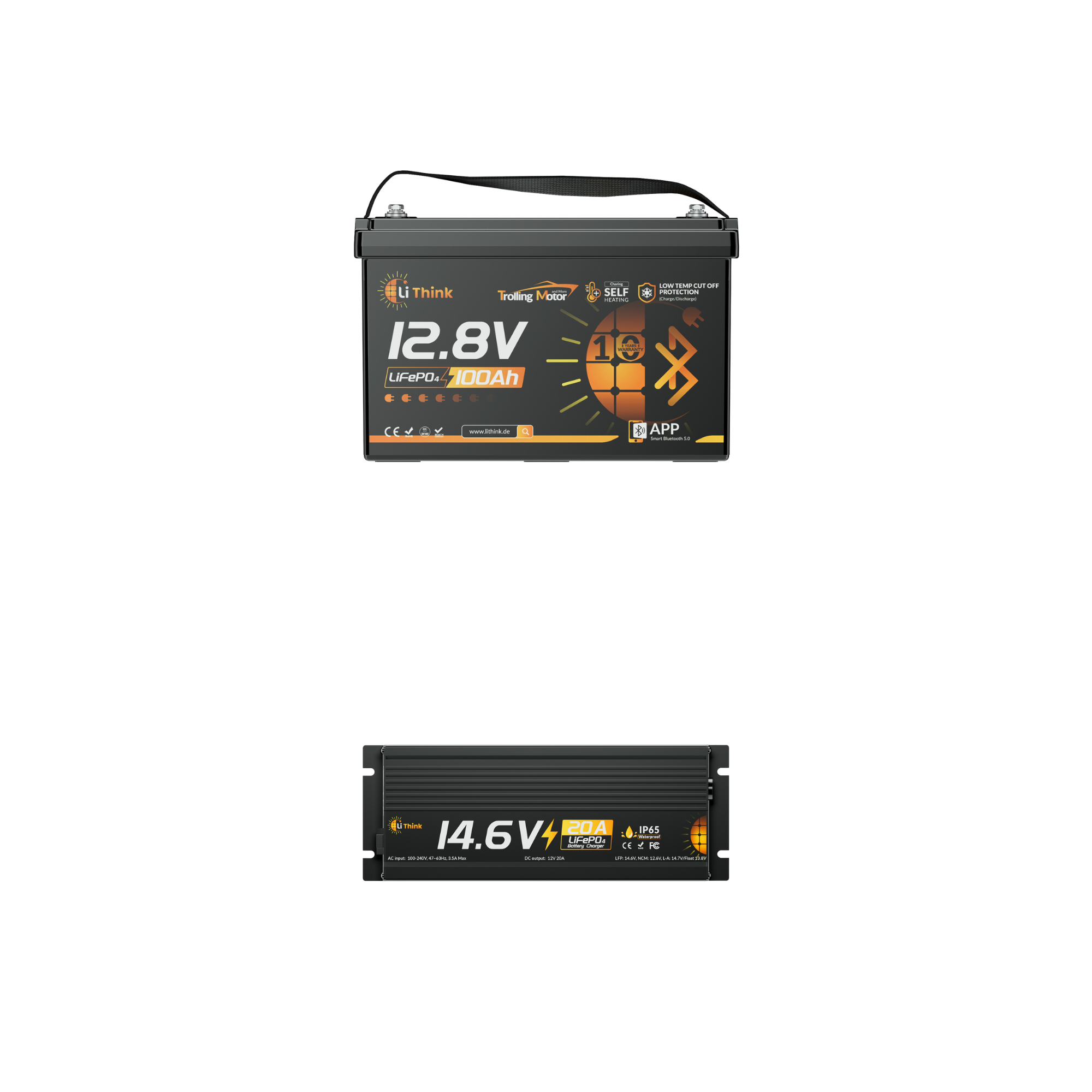

- Charging method: CC/CV charging with 14.6V charge voltage.
- Charging current: Recommended charging current 20A; max. continuous charging current 150A. Estimated charging time: 20A @ approx. 5 hours.

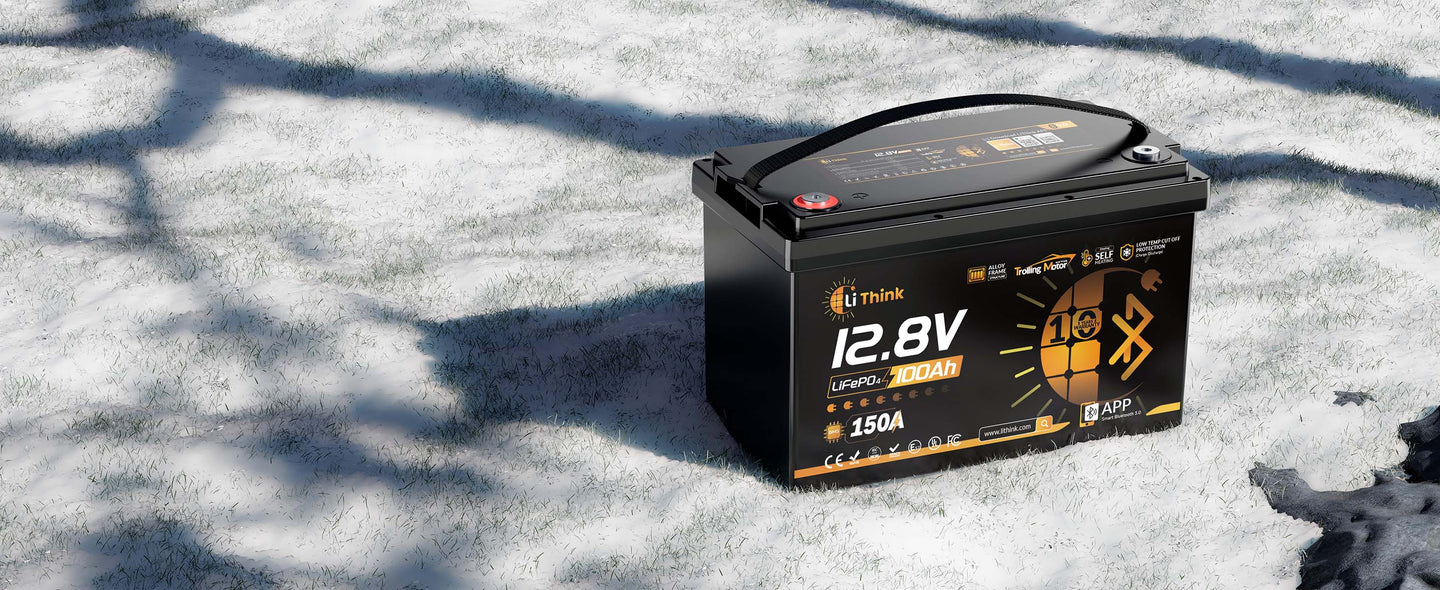

Cold-Weather Protection

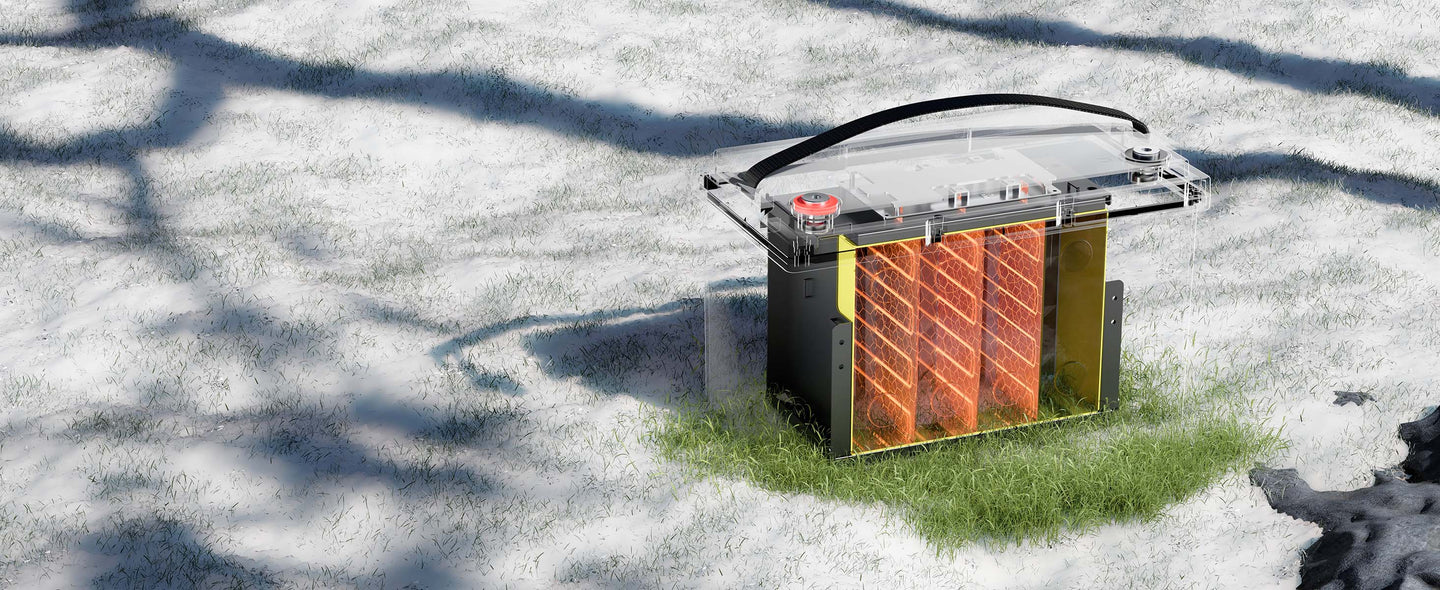

- Automatic self-heating: When charging in cold conditions, the built-in heating system helps warm the cells for safer winter charging. Minimum charging current required for heating: 10A.
- Low-temperature charging protection: Charging stops at 0°C / 32°F and resumes at 5°C / 41°F.
- Typical heating time: Approx. 70–90 minutes from -10°C / 14°F and 100–150 minutes from -20°C / -4°F at 8A heating current.

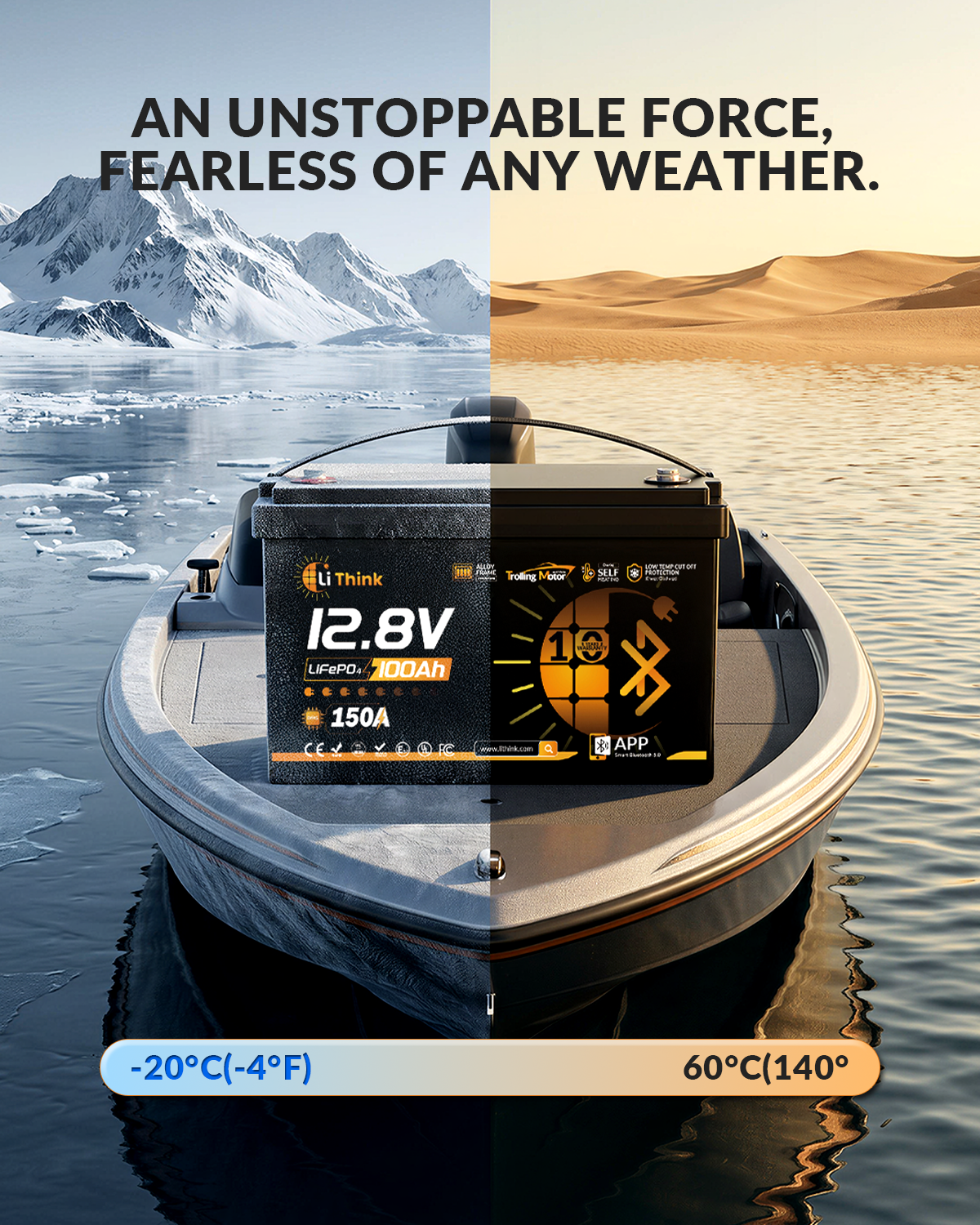

- Working temperature range: Charge 0°C to 50°C / 32°F to 122°F; discharge -20°C to 60°C / -4°F to 140°F.
Applications & Expansion

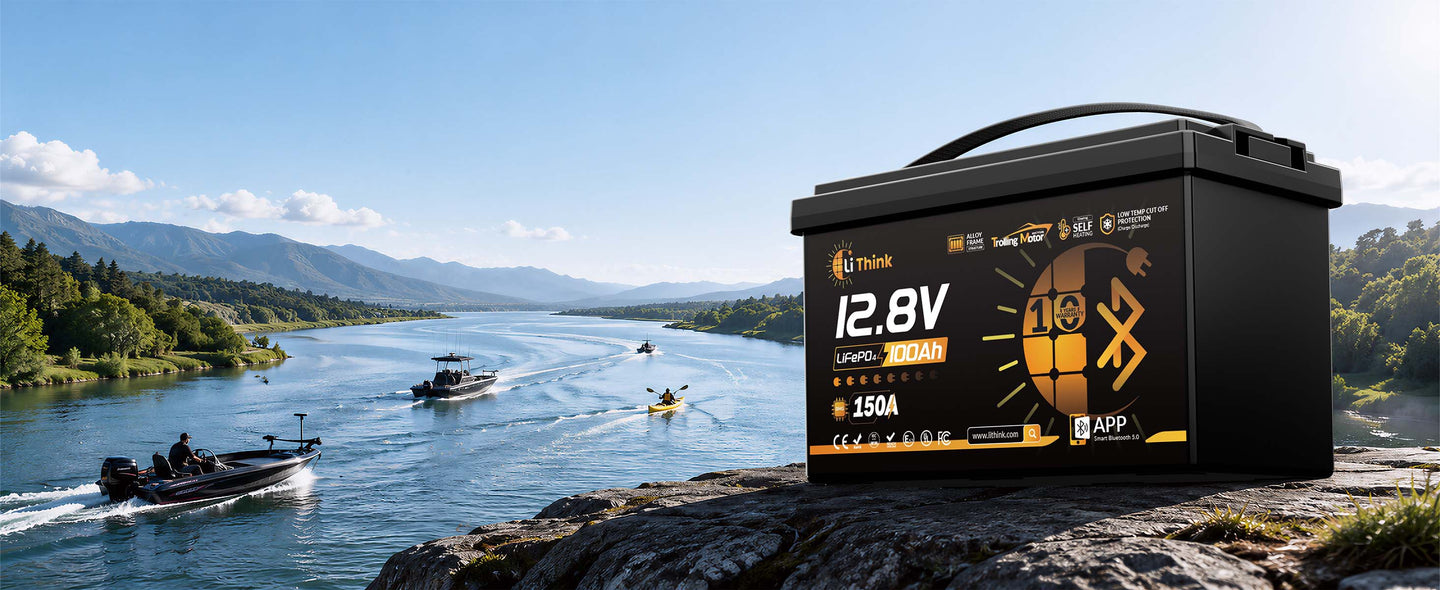

- Made for trolling motor use: A strong fit for 12V trolling motors, fishing boats, bass boats, kayaks, inflatable boats, and marine accessory power.
- Not for gasoline engine starting: This LiFePO4 battery is designed for trolling motors and onboard power systems, not as a starter battery for gasoline outboard engines.

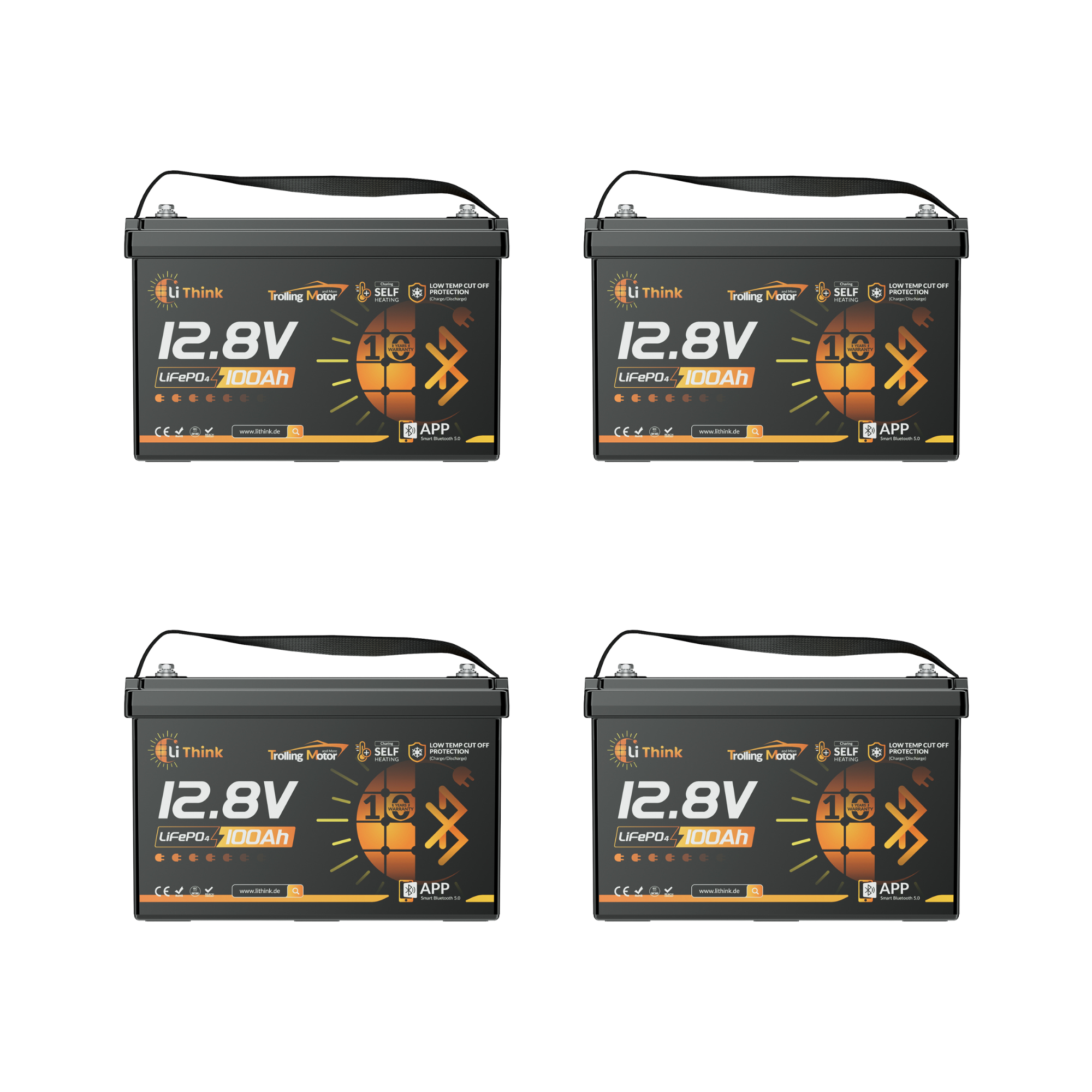

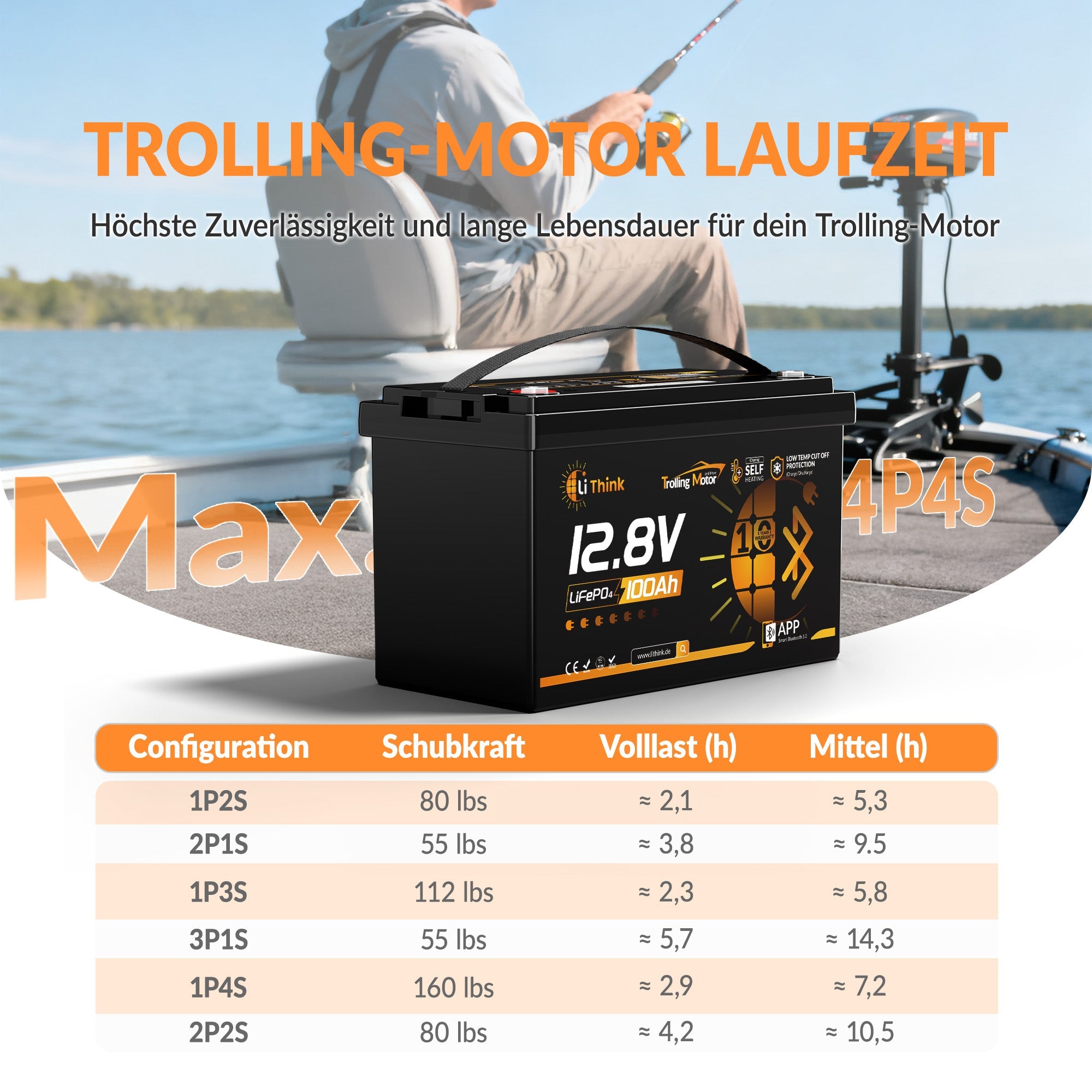

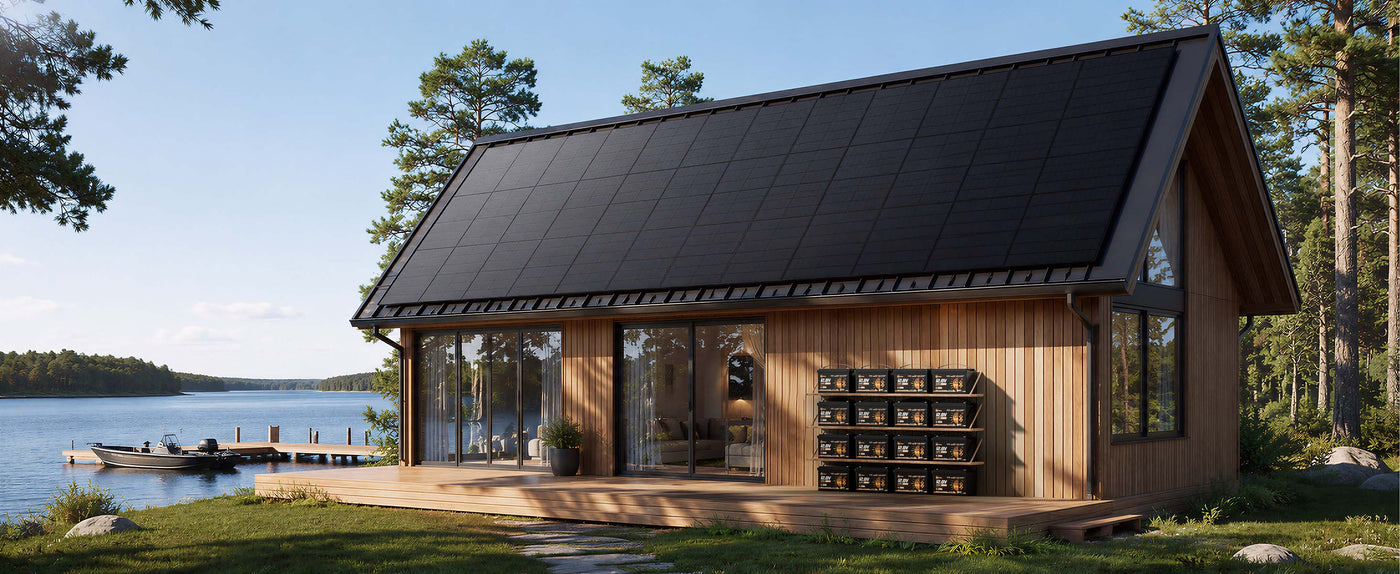

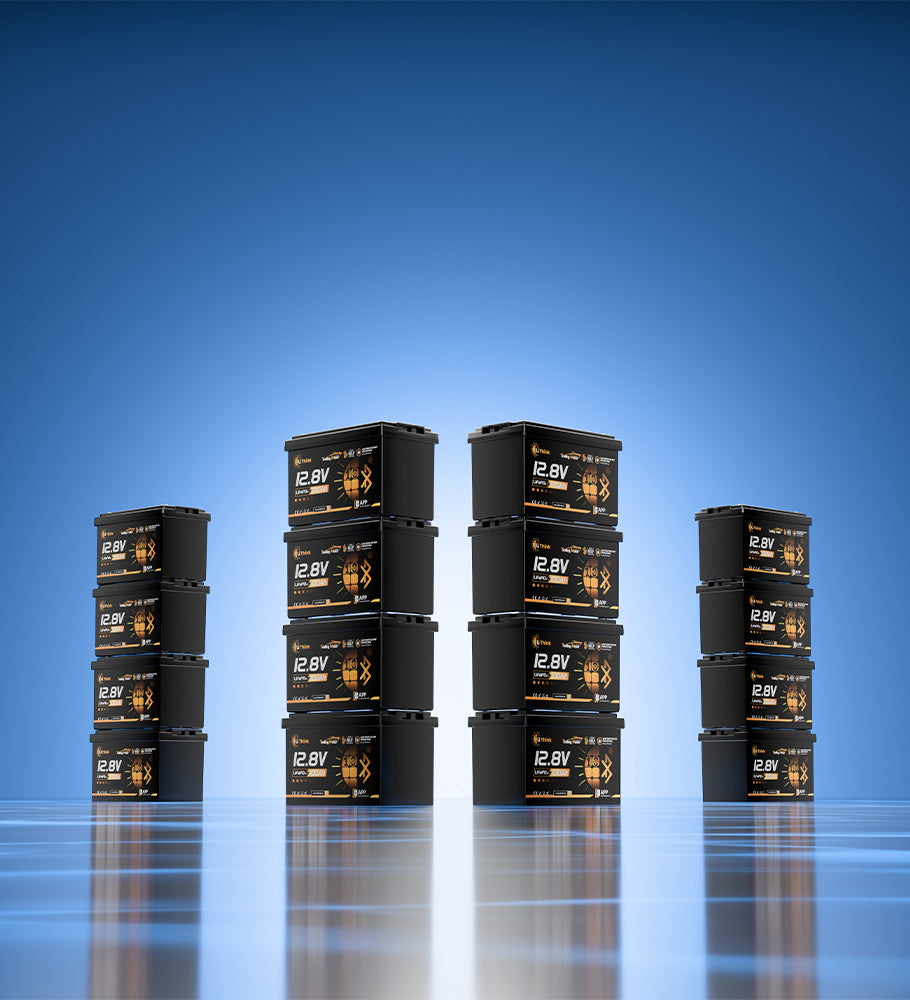

- Expandable up to 4P4S: Supports flexible system expansion for higher voltage, greater capacity, and more use cases across marine, RV, solar, and backup power systems.
